A = C profile can be integrated in the KMA!

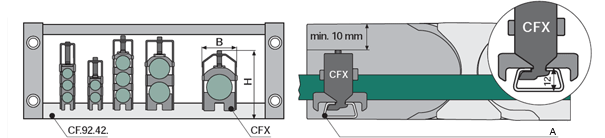

The dimension H in the tables is based on the use of the applicable max. nominal cable diameter. In thinner cables, different dimensions can arise. Tightening torque for CFX clamps 1.5 Nm
Dimension B = +2
Features of the igus® chainfix clamp pressure elements
