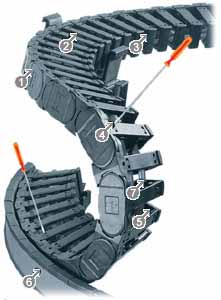

1. Circular motions possible up to 540° (with special mounting brackets)2. Modular structure - variable widths3. Dirt-resistant outer contour4. Crossbars snap-open on both sides5. Smooth inner contour6. New guide trough type 01 and guide trough type 02 (up to 360° movements) available from stock7. Interior separation possible
Samples and catalog order
E-Chain® Expert call
Service life calculation
Ask the product expert
Designing with igus®
Available with guide trough
Selection of the right twisterchain®
CAD trough guide configurator
Selection table for guide troughs

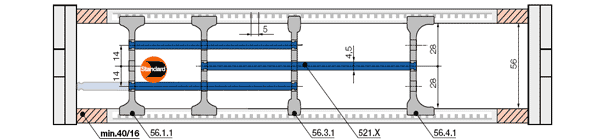

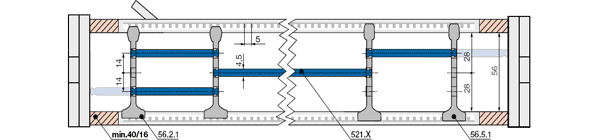

2. Intermediate shelves
Separators can be placed at any point along a chain's cross section. In the standard configuration, a separator is mounted at every second chain link. Please observe a lateral spacing of at least 16 mm for e-tubes!
For use with many cables of differing diameters.
e-chains® and e-tubes can be subdivided both vertically
