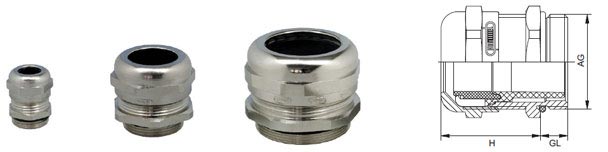

igus® Cable glands HSK-M
| material | Brass nickel-plated |
| Spline insert | PA |
| Shaped packing | NBR |
| O-Ring | NBR |
| Protection class | IP 68 – 10 bar / IP 69K
in specified clamping range |
| Continuous operating temperature | -40 °C – 100 °C |
| Order No. | Part No.
grey |
AG |
|
GL | H |
|
VPE | ||
|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | Piece | |||||
 MAT0179476 |
1.609.1200.50 | M12x1,5 | 3-6,5 | 6,5 | 19 | 14 | 5 | Upon request |  |
| MAT01712328 |
1.609.1200.51 | M12x1,5 | 2,0-5,0 | 6,5 | 19 | 14 | 5 | Upon request | |
| MAT0179477 |
1.609.1600.50 | M16x1,5 | 4,0-8,0 | 6 | 21 | 17/19 | 5 | Upon request | |
| MAT01712329 |
1.609.1600.51 | M16x1,5 | 2,0-6,0 | 6 | 21 | 17/19 | 5 | Upon request | |
| MAT01712330 |
1.609.1611.50 | M16x1,5 | 5,0-10,0 | 6 | 22 | 20 | 5 | Upon request | |
| MAT0179478 |
1.609.2000.50 | M20x1,5 | 6,0-12,0 | 6 | 23 | 22 | 5 | Upon request | |
| MAT01712331 |
1.609.2000.51 | M20x1,5 | 5,0-9,0 | 6 | 23 | 22 | 5 | Upon request | |
| MAT0179562 |
1.609.2016.50 | M20x1,5 | 10,0-14,0 | 6 | 24 | 24 | 5 | Upon request | |
| MAT0179479 |
1.609.2500.50 | M25x1,5 | 13,0-18,0 | 7 | 26 | 30 | 5 | Upon request | |
| MAT01711769 |
1.609.2500.51 | M25x1,5 | 9,0-16,0 | 7 | 26 | 30 | 5 | Upon request | |
| MAT0179480 |
1.609.3200.50 | M32x1,5 | 18,0-25,0 | 8 | 31 | 40 | 5 | Upon request | |
| MAT01712332 |
1.609.3200.51 | M32x1,5 | 13,0-20,0 | 8 | 31 | 40 | 5 | Upon request | |
| MAT0179481 |
1.609.4000.50 | M40x1,5 | 22,0-32,0 | 8 | 37 | 50 | 5 | Upon request | |
| MAT01712333 |
1.609.4000.51 | M40x1,5 | 20,0-26,0 | 8 | 37 | 50 | 5 | Upon request | |
| MAT0179482 |
1.609.5000.50 | M50x1,5 | 32,0-38,0 | 9 | 37 | 57 | 5 | Upon request | |
| MAT01712334 |
1.609.5000.51 | M50x1,5 | 25,0-31,0 | 9 | 37 | 57 | 5 | Upon request | |
| MAT0179483 |
1.609.6300.50 | M63x1,5 | 37,0-44,0 | 10 | 38 | 64/68 | 5 | Upon request | |
| MAT01712335 |
1.609.6300.51 | M63x1,5 | 29,0-35,0 | 10 | 38 | 64/68 | 5 | Upon request | |
| More about selected part: | |||||||||
Quote request
Price list
|
|||||||||
M-Counter nuts
| material | Brass nickel-plated |
| Order No. | Part No.
grey |
IG | H |
|
VPE | ||
|---|---|---|---|---|---|---|---|
| [mm] | [mm] | Piece | |||||
| MAT0179484 |
1.161.1200.50 | M12x1,5 | 2,8 | 15 | 5 | Upon request | |
| MAT0179485 |
1.161.1600.50 | M16x1,5 | 2,8 | 19 | 5 | Upon request | |
| MAT0179486 |
1.161.2000.50 | M20x1,5 | 3 | 23 | 5 | Upon request | |
| MAT0179487 |
1.161.2500.50 | M25x1,5 | 3,5 | 29 | 5 | Upon request | |
| MAT0179488 |
1.161.3200.50 | M32x1,5 | 4 | 36 | 5 | Upon request | |
| MAT0179489 |
1.161.4000.50 | M40x1,5 | 4,5 | 45 | 5 | Upon request | |
| MAT0179490 |
1.161.5000.50 | M50x1,5 | 5,5 | 55 | 5 | Upon request | |
| MAT0179491 |
1.161.6300.50 | M63x1,5 | 6 | 70 | 5 | Upon request | |
| More about selected part: | |||||||
|
Quote request
Price list
|
|||||||
Cable diameters in mm
