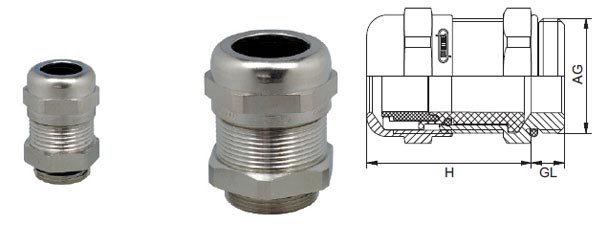

igus® Cable glands HSK-M-EMV
| material | Brass nickel-plated |
| Spline insert | Metal coated PA |
| Shaped packing | NBR |
| O-Ring | NBR |
| Protection class | IP 68 – 10 bar / IP 69K
in specified clamping range |
| Continuous operating temperature | -40 °C – 100 °C |
| Order No. | Part No.
grey |
AG |
|
GL | H |
|
VPE | ||
|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | Piece | |||||
 MAT0179524 |
1.631.1200.50 | M12x1,5 | 3,0-6,5 | 6,5 | 25 | 14 | 5 | Upon request |  |
| MAT0179525 |
1.631.1600.50 | M16x1,5 | 5,0-10,0 | 6 | 32 | 20 | 5 | Upon request | |
| MAT0179526 |
1.631.2000.50 | M20x1,5 | 10,0-14,0 | 6 | 33 | 24 | 5 | Upon request | |
| MAT0179527 |
1.631.2500.50 | M25x1,5 | 13,0-18,0 | 7 | 39 | 30 | 5 | Upon request | |
| MAT0179528 |
1.631.3200.50 | M32x1,5 | 18,0-25,0 | 8 | 45 | 40 | 5 | Upon request | |
| MAT0179529 |
1.631.4000.50 | M40x1,5 | 24,0-32,0 | 8 | 51 | 50 | 5 | Upon request | |
| MAT0179530 |
1.631.5000.50 | M50x1,5 | 32,0-38,0 | 9 | 57,5 | 57 | 5 | Upon request | |
| MAT0179531 |
1.631.6300.50 | M63x1,5 | 37,0-44,0 | 10 | 52 | 64/68 | 5 | Upon request | |
| More about selected part: | |||||||||
Quote request
Price list
|
|||||||||
EMV-Counter nuts
| material | Brass nickel-plated |
| Order No. | Part No.
grey |
IG | H |
|
S | VPE | ||
|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | Piece | |||||
| MAT0179516 |
1.167.1200.50 | M12x1,5 | 2,8 | 15 | 0,7 | 5 | Upon request | |
| MAT0179517 |
1.167.1600.50 | M16x1,5 | 2,8 | 19 | 0,7 | 5 | Upon request | |
| MAT0179518 |
1.167.2000.50 | M20x1,5 | 3 | 24 | 0,7 | 5 | Upon request | |
| MAT0179519 |
1.167.2500.50 | M25x,15 | 3,5 | 30 | 0,7 | 5 | Upon request | |
| MAT0179520 |
1.167.3200.50 | M32x1,5 | 4,5 | 36 | 0,7 | 5 | Upon request | |
| MAT0179521 |
1.167.4000.50 | M40x1,5 | 5 | 46 | 0,7 | 5 | Upon request | |
| MAT0179522 |
1.167.5000.50 | M50x1,5 | 5 | 60 | 0,7 | 5 | Upon request | |
| MAT0179523 |
1.167.6300.50 | M63x1,5 | 6 | 70 | 0,7 | 5 | Upon request | |
| More about selected part: | ||||||||
|
Quote request
Price list
|
||||||||

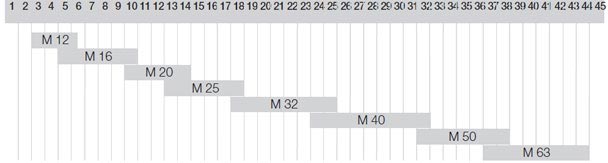

Cable diameters in mm
