DryLin® Q Torque resistant square guide

Square profile DryLin® Q with tanden flange QJFMT-02-25

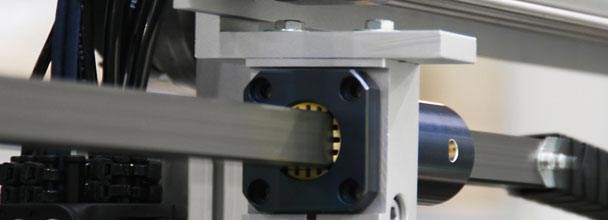

DryLin® Q is the new torque resistant linear slide for the spacesaving handling of small parts. Four rather eight liners made of iglidur® J run on a hard anodised aluminium tube (20 x 20 mm). The inside of the tube can be used for the energy supply. Mounting brackets for Energy Chains® are delivered on request. This unit is light weight, compact and 100% lubrication-free.

Torque resistant without 2nd guidance

Tolerates moments up to 10 Nm

Space saving and low weight

Cable guidance possible in tube

Unsupported installation

Lubricant free



Industries: Automation, handling, robotics




Four different flange bearings and housings are available for DryLin® Q ex stock.

DryLin® Q rail profile
Part No. weight per m q qi
    [mm] [mm]
 AWMQ-20 0,46 20 15 Upon request
More about selected part:
3D-CAD Experts Quote request Price list
DryLin® Q pillow block
Part No. Weight A H H1 dQ Qa Qi E1 E2 d L
  [kg] [mm] ±0,02 [mm] [mm] [mm] [mm] [mm] ±0,15 [mm] ±0,15 [mm] [mm] [mm]
 QJRMT-05-20 0,55 62 27 54 25 20 15 48 55 28 85 Upon request
 QJRM-05-20 0,25 62 27 54 25 20 15 48 55 28 40 Upon request
More about selected part:
3D-CAD Experts Quote request Price list
DryLin® Q flange bearing
Part No. Weight k d2
h7 		Bf d Qa Qi d3 dt d B
  [kg] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
 QJFMT-02-20 0,24 50 40 11 25 20 15 62 51 28 112 Upon request
 QJFM-02-20 0,14 50 40 11 25 20 15 62 51 28 58 Upon request
More about selected part:
3D-CAD Experts Quote request Price list
