DryLin® SET - EasyTube

Linear unit for easy adjustment functions

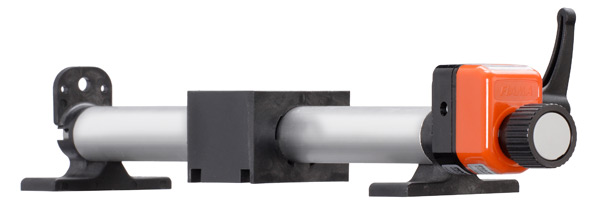

EasyTube linear unit for easy adjustment functions

The new linear unit for easy adjustment functions is characterized by a simple but effective and solid structure. A complete system is modulated from few components. The outer anodized aluminum tube guides the carriage/s and at the same time protects the trapezoidal threaded spindle and leadscrew nut from external influences. Carriage, torque support and trapezoidal leadscrew nut in one cast and are made of a special plain bearing high-performance polymer. It guarantees freedom from lubrication with simultaneously low coefficient of friction and optimal wear pattern. The iglidur® bearing materials are also used in the axial bearings of the spindle. Easy Tube is optionally available as stainless steel version or in anodized aluminum.

DryLin® SET EasyTube linear unit

1

Trapezoidal leadscrew nut and carriage made of plain bearing polymer

2

Guide tube made of anodized aluminum (standard) or stainless steel

3

Radial and axial bearing made of plain bearing polymer

4

Hand wheel

5

Stainless steel clamping ring

6

Polymer spindle housing

7

Trapezoidal threaded spindle made of steel

Advantages:

Absolutely lubricant-free

Corrosion-free version with stainless leadscrew

Low weight due to aluminium and plastics

Tapered off spindle ends enable operation by hand wheel or motor

Temperature resistance up to 80 °C

Extensive accessories

Simple, smooth design according to specifications of our customers

Delivery program:

3 installation sizes, diameters 12, 25, 30 mm

Radial or axial connection

Guide pipe made of hard-coated aluminum or stainless steel (e.g. 25)

Additional information
EasyTube - stainless steel. The DryLin® EasyTube is also available as stainless steel option.

EasyTube

Part No.:
A [mm]:

Ordering of a complete system

Configuration in few steps:

1. Selection of the installation size
2. Selection of the stroke length in mm
3. Selection of the accessory parts

Hint:

Detailed information can be found below in the drawings and tables as well as in the below mentioned pages.

Step 1Configuration: DryLin® SET - complete system

Select the installation size of the spindle-lift table.

Installation size:

12 = shaft Ø 12 mm
25 = shaft Ø 25 mm
30 = shaft Ø 30 mm
Continue
DryLin® SHT - Design and assessment
DryLin® SHT - Spindle clamp
DryLin® SHT - Cursor
DryLin® SHT - Adjusting knob

* Connecting dimensions for flange version for axial connection between 2 machine side plates.
Suffix "F"

Also available as flange version (for axial connection)


Lengths [mm] and weights
Part No. Max. stroke length Aluminum shaft Max. static load capacity Unit price for
    Weight shaft end
supports
and carriage		 Additional
(per 100 mm)		 Axial Radial Base stroke
100 mm
[mm] [kg] [kg] [N] [N]
 SET-12-AWM (1) 200 0,05 0,03 10 20 Upon request
 SET-25-AWM (1) 750 0,15 0,12 150 300 Upon request
 SET-30-AWM (1) 850 0,2 0,21 200 400 Upon request
More about selected part:
3D-CAD Sample request Experts Quote request Price list
(1) Tapered off spindle end
Dimensions [mm]
Order no. A Al H E1 E2 E3 E4 l h h1 lt ts s sb l2 d2
 SET-12-AWM (1) 30 30 23,5 20 20 20 - 60 22 - 15 3,3 4,2 - 10 M4
 SET-25-AWM (1) 60 55 44 40 40 40 20 115 39 45 30 5,2 5,2 M4 17 TRx10x2
 SET-30-AWM (1) 80 55 49 60 40 40 20 125 39 50 35 6,5 5,2 M4 20 TRx12x3
More about selected part:
3D-CAD Sample request Experts Quote request Price list
(1) Tapered off spindle end
Dimensions [mm] - flange version
Order no. A2 A3 H E1 E2 E3 E5 l h lt ts s l2 d2 Individual price for base stroke 100 mm
 SET-25-AWM-F (1) 60 60 49 40 40 40 40 117 39 30 5,2 5,2 27 TRx10x2 Upon request
 SET-30-AWM-F (1) 80 60 59 60 40 40 40 125 39 35 6,5 5,2 30 TRx12x3 Upon request
More about selected part:
3D-CAD Sample request Experts Quote request Price list
(1) Tapered off spindle end
