igubal® spherical bearing KGLI, inch

Special properties:

Inch version

Compensation of misalignments

Compensation of edge loads

corrosion resistance

High dampening qualities

Excellent vibration dampening

Suitable for rotary, oscillating and axial movements

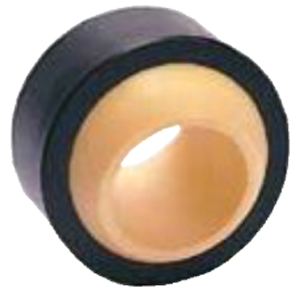

Spherical bearing KGLI


Part No.:
d1 [inch]:

Load data and dimensions [inch]

Order no.	Maximum static pressure load		Maximum tightening torque	d1 E10	d2	B	C	Max. tilt
	Radial	Axial	By the spherical ball					angle
	[N]	[N]	[Nm]	[Inch]	[Inch]	[Inch]	[Inch]
KGLI-03	1000	150	5	0,1900	0,5625	0,312	0,218	34°	Upon request
KGLI-04	1500	250	10	0,2500	0,6562	0,375	0,25	30°	Upon request
KGLI-05	2000	350	12	0,3125	0,7500	0,437	0,281	29°	Upon request
KGLI-06	2800	400	20	0,3750	0,8125	0,5	0,312	25°	Upon request
KGLI-07	3750	450	30	0,4375	0,9375	0,562	0,343	25°	Upon request
KGLI-08	4250	500	35	0,5000	1,0625	0,625	0,39	25°	Upon request
KGLI-10	5300	750	40	0,6250	1,1875	0,75	0,5	23°	Upon request
KGLI-12	8500	850	55	0,7500	1,4375	0,875	0,593	23°	Upon request
KGLI-16	13600	2500	65	1,0000	2,1250	1,375	1,005	23°	Upon request
