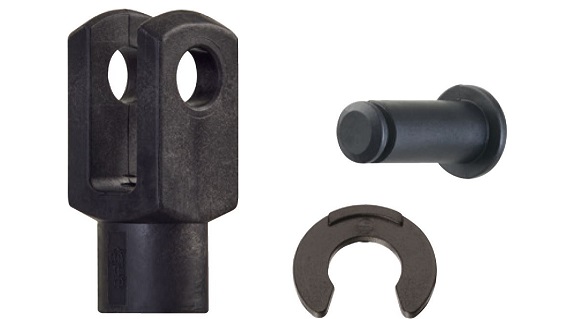

igubal® clevis joint, mm
With and without pin and circlip
 |
|
igubal® clevis joints
Most important features:
Very low weight
Absolute corrosion resistance
High tensile strength
Combinable with rod end bearings of the dimensional series E
Vibration dampening
Noise dampening
Available for left-hand and right-hand threads
igubal® clevis joints are solid polymer made of igumid G according to DIN 71752, which can be combined with the rod end bearings of the dimensional series E as counterpiece.
They consist of clevis joint, pin and circlip, or alternatively with spring loaded pin.
igubal® clevis joints with spring loaded pins, mm
Combinable with rod end bearings of the dimensional series E
igubal® clevis joint combination, mm
Complete knee joints consisting of clevis joint and rod end bearing
igubal® spring loaded pin, mm
Combinable with clevis joints of the dimensional series E
