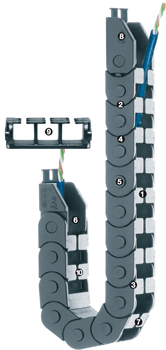

1. Very easy to fill 2. Very small pitch for quiet, smooth running 3. Limited torsional movement possible 4. Very low weight 5. "Push button principle" holds links together 6. Cable-friendly interior 7. To be filled along the outer radius 8. Mounting bracket with integrated strain relief possible 9. Available with 1, 2, 3 or 4-chamber design (permanently injected multiple chamber design for separate cable laying) 10. Filled along inner radius Series E065 Series E065.2 Series E065.3
Available inner widths Bi: 9 to 16mmAvailable bend radii R: 18 to 38mmPitch: 15mm/link = 67 links/m
* The required clearance height is HF = H + 10mm (at 0,2kg/m fill weight) Please contact us if you have particularly confined space requirements.
** The calculated length corresponds to the chain length without mounting brackets.
Overlapping on the opening mechanism, except for width 9/9/9/9 gap dimension 2.5/2.5/2.5/2.5 mm A=moving end, B=fixed endPitch: 15 mmChain links per m: 67Travel: SChain length = S/2 + K
The unsupported length depends on fill weightX axis: unsupported length in m FLB/FLGY axis: fill weight in kg/mLower scale: travel S in mFLB = unsupported with permissible sagFLG = unsupported with straight upper run
