triflex® R TRC.30

Here you can configure your e-chain system® individually. All entries and changes are taking over to the part list which is situated at the end of the page.

System triflex® R Series TRC.30

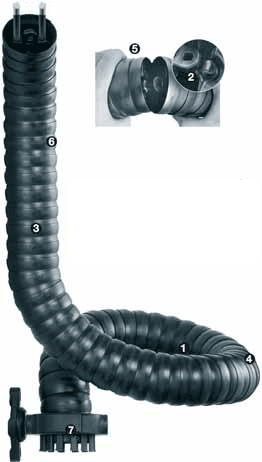

1. Multi-axis movement - High flexibility for complex applications even on the 6th axis. Rotation of approx. ± 10° per chain link possible in the longitudinal axis. This facilitates cable guidance around difficult geometric structures
2. High tensile force absorption due to the special "trailer design" (=ball/cup system), means smooth movements on all axes with a tested tensile strength of up to 50 N
3. Outstanding mechanical specifications - impact proof, dirt-repellent, tough, abrasion-resistant and swarf-resistant. Slides over edges while protecting cables due to smooth outer and inner contours. Tested for more than 1 million cycles in the igus® laboratory
4. Small bend radii and small pitch - for space-saving installation
5. Easy to assemble and disassemble - one injection-moulded component, requiring little effort to assemble. No load-bearing elements (e.g. steel cables,spring mechanisms, etc.) necessary for retraction
6. Extremely stable due to external stop-dogs, defined stops for radius and torsion
7. Minimise set-up times by very easy installation onto your machine/robot and a smart range of accessories

When to use Series TRC.30:

If a secure energy supply is required for multi-axis movements
If high torsion resistance is required
If the system needs to be easy to lengthen and shorten
If a small bend radius is required
If high tensile strength absorption is important
If a smooth and robust outer contour is required to avoid snagging

When not to use Series TRC.30:

For circular movements with high load
twisterchain® system
If an easy-to-fill option is required
triflex® R TRE system
When a less expensive, less sophisticated multi-axis solution is required
triflex® R TRL system

Installation dimensions


Part No. :
Inner width Bi [mm]:
Bi1 [mm]:
Bi2 [mm]:
Bending radius R [mm]:
Chain length [mm]:
Number of chain links :
External width Ba [mm]:
d1 [mm]:
d2 [mm]:
Hi [mm]:
Ha [mm]:
Weight per link [g]:
Weight [kg/m]:

Please use Configurator for partitioning of interior and for filling with cables.

Call configurator

Price index:

Opening mechanism :

Personal contact

Application examples 3D-CAD Samples and catalog order E-Chain® Expert call Service life calculation PDF file Ask the product expert

Designing with igus®

Fibre-rod modules and strain relief options are possible

triflex® R heat protection sleeve for protecting from metal spatter up to 600°C

Assembly instructions

Technical specifications

Strain reliefs

Mounting brackets

Light mounting brackets

unassembled	assembled

Standard for TRL version, but also compatible with all triflex® R variants (TRC/TRE)
Mounting bracket with strain relief or as intermediate link
Cost-effective and lightweight
For simplified 3D motion and loads
Consisting of two halves and easy to install
TL.Z2 can only be installed on the ball side


Part No. :
A [mm]:
B [mm]:
D [mm]:
E [mm]:

Part List

Personal contact

GToB Imprint General notes Data protection declaration

Material of chain links	igumid NB
Min. permissible temperature [°C]	-40
Max. permissible temperature [°C]	80
Flammability class of chain link	VDE 0304 IIC UL94 V2
