Encoder cables reliably ensure the automatic flow of information


Encoder cables


An encoder cable is required to transmit signals between position sensors of servo motors and their control systems in industrial plant and machines. These signals usually include, among other things, information about the position and speed of the machine.

Buy encoder cables now!
Icon graph

No. 1 in terms of choice, testing and guarantee

Dependable cables for movements in the e-chain - for many cycles, high speeds and accelerations and more challenges.

Icon guarantee

36 months guarantee

In our 2,750 m² laboratory, we put our cables through their paces - and with confidence we can give them a 36 month guarantee!

Icon tools and configurators

Calculated and configured with our online tools

Find the right cable for every application - and directly calculate the service life

chainflex encoder cables

chainflex works

Depending on the type of signals transmitted and their origin, different designations are used for the encoder cables, e.g. resolver, feedback and encoder cables. These cable designations often mean the same thing, but are called differently depending on the manufacturer of drive technology.


Here are some examples of how to use such cables: resolver cables pass the output signal of a resolver. A resolver is an angular position encoder. It captures the angle of a mechanical element in an underlying coordinate system. An encoder detects angles of rotation and usually delivers digital output signals that are decoded in an evaluation unit. The cable between the encoder and the evaluation unit is an encoder cable. With a feedback cable, information about the location of machine parts or about the condition of system components is transmitted to the control system. An encoder cable either transmits measured values to the control system or control values to the drives.

The error-free signal transmission is an essential prerequisite for the functionality of automatically controlled machines and systems. With measuring systems in particular, it is important that the electrical signals, which can be both analogue and digital signals, are transmitted without interference, especially when used in energy chains. Encoder cables are often exposed to high mechanical stresses and bend radii and therefore are required to be highly flexible cables. The chainflex encoder cables have been specifically developed for such operating conditions and are adapted to the shield concept, the cable structure and the choice of material.

Structure and use of materials in encoder cables


As a result of extensive development work and continuous tests in the igus test laboratory, the structure and material usage of the chainflex encoder cables has been further optimised. With conductors made of fine-stranded tinned or bare copper wire, high-quality insulation and interference-proof shielding, cables with an above-average service life available to the customer. The element shield consists of a bending-resistant arrangement of tinned copper wires and is fixed to the core surface by an element jacket made of a high quality TPE mixture. Overall, shields consist of a braiding made of tinned copper wires and our outer jacket consist of mixtures based on PVC, PUR or TPE, which are low in adhesion, flame-retardant and highly abrasion-resistant.

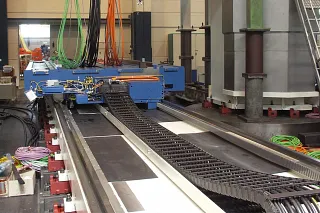

Application areas for encoder cables


The product range of igus GmbH includes encoder cables for all well-known drive technology systems. The cables are used in machining centres, robotic systems, packaging machines and storage and retrieval units.
