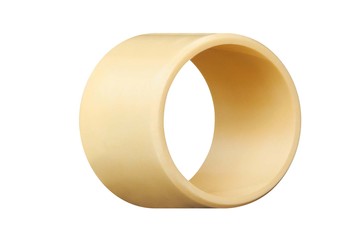

iglidur® W360 | Endurance runner with all-round profile The iglidur® material W360 combines excellent endurance properties with high temperature resistance, reduced moisture absorption and good price/performance ratio - a genuine all-rounder in the endurance sector.
Typical applications Vending machineryAutomotiveMotor bikes & ScootersFind more applications here:
Industry solutions When to use it?- When an extremely wear-resistant plain bearing is required for medium loads
- When regular contact with moisture occurs
- When continuous operating temperatures are higher than +90°C
| When not to use it?- When a wear-resistant plain bearing is sought for the standard temperature range and low to medium loads
iglidur® J, sleeve bearing with flange, mm - When maximum temperature resistance and high wear resistance is required

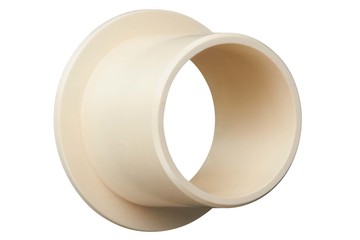

iglidur® X6, sleeve bearing with flange, mm iglidur® J350, sleeve bearing with flange, mm iglidur® V400, sleeve bearing with flange, mm - When the highest wear resistance under water is required

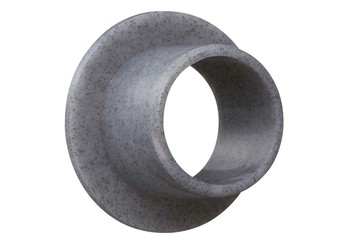

iglidur® UW, sleeve bearing with flange, mm iglidur® H370, sleeve bearing with flange, mm
|
Use our filter options to find the suitable productTolerances and measuring systemThe installation dimensions and tolerances of the iglidur® plain bearings depend on the material and wall thickness. For each material, the moisture absorption and the thermal expansion are decisive factors. Plain bearings with low moisture absorption can be installed with a smaller bearing clearance. The rule for wall thickness: the thicker the wall of the bearings, the larger the clearances must be.
Testing methodsAssembly iglidur® plain bearings are press-fit bearings. The inner diameter is only adjusted to the appropriate tolerance after pressing into the housing hole. The press-fit excess dimension can be up to 2% of the inner diameter. This ensures the secure press-fitting of the bearings. Axial or radial movements in the housing are thus reliably avoided.
iglidur® - assembling, gluing, machining
