iglidur® L250, sleeve bearing with flange, mm

  • Excellent friction coefficients
  • Resistant to edge pressure
  • Resistant to shocks and impacts

Unsure whether it fits?

Calculate service life
Download CAD files
Free sample request
Ask the expert

Ask the expert

Get in touch with our expert.
iglidur® sample box & price list

iglidur® sample box & price list

Order free of charge
Product description
iglidur® L250 | For high speeds
iglidur® L250 is a plain bearing material for high speeds, fast sliding movements and low coefficients of friction. The iglidur® L250 material can highlight these advantages particularly with low loads. Applications featuring these advantages are fans, small motors, fast-running sensors or the magnet technology.

Typical applications

Automotive

Here are more applications:
Industry solutions

When to use it?
  • For rotating applications at high speed
  • When the highest service life is required
  • For low load applications
  • When a low noise level is required
  • For very low coefficient of friction
When not to use it?
Use our filter options to find the suitable product

Tolerances and measuring system
The installation dimensions and tolerances of the iglidur® plain bearings depend on the material and wall thickness. For each material, the moisture absorption and the thermal expansion are decisive factors. Plain bearings with low moisture absorption can be installed with a smaller bearing clearance. The rule for wall thickness: the thicker the wall of the bearings, the larger the clearances must be.
Testing methods

Assembly
iglidur® plain bearings are press-fit bearings. The inner diameter is only adjusted to the appropriate tolerance after pressing into the housing hole. The press-fit excess dimension can be up to 2% of the inner diameter. This ensures the secure press-fitting of the bearings. Axial or radial movements in the housing are thus reliably avoided.
iglidur® - assembling, gluing, machining

Certificates and standards
RoHS compliant According to 2011/65/EU (RoHS 2)
Technical data
Related products
Downloads

Other solutions

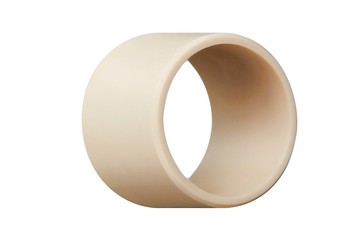

iglidur® L250, sleeve bearing, mm
iglidur® L250, sleeve bearing, mm

For high speeds

from £ 8.67/Pc.

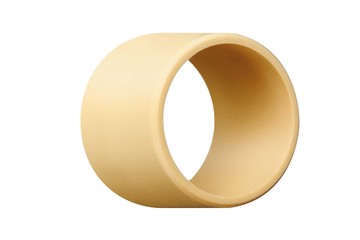

iglidur® W300, sleeve bearing, mm
iglidur® W300, sleeve bearing, mm

The classic endurance runner, very wear resistant on (virtually) all shafts

from £ 6.67/Pc.

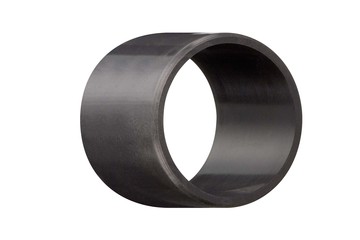

iglidur® Q, sleeve bearing, mm
iglidur® Q, sleeve bearing, mm

For high loads - wear-resistant on many shafts

from £ 4.80/Pc.
iglidur® J, sleeve bearing with flange, mm
iglidur® J, sleeve bearing with flange, mm

The versatile endurance runner, highly resistant to wear on (nearly) all shafts with very low coefficients of friction

from £ 4.06/Pc.
iglidur® V400, sleeve bearing with flange, mm
iglidur® V400, sleeve bearing with flange, mm

For soft shafts, up to +200 °C

from £ 10.84/Pc.

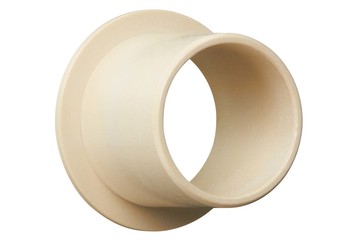

iglidur® H1, sleeve bearing with flange, mm
iglidur® H1, sleeve bearing with flange, mm

Endurance runner with high media resistance

from £ 7.48/Pc.
