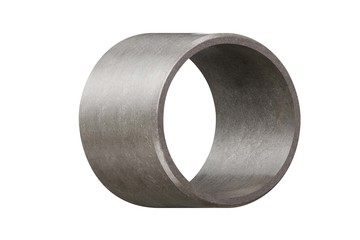

iglidur® G | The general purpose bearing


• Over 650 sizes available from stock
• High wear resistance
• Resistance to dust and dirt
• Cost-effective
• Lubrication and maintenance-free

iglidur® G bearings cover an extremely wide range of different requirements – they are truly "all round". The material is ideal for universal applications, a truly "all-round". Typical applications include medium to high loads, medium surface speeds and medium temperatures. iglidur® G is the decathlete among iglidur® materials. It performs exceedingly well in all technical disciplines and is the classic all-rounder, primarily with respect to the overall general, mechanical, thermal and tribological specifications.

Typical application areas

Agriculture
Automotive
Construction machinery
Electronic manufacturing
Machine tools
Fitness and sports

You will find plenty of additional application areas at our
Industry solutions



When to use it? Economical all-round performance bearing For low to average surface speeds When the bearing needs to run on different shaft materials For oscillating and rotational movements

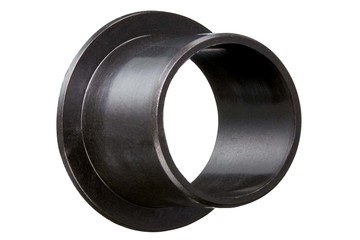

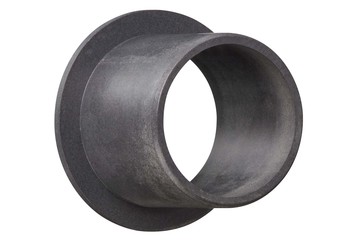

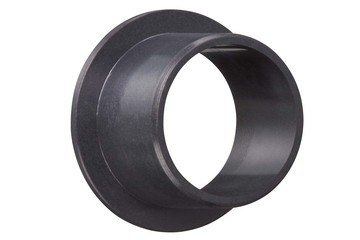

When not to use? When mechanical reaming of the wall surface is necessary iglidur® M250, sleeve bearing with flange, mm When the highest wear resistance is required iglidur® W300, sleeve bearing with flange, mm When universal resistance to chemicals is needed iglidur® X, sleeve bearing with flange, mm If temperatures are constantly higher than +130 °C iglidur® H, sleeve bearing with flange, mm iglidur® X, sleeve bearing with flange, mm iglidur® H370, sleeve bearing with flange, mm For underwater use iglidur® H370, sleeve bearing with flange, mm Use our filter options to find the suitable product

Tolerances and measurement system
The installation dimensions and tolerances of the iglidur® plain bearings are a function of the material and wall thicknesses. For each material, the moisture absorption and the thermal expansion are imperative. Plain bearings with low moisture absorption can be designed with a minimal amount of tolerance. For wall thickness, the rule is: The thicker the bearings are, the larger the tolerances must be.
Testing methods

Assembly
iglidur® bearings are press-fit bearings. The inner diameter adjusts only after press-fit in the proper housing bore with a recommended tolerance. The before press-fit oversized dimension can be up to 2% of the inner diameter. In this manner, the secure press-fitting of the bearing is achieved. Axial or radial shifts in the housing are also prevented.
iglidur® - assembling, gluing, machining
