Overview of drylin® E products - "E“ as in electric

drylin® E product finder and service life calculation

After selecting your application parameters the product finder shows an overview of the linear tables and motors that are suitable. The product finder calculates the individual price of the linear axis as well as the motor loads and the life expectancy in cycles. With only a few clicks, you can configure a complete linear axis including motor, supply cable and mounting components.


Show full size
Delivery program:
D1 Motor control

drylin® E motor control system D1

Motor control system for all igus® motors

For a variety of automation tasks without programming. For single axes or room linear robots and DeltaRobot, integrated web server for data entry / No software installation or app needed for PC, tablet or smart phone. Stepper (ST), DC and EC motors with up to 21A peak currents and 48V inputs/outputs, analogue inputs, CANopen, ModbusTCP for connection to master control systems such as Siemens or Beckhoff

D3 Motor control

drylin® E motor control system D3

Motor control system for all igus® DC motors

Simple automation directly at the control system without software and PC. Operation with limit switch or via power consumption of the motor. Left/right operation and speed control directly on the housing. Option for external switches/joysticks. Various modes of operation, tip operation and continuous operation. Various adjustable acceleration ramps. Power supply via 24 V / 2.5 A.

step motor NEMA17

drylin® E NEMA 17

The small one with lots of power

This little motor can be impressive with good torque and high speeds. Reliable, rapid movements of smaller loads.

step motor NEMA23

drylin® E NEMA 23

The most popular stepper motor size

High torque and high speed are the main advantages. This motor is the best choice for most applications in the medium load range.

step motor NEMA23XL

drylin® E NEMA 23XL

The power motor, medium size

An advanced development of the typical NEMA23 with approximately double the torque. The mounting dimensions are the same as in the NEMA23, so that it can be used on the same mounting face.

step motor NEMA34

drylin® E NEMA 34

Large size, power package

Applications with high loads should use this large type. Heavy duty or parallel twin rail superstructures are typical working environment.

drylin® E spindle motors

drylin® E - spindle motors

These are used in stand-alone solutions for customer designs in confined installation spaces.

DC motors - Simply rotate

drylin® E - DC motors

Simple linear motions can be implemented by DC motors. The motor can be rotated with a battery or a simple power supply unit.

drylin® E encoder motor IP65/IP68

drylin® E - NEMA23 IP65 & IP68

IP65 (spray water) and IP86 (submerged) stepper motors are ideally suited for applications in wet environments.

drylin® E - gearbox for stepper motors

drylin® E - gearbox for stepper motors

Implement heavy-duty format adjustments or stroke movements even with smaller motors.

drylin® DC motors with spline

drylin® DC motors with spline

drylin® DC motors with spline

drylin® E adapter kits for servo motors

Adapter kits for servo motors

drylin® E adapter kits for servo motors

drylin® E accessories

Spacer, motor flange and coupling due to the right linear tabel and motor combinations.

drylin® E accessories

drylin® E - End- and reference switch

End- and reference switch suitable to drylin® linear axis

drylin® E - End- and reference switch

Modular dry-tech® delta robot kit

Cost-effective and lightweight modular kit for delta robots.

Modular dry-tech® delta robot kit

GRW-0630 - highly dynamic at small loads

Small and light cantilever axis for "pick & place" applications

GRW-0630 - highly dynamic at small loads

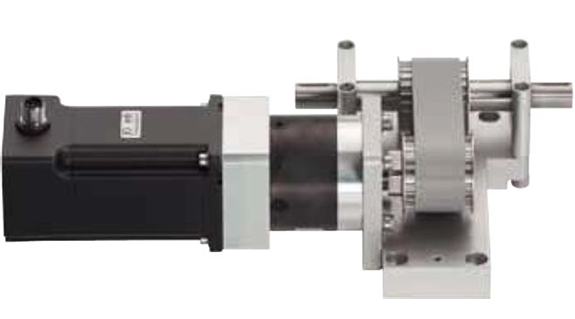

Gantry Drive drylin® E gantry drive unit

drylin® E drive unit for gantries - space-saving for gantry structures

Gantry Drive drylin® E gantry drive unit

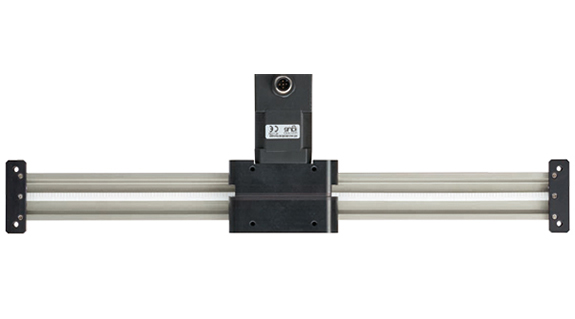

Stroke x2 for gantries ...

z axis with longer stroke for the lubrication-free drylin® boom arm axes

Stroke x2 for gantries ...

drylin® Q - gripper axis

drylin® Q - gripper axis, move components within confined spaces and at low weight

drylin® Q - gripper axis

drylin® E electric linear axes with motor

drylin® E electric linear axes with motor

drylin® E electric linear axes with motor

drylin® E gantries product range

drylin® gantries - Surface, line, room

drylin® E gantries product range

drylin® - lift/swivel unit

drylin® - lift/swivel unit, based on a rack and pinion drive with coated aluminium 4-edge profile as well as a round table element with integrated toothing

drylin® - lift/swivel unit

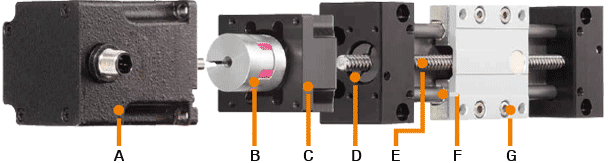

A = igus® step motors

Cost-effective

Maintenance-free solution

Four installation sizes

15 variants


B = Claw coupling
C = Motor flange: connection for stepper motors
D = Ball bearings leadscrew supports
E = Tooth belt, trapezoidal or high helix thread
F = Liners made of maintenance-free iglidur® J
G = Lubrication-free linear guide system using polymer bearings

motor size motor datas possible/recommended axis
belt driven
spindle
NEMA17 Holding torque Mo[Nm]=0,5
flange dimension 42mm
ZLW-0630
ZLW-1040
SAW-0630
SAW-1040
SHT-12
SLW-1040
SLW-1080
NEMA23 Holding torque Mo[Nm]=2,0
flange dimension 56mm
ZLW-0630
ZLW-1040
ZAW-1040
SAW-1040
SHT-12
SLW-1040
SLW-1080
SHT-20
SLW-1660*
SLW-2080*
NEMA23XL Holding torque Mo[Nm]=3,5
flange dimension 60mm
ZLW-0630
ZLW-1040
ZAW-1040
SAW-1040
SHT-12
SLW-1040
SLW-1080
SHT-20
SLW-1660*
SLW-2080*
NEMA34 Holding torque Mo[Nm]=5,9
flange dimension 86mm
ZLW-1660 SHT-20
SLW-1660*
SLW-2080*

* = on request
