Shop drylin® linear guides

Number of products: 356

drylin® W double rail WS

  • Max length 4000mm
  • Lengths under 160mm are available on request
  • No holes version is known as "ungebohrt"
  • Design: Double Rail
  • Material: Aluminum, hard anodized
  • Rail profile: Round
from £ 49.34/m
18 different sizes available.
Ready for shipping:
11 usually shipped in 1 working day
6 usually shipped within 8 working days
To the online shop

drylin® W complete slide system WW

  • Tested: static load capacity linear system Coy 1,680N
  • 100% lubrication-free due to „sliding instead of rolling“
  • Design: round
  • Material sliding element: iglidur® J
  • Material: Die-cast zinc
from £ 44.96/Pc.
30 different sizes available.
Ready for shipping:
18 usually shipped in 1 working day
7 usually shipped within 8 working days
To the online shop

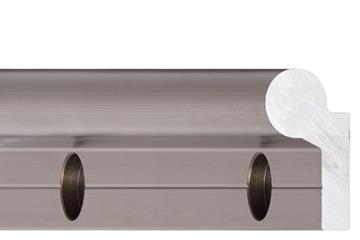

drylin® W single rail WS

  • Max length is 4000mm
  • Rails can be joined together to make unlimited lengths, unlike ball bearing systems.
  • No holes version is known as "ungebohrt"
  • Design: Single Rail
  • Material: Aluminum, hard anodized
  • Rail profile: Round
from £ 22.96/m
10 different sizes available.
Ready for shipping:
8 usually shipped in 1 working day
2 usually shipped within 8 working days
To the online shop

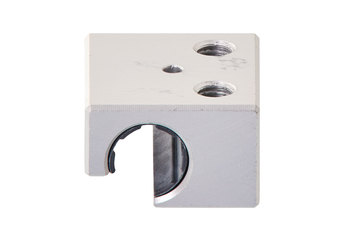

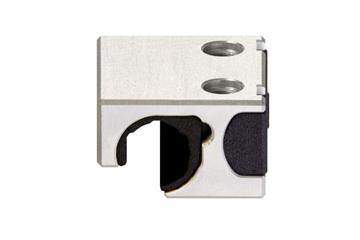

drylin® W pillow block WJ200UM-01

Here you will find the right rail
  • Material: Die-cast zinc
  • Material sliding element: iglidur® J200
from £ 6.66/Pc.
10 different sizes available.
Ready for shipping:
8 usually shipped in 1 working day
2 usually shipped within 8 working days
To the online shop

drylin® N guide rail, installation size 27

  • With mounting holes or without for individual machining
  • Suitable for small installation spaces
  • Easy adjustment and positioning
  • Material: Aluminium, clear anodized
  • Size: 27
We offer matching cover caps for all drylin N linear rails:
NS-01-17/NS-01-17-AR 🠖 NSKB-17
NS-01-27/NS-01-27-AR 🠖 NSKB-27
NS-01-40/NS-01-40-AR 🠖 NSK-40
NS-01-80/NS-01-80-AR 🠖 NSKB-80
from £ 31.76/m
2 different sizes available.
Ready for shipping:
1 usually shipped in 1 working day
1 usually shipped within 8 working days
To the online shop

drylin® N guide carriage installation size 27 iglidur® J sliding element

  • Material sliding element: iglidur® J
  • Mounting type: Through holes
  • Installation size: 27
  • Load capacity, stat.: 500 N
from £ 5.29/Pc.
11 different sizes available.
Ready for shipping:
7 usually shipped in 1 working day
2 usually shipped within 8 working days
To the online shop

drylin® N guide carriage installation size 27 iglidur® J sliding element

  • Material sliding element: iglidur® J
  • Mounting type: Threaded bosses
  • Installation size: 27
  • Load capacity, stat.: 500 N
from £ 6.08/Pc.
11 different sizes available.
Ready for shipping:
5 usually shipped in 1 working day
5 usually shipped within 8 working days
To the online shop

drylin® T guide rail TS

Material: Aluminium, hard anodised


from £ 59.62/m
8 different sizes available.
Ready for shipping:
4 usually shipped in 1 working day
4 usually shipped within 8 working days
To the online shop

drylin® T guide carriage TW-01

  • drylin® T linear carriage of the standard 01 series
  • With individual clearance adjustment
  • Long service life due to iglidur® J
  • Optionally configurable as floating bearing version in y or z direction
  • Material: aluminium housing, plastic lid, iglidur® J slider
Here you can find the suitable rail (size 15, 20, 25, 30 - drilled and undrilled)
from £ 56.33/Pc.
12 different sizes available.
Ready for shipping:
5 usually shipped in 1 working day
4 usually shipped within 8 working days
To the online shop

drylin® R pillow block RJUM-05

Find suitable replacement liners for the RJUM-05 linear slide bearing here

  • Design: short, closed design
  • Material sliding element: iglidur® J
  • Housing material: aluminium
from £ 46.68/Pc.
9 different sizes available.
Ready for shipping:
7 usually shipped in 1 working day
2 usually shipped within 8 working days
To the online shop

drylin® N guide rail, installation size 40

  • With mounting holes or without for individual machining
  • Suitable for small installation spaces
  • Easy adjustment and positioning
  • Material: Aluminium, clear anodized
  • Size: 40
We offer matching cover caps for all drylin N linear rails:
  • NS-01-17/NS-01-17-AR 🠖 NSKB-17
  • NS-01-27/NS-01-27-AR 🠖 NSKB-27
  • NS-01-40/NS-01-40-AR 🠖 NSK-40
  • NS-01-80/NS-01-80-AR 🠖 NSKB-80
from £ 38.17/m
2 different sizes available.
Ready for shipping:
1 usually shipped in 1 working day
1 usually shipped within 4 weeks
To the online shop

drylin® W stainless steel single rail, WS-ES

  • Fully 316 stainless steel
  • Suitable for food contact
  • Suitable applications such as subsea, nuclear and food
  • FG= cast feet, machined feet available upon request.
  • Design: Single Rail
  • Material: stainless steel 1.4571
  • Rail profile: Round
from £ 276.31/m
4 different sizes available.
Ready for shipping:
3 usually shipped within 4 weeks
To the online shop

drylin® T guide carriage TW-01-HKA

  • drylin® T linear carriage of the standard series 01
  • With fitted manual clamp
  • Individual clearance adjustment
  • Long service life due to iglidur® J
  • Optionally configurable as floating bearing version in y direction
  • Material: aluminium housing, plastic lid, iglidur® J slider
Here you can find the suitable rail (size 15, 20, 25, 30 - drilled and undrilled)
from £ 77.98/Pc.
8 different sizes available.
Ready for shipping:
3 usually shipped in 1 working day
4 usually shipped within 8 working days
To the online shop

drylin® W complete slide system WW-HKA

  • Design: round
  • Material sliding element: iglidur® J
  • With manual clamp
  • Material: Die-cast zinc
from £ 68.21/Pc.
17 different sizes available.
Ready for shipping:
3 usually shipped in 1 working day
13 usually shipped within 8 working days
To the online shop

drylin® R pillow block FJUMT-01

  • Design: closed design, tandem design, round flange
  • Material sliding element: iglidur® J
  • Housing material: anodised aluminium
from £ 50.53/Pc.
8 different sizes available.
Ready for shipping:
6 usually shipped in 1 working day
2 usually shipped within 8 working days
To the online shop

drylin® linear guides

The product range of lubrication-free drylin® linear guides is based on the principle of "gliding instead of rolling". In combination with corrosion-free materials, tribo-optimised iglidur® high performance polymers are used as a sliding surface. drylin® linear guides traverse in dry operation and are thereby maintenance-free and are insensitive to influences such as dirt, water, chemicals, heat or impacts. In addition, they have a very low noise because of the materials used and the special design. With these properties, drylin® linear guides can be used in a wide variety of environments, including extreme ones. The modular system allows for high flexibility with different rail guides and pillow blocks.
