Energy chains for smooth running and cleanroom

Smooth running means that a machine runs smoothly and trouble free. With the E6/E6.1, E3 and T3 family, smooth running describes the combination of a very small tendency to vibrate and a low level of noise emission. Test results of an ultra-quiet 32 dB(A) and certified smooth running underscore this fact. Another benefit provided by this family is its suitability for cleanrooms thanks to IPA class 1 certification.

Products

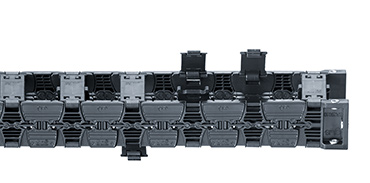

E6.1

E6.1 series Current generation

Quiet from 32 dB(A) and low vibration

  • Inner height: 29 to 80mm
  • Available in 3 versions:
    • Openable from both sides along the inner and outer radius
    • Removable from both sides along the inner and outer radius
    • Removable along the inner and outer radius
  • Extremely quiet 32 dB(A)
  • High push/pull forces
  • Suitable for ISO class 1 cleanroom use: virtually no wear or abrasion

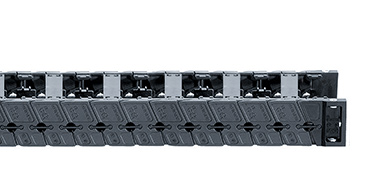

E6

E6 series Predecessor model of the E6.1

Quiet 37 dB(A) and for small bend radii

  • Inner height: 29 to 80mm
  • Available in two options:
    • Openable from both sides
    • e-tube, lid removable from both sides

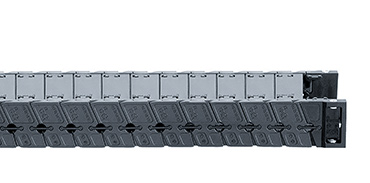

R6

Series R6

Protection from minor contamination, weld splatter and environmental influences

  • Inner height: 28 to 52mm
  • Enclosed system
  • Quiet operation
  • Low wear

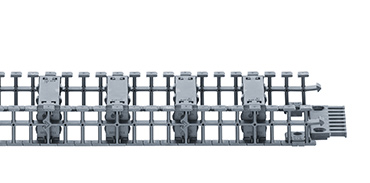

T3

T3 system

Lightweight, highly flexible and low-vibration

  • Inner height: 29mm
  • Crossbars removable along the inner and outer radius
  • Very lightweight e-chain®
  • Small bend radius and smallest installation spaces
  • Quiet 33 dB(A)
  • Cleanroom ISO class 2

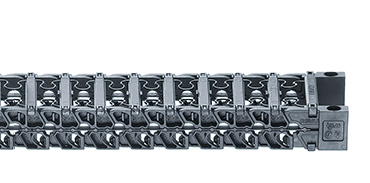

E3

E3

Highly dynamic and cleanroom compatible

  • Inner height: 10 to 22mm
  • Crossbars on a strip - zip-open along the outer radius
  • Quiet 38 dB(A)
  • Modular design: crossbars, interior separation and links all in one band

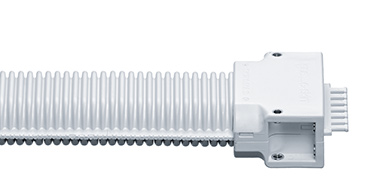

e-skin®

e-skin®

Cleanroom energy supply

  • Inner height: 28 to 40mm
  • Can be opened and closed like a zipper
  • Less installation space required
  • Protection against dust and water ingress
  • IPA classification 2
  • Second prize in the 2018 Fraunhofer clean technology awards
