Energy chains for protection against dirt and swarf

The primary task of the family of closed tubes is to protect cables from dirt, dust and swarf. Being openable thanks to hinged or removable lids, stop-dogs encapsulated and protected against dirt and high stability mean that the tube product range becomes standard when it gets dirty.

Products

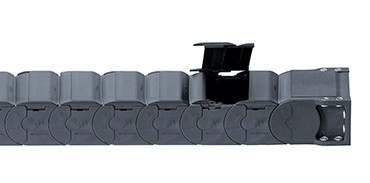

R2.1

r2.1 Recommendation

Cost-effective and stable swarf protection with openable lid

  • Inner height: 26 to 75mm
  • Available in two versions:
    • Openable from both sides along the outer radius
    • Openable from both sides along the inner radius
  • Large inner height and cost-effective at the same time
  • Quiet operation due to integrated brake
  • Smooth edge-free design

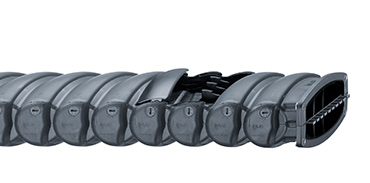

RX tubes

rx

Extremely swarf-resistant for the use directly in chip areas

  • Inner height: 42 to 73mm
  • Lid in the outer radius removable
  • Round contours mean that chips simply bounce off
  • IP tested by TÜV NORD CERT GmbH

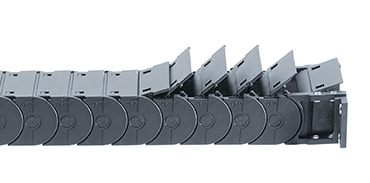

E2 R

E2 R

Good chip protection at high speeds

  • Inner height: 25 to 45mm
  • Lids removable along the outer radius
  • Quiet running thanks to the chain links' small pitch

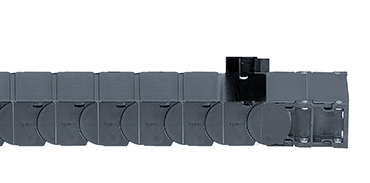

E2 R100

E2 R100

Cost-effective swarf protection

  • Inner height: 21–50mm
  • Lids openable from both sides along the inner radius
  • Cost-effective protection against dirt and swarf

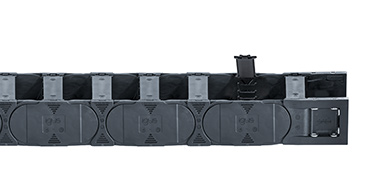

R4.1L

R4.1L

Reduce cost, time and weight

  • Inner height: 40 to 300mm
  • Lids openable from both sides along the outer radius
  • Fully enclosed design
  • Integrated "brake" for low-noise running
  • Undercut design for the best possible lateral stability
  • Can be closely adapted to the application
  • Best possible value for money
  • 30% less weight and 80% faster installation than comparable series
  • Double stop-dog system and large pin/bore connection for high level of force absorption

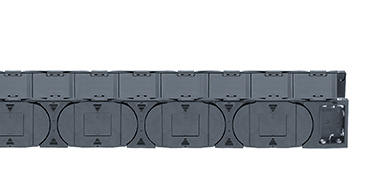

R4.1

R4.1

A series for virtually every application

  • Inner height: 30 to 800mm
  • Lids removable along the inner and outer radius
  • Fully enclosed design
  • For especially demanding applications
  • Undercut design for the best possible lateral stability
  • Double stop-dog system and large pin/bore connection for high level of force absorption
  • High push force on long travels and for large unsupported lengths
  • Noise-reducing "brakes" and optional noise dampers
  • Integrated "brake" for low-noise running

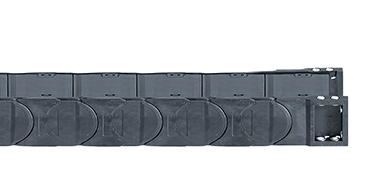

R4/light

R4/light

Large inner heights combined with low own weight

  • Inner height: 50 to 600mm
  • Lids removable along the inner and outer radius
  • Fully enclosed design
  • Reduced thickness of the side sections and thinner crossbars

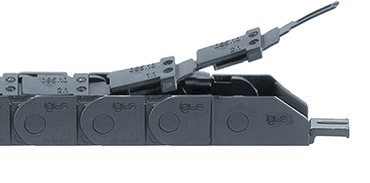

zipper e-tubes

Zipper

Swarf protection around a small installation space

  • Inner height: 9 to 32mm
  • Lids on a strip along the outer radius
  • As a tube version for light levels of dirt
  • Quiet running thanks to the chain links' small pitch
  • Also available as a closed "tube version"
  • iF Design Award for zipper-like design

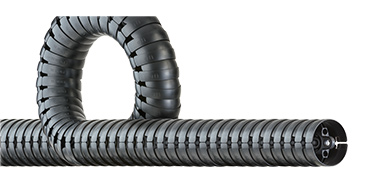

triflex® R

triflex® R

Movements in three axes – fully enclosed

  • Inner height (fillable): 10 to 46.8
  • Ideal for demanding multi-axis movement
  • TRC version additionally protects against dirt and swarf as it is fully enclosed.
  • High torsion resistance
  • Easy to lengthen and shorten
  • Defined torsion stop-dog and minimum bend radius
  • Many other options available
  • iF Design Award 2004, 2007 & 2013
