PMA cable protection and accessories

PMA product range - versatile selection of tubes and systems

PMA cable protection systems are used wherever the mechanical protection of electrical lines and cables is needed. Highly flexible cable protection tubes are specifically suited for the additional protection of cable guides in e-chain® systems. Due to the combination of technical knowhow and the strictest international safety guidelines, PMA fulfils the worldwide requirements of industrial markets in application areas like mechanical engineering, automotive construction, fiber optics, solar systems as well as applications in the robot sector with high speeds and millions of alternate bending cycles.

PMAFLEX - corrugated tubes

PMAFLEX includes different tube types for a variety of applications in the cable protection field. The PMAFLEX range offers tubes for technically demanding applications with special requirements. Tube sizes are available from 4.5 mm to 125 mm diameter in versions from very light to very heavy and bendable to highly flexible. Standard colors are black and gray. Many tube types are specifically tested and/or approved according to CSA, UL recognition, NF, SNCF, DB, etc.

PMAFIX - connectors

The name PMAFIX describes a very large range in connection fittings with the patented PMA safety lock system. The connection fittings are available for a tightness of IP66 and IP68. IP66 connection fittings are equipped with a preinstalled universal lock, which guarantees a quick push-in assembly of the tube. IP68 connection fittings for higher requirements are delivered with a special tube sealing cap.

Regarding protective hoses, also refer to:

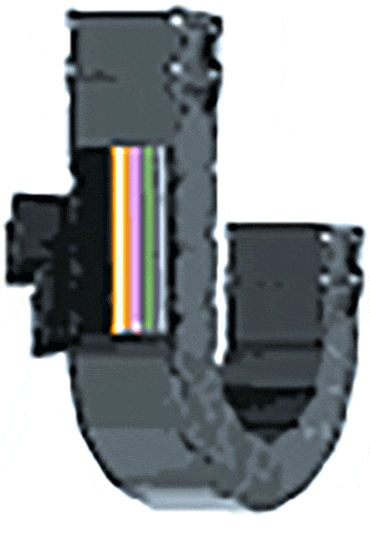

Energy supply chains as protective hoses

e-chain
systems®

plastic energy chains increase the service life of cables in motion control applications.

Energy supply system for industrial robot

triflex® R energy supply solutions specifically for 6-axis robots

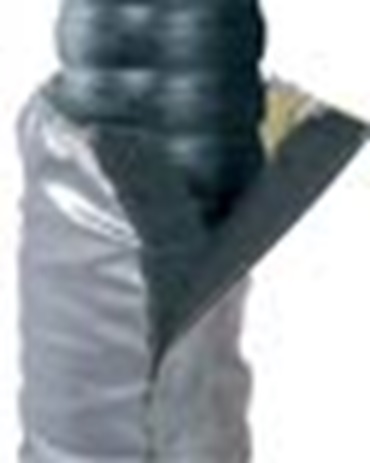

Protective hoses for robots

Protectors and heat shield jackets for use on industrial robots

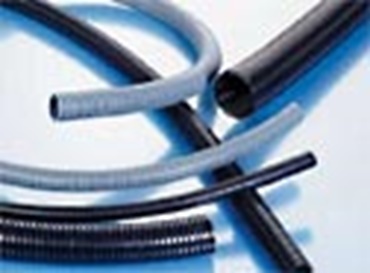

Usually dispatched within 2 working days PMAFLEX PIS/PIH

Highly flexible, medium corrugated tubes

Temperature range:
-50°C to +95°C,
short-term up to 150°C

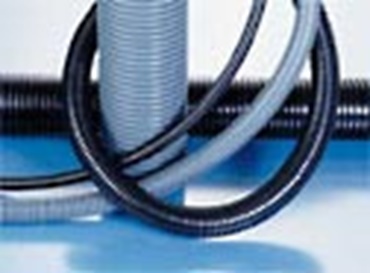

PMAFLEX VOH

Flexible, very heavy version

Temperature range:
-40°C to +105°C,
short-term up to 150°C

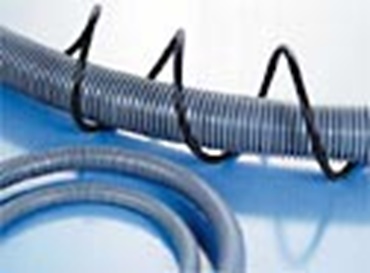

Usually dispatched within 2 working days PMAFLEX CYL

Very flexible, medium corrugated tubes

Temperature range:
-40°C to +105°C,
short-term up to 150°C

Usually dispatched within 2 working days PACOF

Separable protective hose, flexible

Temperature range:
-40°C to +100°C,
short-term up to 130°C

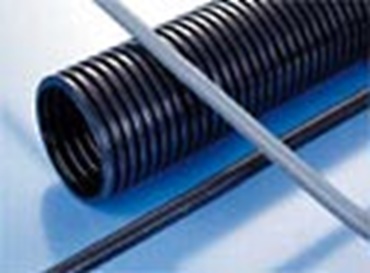

Usually shipped within 15 working days PMAFLEX PCL

Very flexible, medium corrugated tubes CSA

Temperature range:
-50°C to +105°C,
short-term up to 150°C

Usually dispatched within 2 working days PMAFIX VND

Straight fittings

Usually dispatched within 2 working days PMAFIX VWD

Fittings 90° angle

Usually dispatched within 2 working days PMAFIX VBD

Fittings 90° arc angle

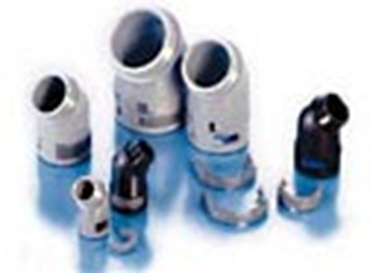

Usually shipped within 15 working days PMAFIX VAD

Fittings 45° angle

Usually shipped within 15 working days PMAFIX VOD

Fittings 90° angle with flange

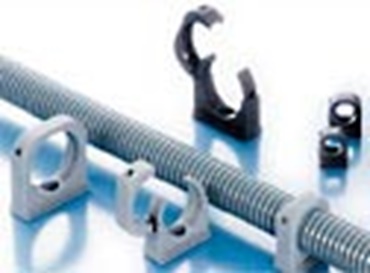

Usually shipped within 15 working days PMACLIP FH

Single-piece system support with integrated safety catch

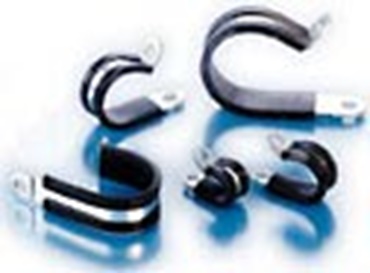

Usually shipped within 15 working days SGB pipe clip

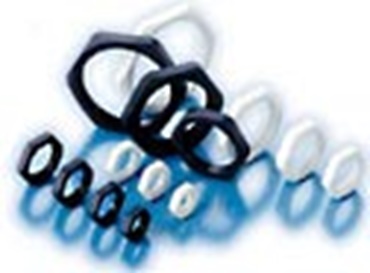

Usually dispatched within 2 working days BMN/GMN - hexagon counter nut

For the additional securing of the connection fittings.
Material:
Type BMN: Polyamide, black
Type GMN: Polyamide, gray

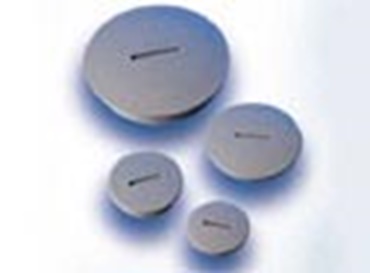

Usually shipped within 15 working days 514 - fitting screws

For temporary sealing for instance of switch cabinets that are prepared for PMAFIX fittings.
Material: Fiber-glass reinforced polyamide, light gray

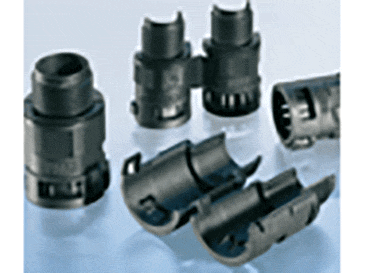

PMA-COFLEX-LNO

Split fittings

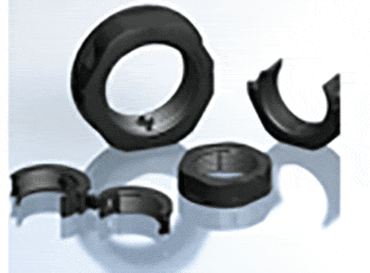

PMA-COFLEX-GTN

Separable counter nut


Usually dispatched within 2 working days
Usually shipped within 15 working days
