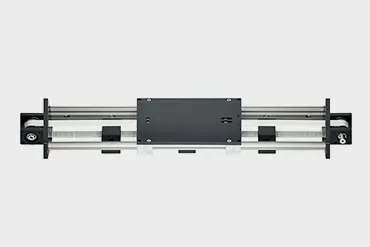

Linear modules with toothed belt drive for extreme conditions

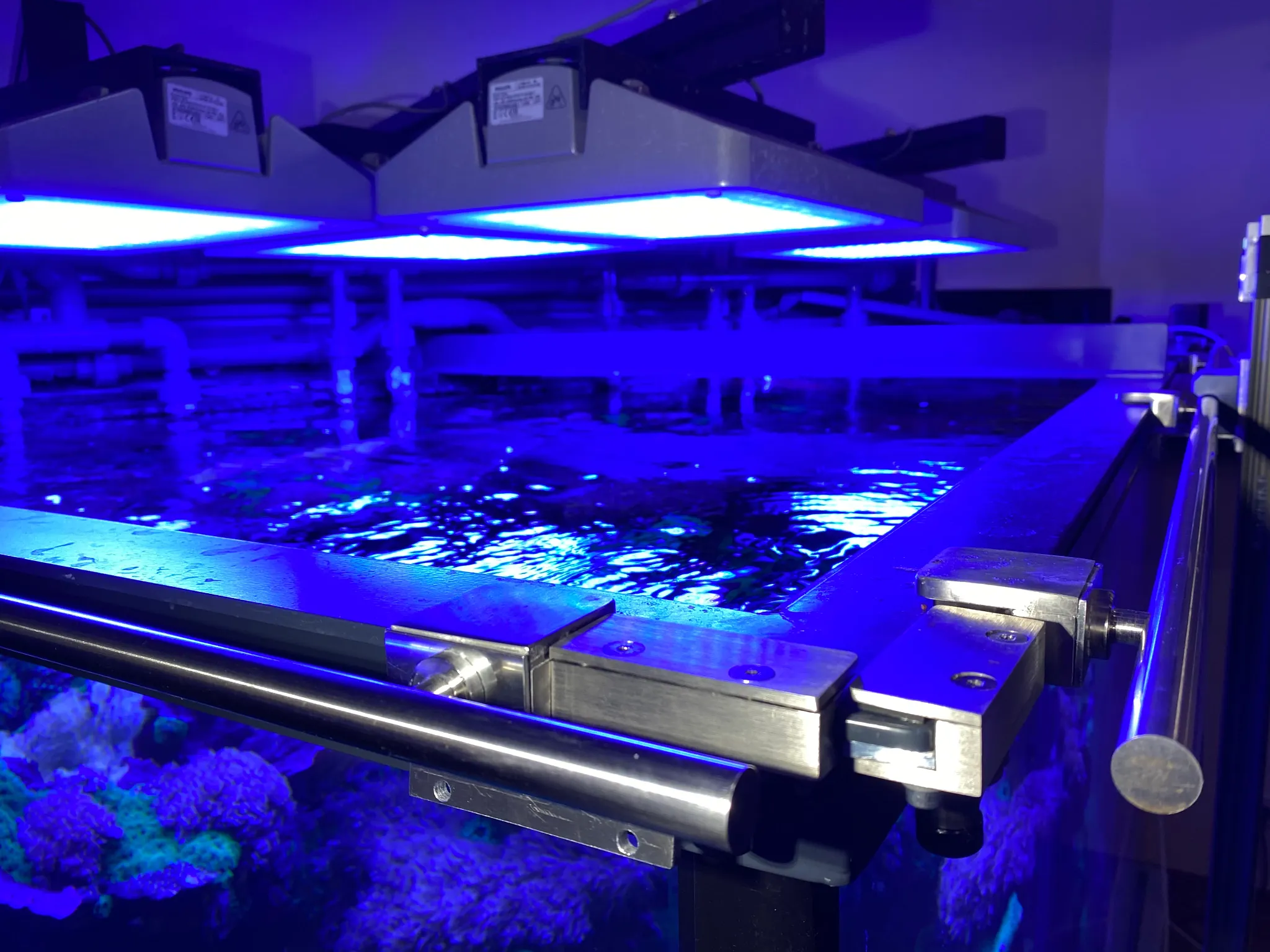

ZLW application

In applications with very harsh and aggressive environments, durable and resilient components are required. With the industry-specific range, applications with splash water contact, underwater use or even freezing temperatures are no problem. In addition, igus® offers belt-driven linear axes for explosive atmospheres as well as completely metal-free solutions that are in demand in the field of automation as well as high-frequency and X-ray systems.
The extreme range can cope with:

  • Temperatures down to –30°C
  • Splash water
  • Underwater applications

Would you like more information about the drylin® ZLW range or do you need an individual consultation? Our experts will be happy to get in touch with you.

Contact the expert

Linear belt options

Belt drive for extreme conditions

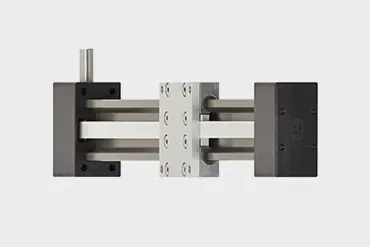

zlw
zlw
  • Underwater
  • Cold storage
  • Freely selectable stroke length

Toothed belt axis for the Ex area

  • Earth connection for voltage reduction
  • Individual stroke lengths up to max. 2,000mm
  • Carriage lengths: 100/150/200mm

Toothed belt axis made from carbon

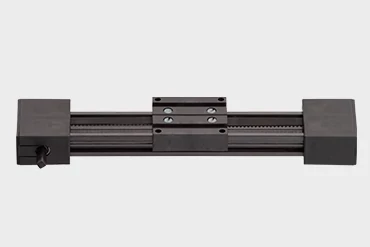

carbon zlw
carbon zlw
  • 100% metal free
  • Fully solid plastic construction
  • Linear guide made in carbon

The ZLW series for extreme conditions

Icon for frozen temperatures
Icon for frozen temperatures

LT range For use at temperatures down to –30°C, the drive and deflection shaft end supports are fitted with cold ball bearings. The drive is implemented by a toothed belt suitable for low temperature.

Icon for splash water contact
Icon for splash water contact

SW range The SW ZLW  version is suitable for applications where there is contact with splash water. It is corrosion-resistant due to PU toothed belt with stainless steel tie beams and stainless steel ball bearings, as well as shaft end support housing made of hard anodised aluminium.

Icon for underwater use
Icon for underwater use

UW range For underwater use, the UW type is ideal. The linear carriages and drive and deflection shaft-end supports are made of hard anodised aluminium. In addition, xiros plastic ball bearings are used. A flexible toothed belt with aramide tie beams serves as the drive.

Configure your custom linear system online

  • Customise your drive system in just a few steps
  • Optional configuration of an individual drive pin

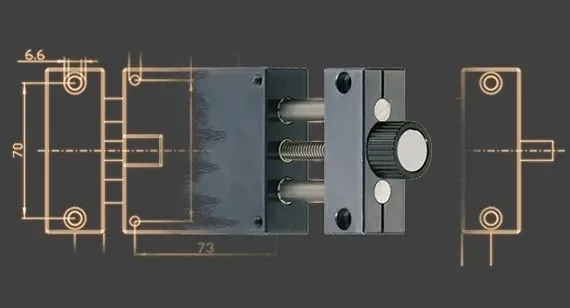

  • Automatic generation of a 3D model of the linear system
  • Export of the linear system in many different 2D and 3D formats
  • 2D dimensional drawing of the module as a PDF
  • Download parts list as PDF file
  • Add to shopping cart and submit order or request a quotation onlin
Configure your drive system

drylin® technical accessories - control elements

Accessories for drylin linear modules and linear axes
  • Accessories for manual positioning and format adjustment
  • Assembly and fastening options
  • Stepper and DC motors for electrical drive
