drylin® SHT and SHT-PL XY tables

High precision, extreme torsional stability

  • Accurate alignment through CNC manufacturing
  • Also available as a preload version (PL)
  • 100% lubrication-free and complete
  • Corrosion-free
  • With trapezoidal thread or dryspin high helix thread
  • Assembly of upper unit with left or right alignment possible
  • Accessories (hand wheel, etc.) available
Would you like more information about drylin® SHT drives or do you need an individual consultation? Our experts will be happy to get in touch with you.

Contact an expert
shy-xy

SHT-XY - XY table installation sizes

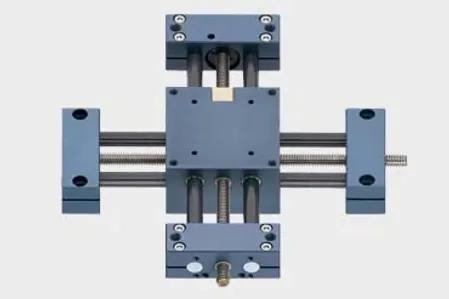

SHT-XY-08-AWM

sht-xy-08
  • Max. stroke length: 150mm
  • Carriage length: 65mm
  • Shaft material: aluminium
  • Shaft diameter: 8mm
Request a quote

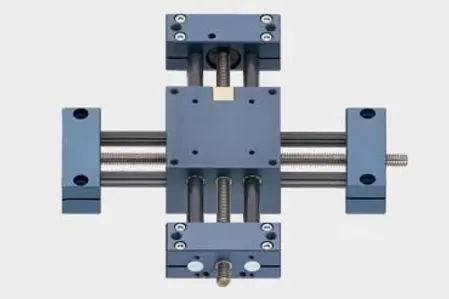

SHT-XY-12-AWM

sht-xy-12
  • Max. stroke length: 350mm
  • Carriage length: 85mm
  • Shaft material: aluminium
  • Shaft diameter: 12mm
Request a quote

SHT-XY-12-AWM-PL- Spring loaded

sht-xy-12
  • Max. stroke length: 350mm
  • Carriage length: 85mm
  • Shaft material: aluminium
  • Shaft diameter: 12mm
Request a quote

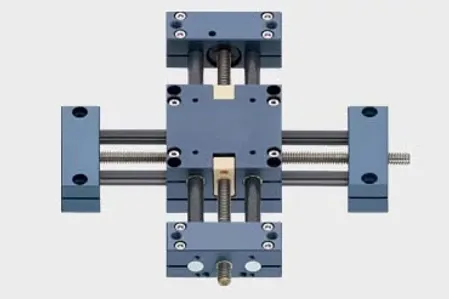

SHT-XY-20-EWM-PL- Spring preload

sht-xy-20-pl
  • Max. stroke length: 500mm
  • Carriage length: 130mm
  • Shaft material: stainless steel
  • Shaft diameter: 20mm
Request a quote

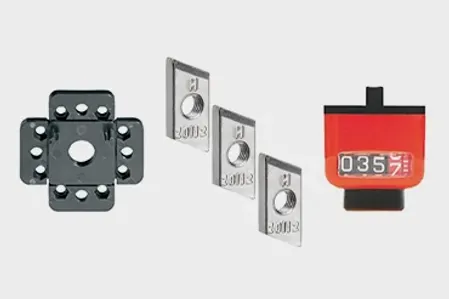

drylin® technical accessories

drylin accessories
  • Accessories for manual positioning and format adjustment
  • Assembly and fastening options
  • Stepper and DC motors for electrical drive
Go to accessories overview

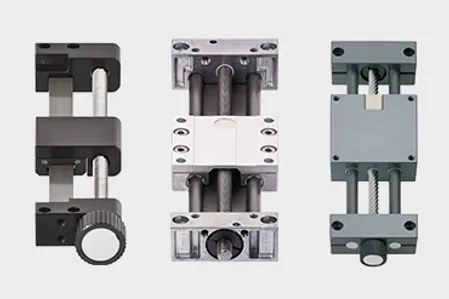

Back to drylin® drive overview

overview
  • Not sure if this is the right module?
  • Need a full overview of the linear drives?
  • Click here to see all the linear drive options available.
Find out more

SHT/SHT-PL XY tables

XY table lengths and weights [mm]

Order number A
-0.3
[mm]
 H

[mm]		 E1
±0.15
[mm]
 E2
±0.15
[mm]		 Base
length lx
[mm]		 Base
length ly
[mm]		 R

[mm]		 f

[mm]		 lt
±0.1
[mm]
 tk

[mm]		 ts

[mm]		 tg

 kt

[mm]
SHT-XY-12 85 56 70 73 145 145 42 2 30 11 6.6 M8 6.4
SHT-XY-08 65 42 52 56 96 96 32 1.5 15.5 10 5.5 M6 7
SHT-XY-12-PL 85 56 70 73 145 145 42 2 30 11 6.6 M8 6.4
SHT-XY-20-EWM-PL 130 86 108 115 202 202 72 2 36 15 9 M10 8.6
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

XY tables dimensions [mm]

Order number sg


 d

[mm]		 T

 l1

[mm]		 d1
Standard
 d1
Alternative
 l2

[mm]		 d2
Standard
d2
Alternative
ha1

[mm]
 ha2

[mm]		 W
ha2-ha1
[mm]
SHT-XY-12 M6 12 17 TR10x2 6h9 17 6h9 18 38 20
SHT-XY-08 M5 8 TR6x2/TR6,35x2,54 15.5 TR6x2/TR6,35x2,54 5 15 5 13 29 16
SHT-XY-12-PL M6 12 17 TR10x2 6h9 17 6h9 18 38 20
SHT-XY-20-EWM-PL M8 20 26 TR18x4 - 26 12h9 23 63 40
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog
The hand wheel can be ordered left or right-mounted in the y-direction.
Left: SHT-XY-12-AWM-L-200-300 for 200mm stroke length on the x-axis and 300mm on the y-axis.
Right: SHT-XY-12-AWM-R-200-300 for 200mm stroke length on the x-axis and 300mm on the y-axis

Technical options for the SHT series

The following options can be delivered for the SHT-XY product range.

Delivery time on request
