drylin® XY linear tables

XY-tables enable the horizontal movement of automated machines such as assembly robots in production plants, milling tables or drilling tables. Robotic arms and other automated machines have limited range of motion while their bases remain fixed; XY-tables allow these bases to move horizontally in the X and Y directions. Also known as cross slides, these XY-tables are both manual and motorised positioning tables with linear motion based on bearings set in motion by a drive mechanism. Typically, the drive is implemented by a linear motor or a hand wheel. XY-tables are designed to enable powerful positioning along multiple axes.

Would you like more information about drylin® XY tables or do you need an individual consultation? Our experts will be happy to get in touch with you.

Contact the expert

XY-table options

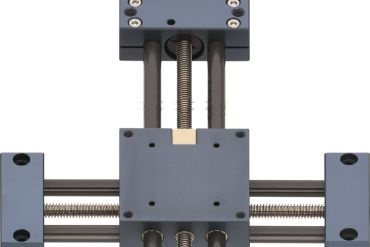

XY-table with drylin® SHT lead screw drive

drylin SHT XY-tables

  • Available as standard and pre-loaded version
  • Adjustments by trapezoidal thread
  • Upper unit can be aligned right or left

Buy now!

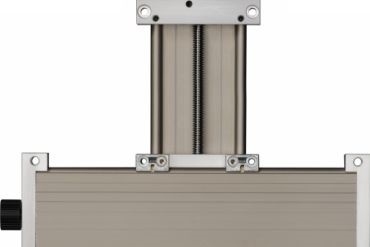

drylin® SLW linear XY-table from igus®

drylin SLW XY-table

  • Hard anodised aluminium drylin W guide rail
  • Pre-loaded version SLWE-XY-PL also available
  • Accessories available

Buy now!

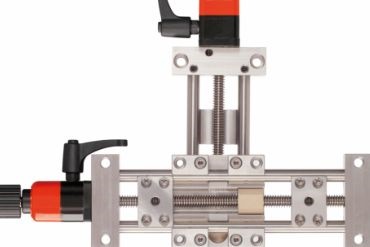

drylin® SLW XY-table made of stainless steel

drylin SLW XY-table | Stainless steel

  • High torsional stability
  • For manual adjustments
  • Compact and low-profile

Buy now!

Accessories for XY-tables

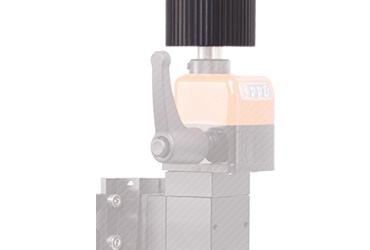

Hand wheels for lead screw drives

For various requirements, igus has a wide range of hand wheels available from stock; from small compact sizes up to 125 Ø with/without handles in different designs.

  • Rotary knob: defined standard for complete units
  • Different outer diameters available
  • Different handles available
  • Also available as rinsable and corrosion-free stainless steel version

Hand wheels for XY-tables

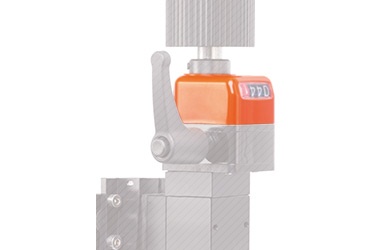

Position indicator

The position indicator for linear axes is used for setting and direct reading of the carriage position. This can reduce downtime, perform adjustments quickly and accurately, and reproduce values.

  • Can be combined with manual clamps and hand wheels
  • Reduction sleeves included in delivery
  • Available in the required counting and viewing direction and in a variety of colours

Position indicator for XY-tables

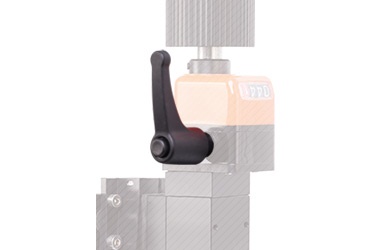

Lead screw clamps

Linear modules with trapezoidal threads are equipped with a self-locking mechanism. Many applications call for an additional clamping option as an extra safeguard against unintentional movement of the lead screw.

  • Shaft clamp adapter for attaching to the position indicator and subsequent clamping of the lead screw.
  • Material: polymer housing with aluminium shaft clamp
  • Reduction sleeves for further diameters available

Lead screw clamp for XY-tables

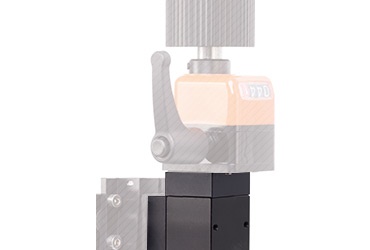

Angular drive

igus provides a product range of continuously rotatable angular drives for adjustment options from a defined direction. For manual adjustments, the angular drives can also be configured with position indicator, clamp and hand wheel, and are shipped pre-assembled. Angular drives with keyed/grooved shafts are available for motor interfaces with increased torque transfers.

  • For rotary transmissions of 90°
  • Flexible adjusting to the installation position with continuous angular adjustment
  • Clamping using set screw
  • Max. drive torque 3Nm

Angular drives for XY-tables

Configure custom lead screw linear system online

  • Customise your XY lead screw linear system in just a few steps
  • Optional configuration of an individual drive pin
  • Automatic generation of a 3D model of the linear system
  • Export of the linear system in many different 2D and 3D formats
  • 2D dimensional drawing of the module as a PDF
  • Download parts list as PDF file
  • Add to shopping cart and submit order or request a quotation online

Configure your drive system
