drylin® T - clearance adjustment

drylin® t clearance adjustment

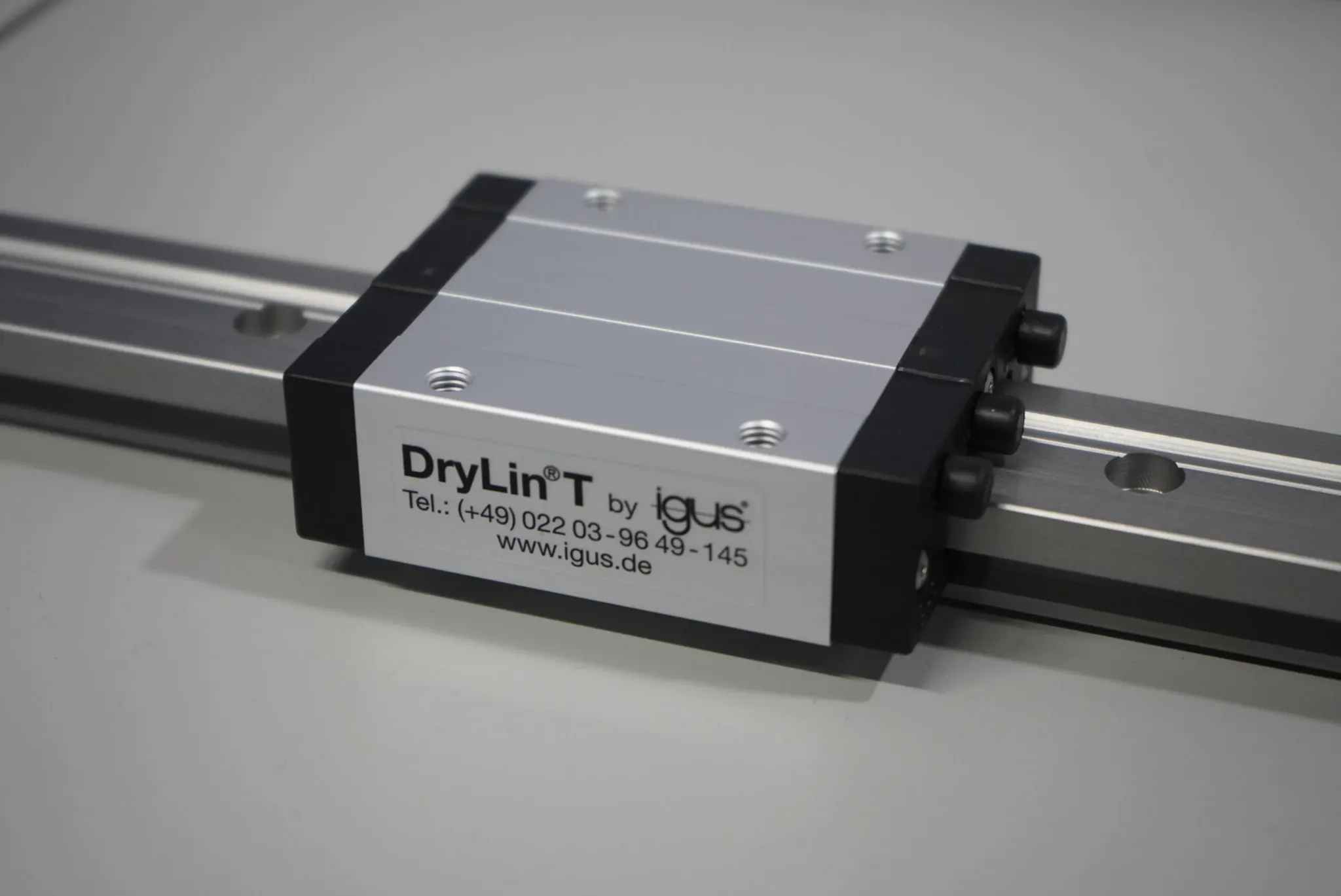

drylin® T linear guideways always require a minimum clearance between the carriage and rail. They are supplied ready for installation with pre-set clearance. For special requirements, please specify whether you need a particularly narrow or particularly wide clearance. If necessary, the bearing clearance of the guide carriages can also be readjusted. This should always be done without additional load.

manual clearance adjustment drylin T
manual clearance adjustment drylin T

lateral guidance:
- reduce clearance, + increase clearance

manual clearance adjustment drylin T
manual clearance adjustment drylin T

Vertical guidance left

manual clearance adjustment drylin T
manual clearance adjustment drylin T

Vertical guidance right

This is how it's done:

drylin® t clearance adjustment 01

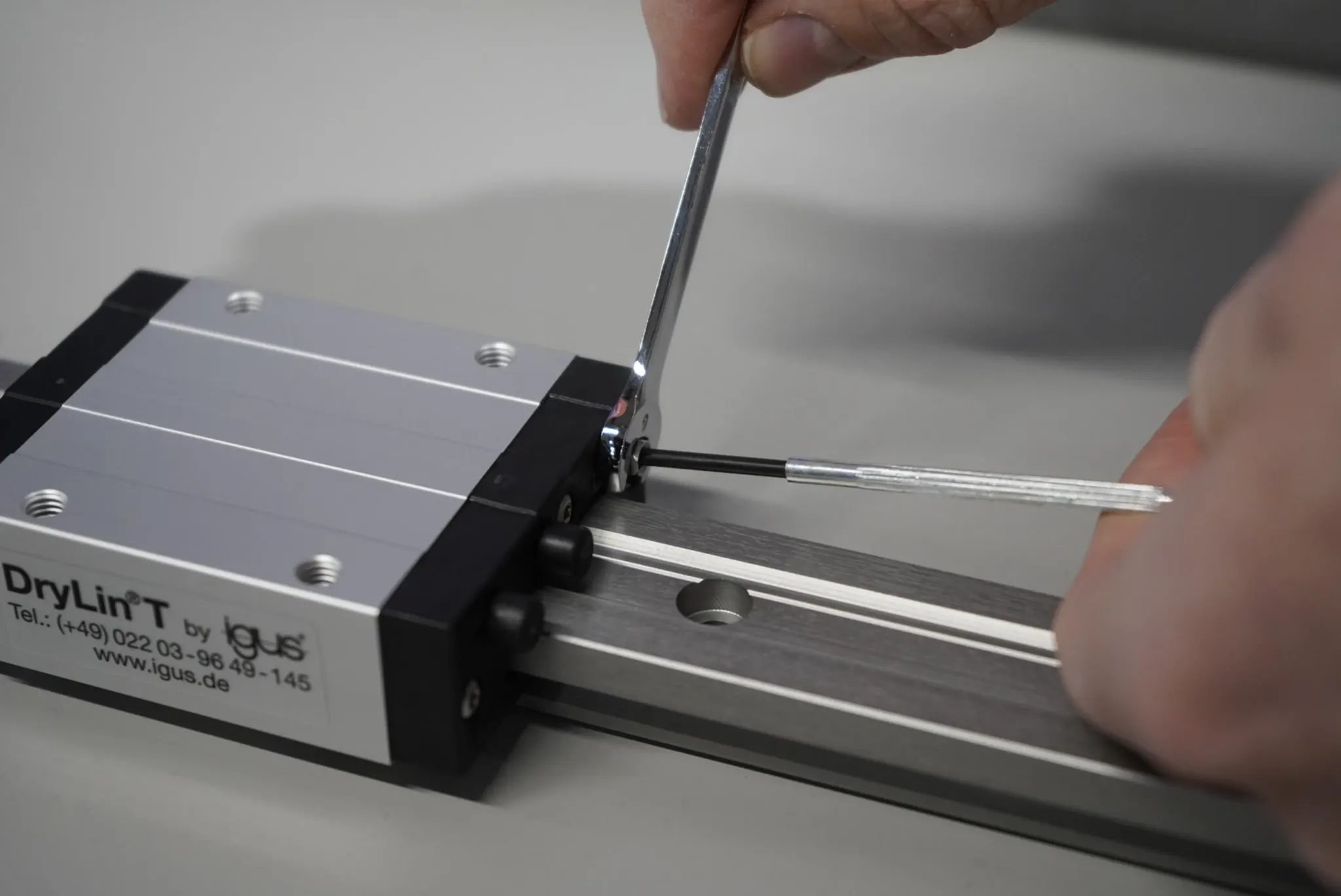

After removing the protective caps, loosen the lock nuts. Width across flats:

SW 5 for TW-01-15 and TW-01-20

SW 7 for TW-01-25 and TW-01-30

drylin® t clearance adjustment 02

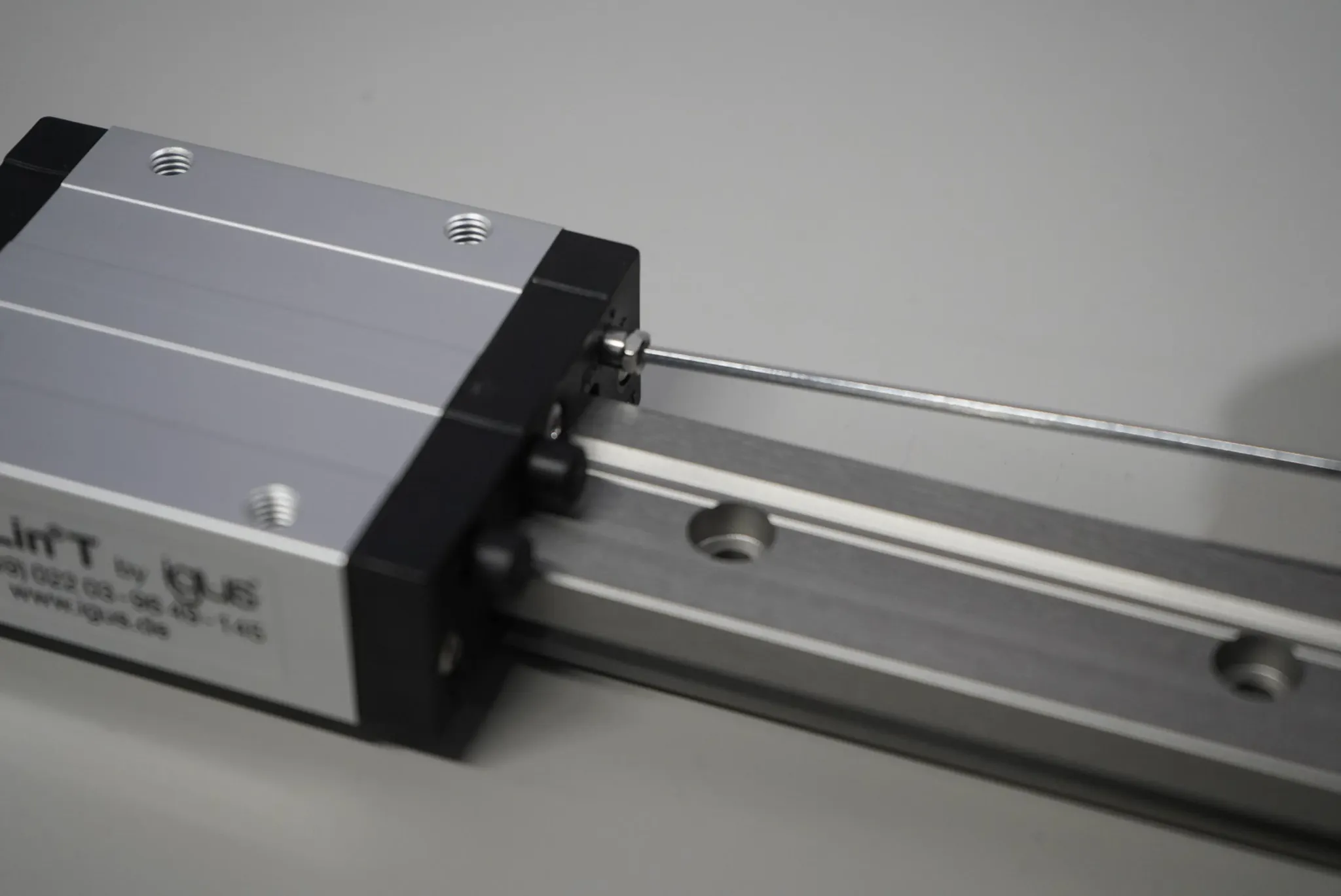

Use an Allen key to adjust the bearing clearance for the 3 guide points. Spanner width:

1.5 mm for TW-01-15 and TW-01-20

2.0 mm for TW-01-25 and TW-01-30

drylin® t clearance adjustment 03

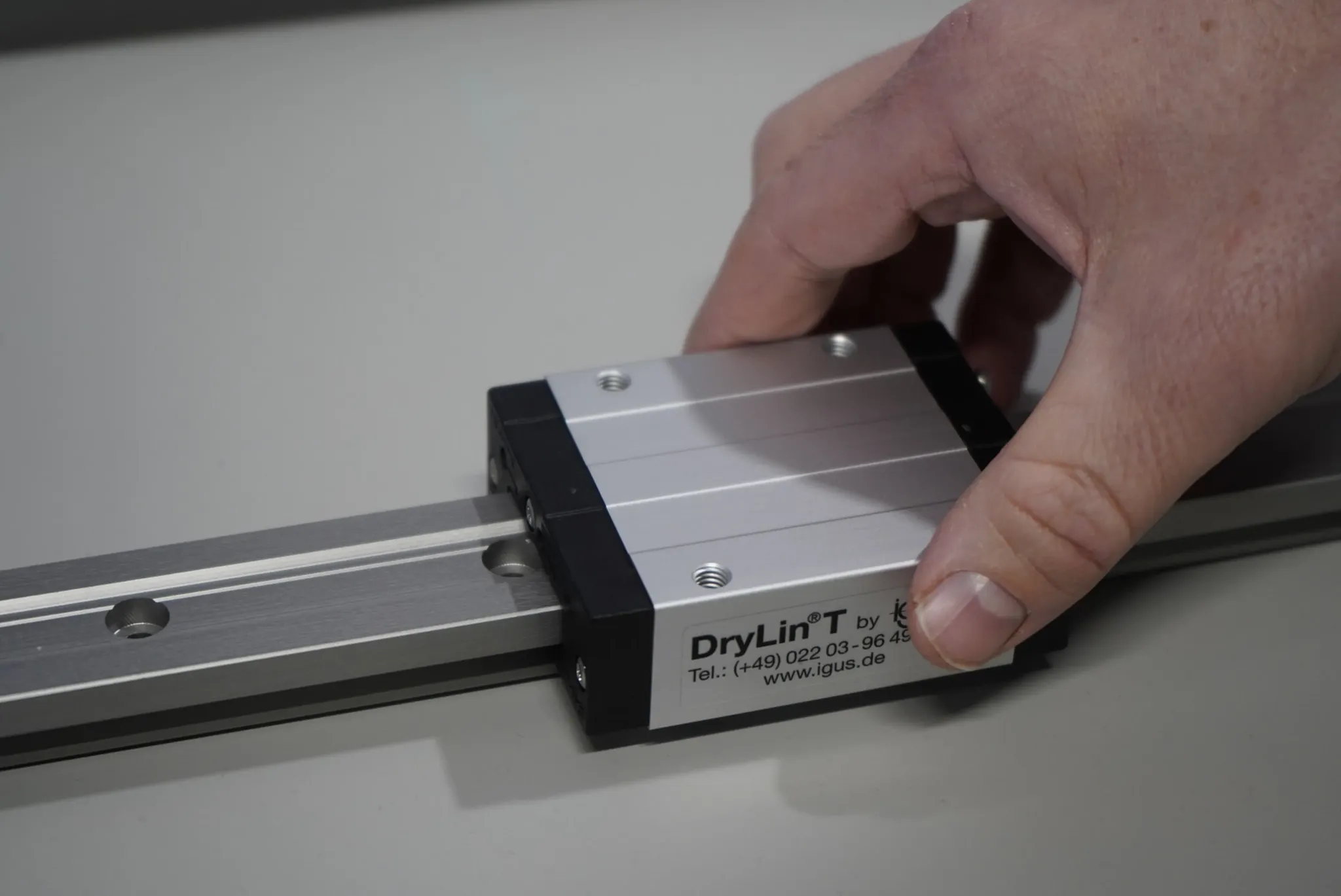

After adjusting, check the clearance of the guide carriages. If it is sufficient, tighten the lock nuts and fit the protective caps.

drylin® t clearance adjustment 04

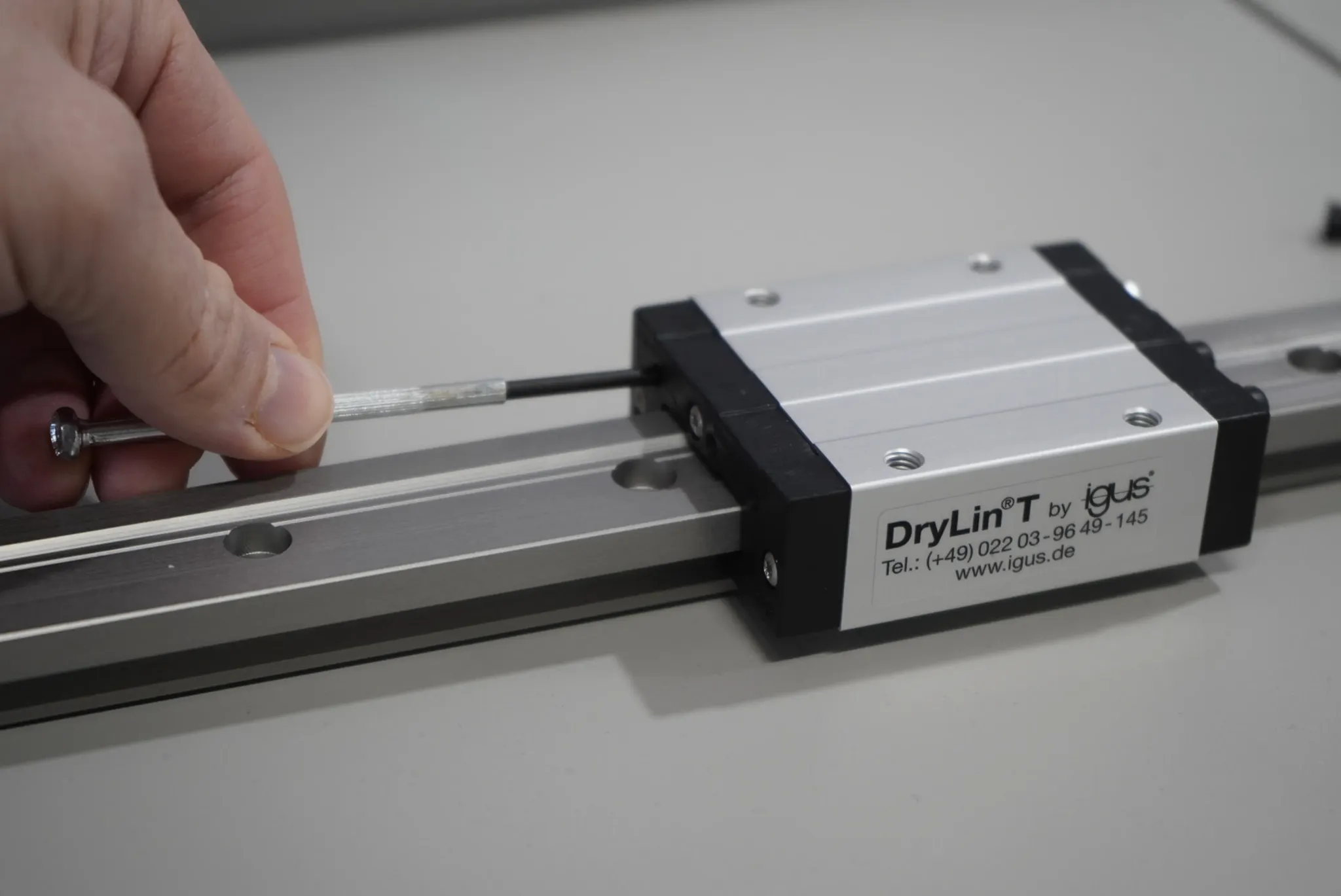

If the clearance has been adjusted too tightly so that the guide carriage is jammed, it is not sufficient to simply reset the Allen screws. After screwing them back in, also press the reset button on the side opposite the screws to release the sliding elements again. Use a pin of the following size for this:

2.5 mm for TW-01-20 and TW-01-15

3.0 mm for TW-01-25

3.0 mm for TW-01-30
