Cartesian robot - drylin® gantry robots

A maintenance-free, low-cost automation solution

What is a cartesian robot?

igus® cartesian robots are motor driven systems available as a flat, line or room gantry. igus® cartesian gantry robots can be bespoke in design for a host of automated tasks in a multitude of industries, performing xyz linear motions. Typical applications for these linear robots are pick and place, sorting, labelling and an array of assembly applications. The cartesian robot are engineered to be quiet and smooth in operation with self-lubricating components that are corrosion and maintenance-free.

Additionally, igus® cartesian robots are supplied with drylin® linear modules along with a NEMA stepper motors for each axis

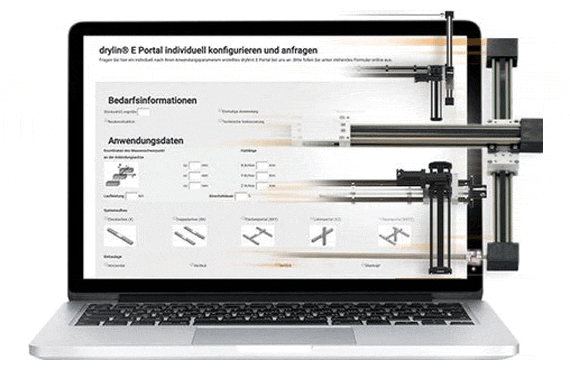

Would you like more information about gantries or do you need an individual consultation? Our experts will be happy to get in touch with you.

Contact an expert

igus® gantries - cartesian robot types

Room gantries

Cartesian robot for xyz movement

For xyz movements

  • Loads up to 5kg
  • Precision requirements up to approx. 0.8mm
  • Speeds up to max. 0.5m/s
Visit the shop

Line gantries

Cartesian robot for forward movements

For movement in one direction

  • For loads up to 5kg
  • For precision requirements up to approx. 0.2mm
  • For speeds up to max. 1m/s
Visit the shop

Flat gantries

Cartesian robot for xy movements

For xy movements

  • Load capacity up to 80N
  • Precision requirements of up to approx. 0.5mm
  • Speeds of up to 1.5m/s
Visit the shop
robot control software for linear robots

igus® Robot Control software

Intuitive robot programming, simulation and control system

Make your automation solution ready for use with igus® Robot Control. Due to the modular design, different robot kinematics can be controlled, for example, delta robots, linear robots and multi-axis joint robots.
You can now download and test the software for free.

Find out more

We use these products for our cartesian robots

Linear axes

Overview of linear axes

Motors

Motors
Overview of motors

Motor control and accessories

Overview of motor control systems
gantry + e-chain

Complete the system and protect your cables

Thanks to the wide range of energy chain systems, we are able to provide a complete gantry system with cables and cable carriers.

This ensures the linear movement has an uninterupted movement and protected energy cables.

For the full energy chain overview click here

Visit the shop

Low Cost Automation education program

The Low Cost Automation education program gives you an insight into the programming of your linear robot with the free "igus Robot Control" software, so that your automation project gets off to a smooth start.

Go to education program
