twisterband

...7000°* rotate...

twisterband module Standard delivery includes the base plates, which are a component of the twisterband module!

twisterband: Compact, modular, economical

1. Base plate with strain relief
2. twisterband segment
3. Four sizes available
4. Some parts available with interior separation
5. Limited length compensation possible
6. Openable with film hinge or openable "easy" design
7. Base plate with strain relief

Rotations in a confined space - 20 times around its own axis With the very compact igus® twisterband, rotations can be achieved cost-effectively, with low wear and low maintenance, even in a confined space and therefore reliably guide energy, data and media.

Five sizes available

7,000°* and more horizontal rotary movement and up to 3,000° in the vertical installation position°* and more horizontal rotary movement and up to 3,000° in the vertical installation position

Rotary speeds up to 180°/s possible

Compact, modular and light

Bands can be shortened as required

Minimum installation spaces, fits tightly around the rotary axis

Can be used reliably in various installation positions (horizontal, vertical, upside down)

Cost-effective

Easy filling

Ideal in combination withigus® chainflex® cables for rotary movements in very limited installation spaces

Industries:
Cable reels, Machine tools, Robots (robot arms, 1/6 axis, scara robots), Leisure rides, medical equipment, radar and telescope equipment, aerospace, test, measurement, handling, lifting and installation equipment, wind turbines (e.g. blade adjustment); wherever rotary unions are used

Picture Integrable hinge: Simple access and quick filling with cables and hoses (TB20.44.18, TB30)
Picture Maximum angle of rotation as a rule of thumb: Hinge for each 180° = 360° more rotation
Picture An axis is to be centrally installed for angles of rotation from 1500° rotating and horizontal
TwisterBand Minimum installation space
TwisterBand Compact, modular and cost effective- horizontal: 7,000° and more possible, vertical up to 3000° rotary movement in the smallest space
TwisterBand Usable in various installation orientations: shown here: horizontal 7,000°* and more rotary motion in confined spaces. Limited length compensation possible

When to use twisterband:

Rotary movements up to 7,000° (depending on installation orientation, vertical: up to 3,000°, horizontal: 7,000° and more possible)

Possible for confined spaces

Rotary speeds up to 180°/s possible

Five sizes available

Some parts available with interior separation (depending on the series)

Very easy to fill, with openable integral hinges or "easy" design system (according to the series)

Limited length compensation possible

When should I take a different series?

For higher fill weights, twisterchain

For 3D movements triflex® R

RBR versions for even higher fill weights

If a lubrication-free and maintenance-free slewing ring bearing for continuous rotary movement is required
iglidur® slewing ring bearings

If you require shielded cables. Please get in contact with us.

twisterband radius

twisterband TB12.23.9 – opening system with ‘easy’ design

Rotation angle [°]:



TwisterBand
Part No. Inner width Internal height X1
Interior
installation space
X2
Exterior
installation space
R
min.
R
max.
d1 MAX.
  [mm] [mm] [mm] [mm] [mm] [mm]
Usually shipped in 10 working days TB12.23.9.3.01.0 23 9 40 140 24 35 7 Upon request Add to shopping cart
Usually shipped in 10 working days TB12.23.9.4.01.0 23 9 40 140 24 35 7 Upon request Add to shopping cart
Usually shipped in 10 working days TB12.23.9.5.01.0 23 9 40 140 24 35 7 Upon request Add to shopping cart
Usually shipped in 10 working days TB12.23.9.6.01.0 23 9 40 140 24 35 7 Upon request Add to shopping cart
Usually shipped in 10 working days TB12.23.9.7.01.0 23 9 40 140 24 35 7 Upon request Add to shopping cart
Usually shipped in 10 working days TB12.23.9.8.01.0 23 9 40 140 24 35 7 Upon request Add to shopping cart
Usually shipped in 10 working days TB12.23.9.9.01.0 23 9 40 140 24 35 7 Upon request Add to shopping cart
Usually shipped in 10 working days TB12.23.9.10.01.0 23 9 40 140 24 35 7 Upon request Add to shopping cart
Usually shipped in 10 working days TB12.23.9.11.01.0 23 9 40 140 24 35 7 Upon request Add to shopping cart
Usually shipped in 10 working days TB12.23.9.12.01.0 23 9 40 140 24 35 7 Upon request Add to shopping cart
Usually shipped in 10 working days TB12.23.9.13.01.0 23 9 40 140 24 35 7 Upon request Add to shopping cart
Usually shipped in 10 working days TB12.23.9.14.01.0 23 9 40 140 24 35 7 Upon request Add to shopping cart
Usually shipped in 10 working days TB12.23.9.15.01.0 23 9 40 140 24 35 7 Upon request Add to shopping cart
Usually shipped in 10 working days TB12.23.9.16.01.0 23 9 40 140 24 35 7 Upon request Add to shopping cart
Usually shipped in 10 working days TB12.23.9.17.01.0 23 9 40 140 24 35 7 Upon request Add to shopping cart
Usually shipped in 10 working days TB12.23.9.18.01.0 23 9 40 140 24 35 7 Upon request Add to shopping cart
Usually shipped in 10 working days TB12.23.9.19.01.0 23 9 40 140 24 35 7 Upon request Add to shopping cart
Usually shipped in 10 working days TB12.23.9.20.01.0 23 9 40 140 24 35 7 Upon request Add to shopping cart
Usually shipped in 10 working days TB12.23.9.21.01.0 23 9 40 140 24 35 7 Upon request Add to shopping cart
Usually shipped in 10 working days TB12.23.9.22.01.0 23 9 40 140 24 35 7 Upon request Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

twisterband TB20.44.12 – opening system with ‘easy’ design

Rotation angle [°]:



TwisterBand
Part No. Inner width Internal height X1
Interior
installation space
X2
Exterior
installation space
R
min.
R
max.
d1 MAX.
  [mm] [mm] [mm] [mm] [mm] [mm]
Usually shipped in 10 working days TB20.44.12.3.01.0 44 12 50 220 34 57 9 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.12.4.01.0 44 12 50 220 34 57 9 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.12.5.01.0 44 12 50 220 34 57 9 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.12.6.01.0 44 12 50 220 34 57 9 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.12.7.01.0 44 12 50 220 34 57 9 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.12.8.01.0 44 12 50 220 34 57 9 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.12.9.01.0 44 12 50 220 34 57 9 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.12.10.01.0 44 12 50 220 34 57 9 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.12.11.01.0 44 12 50 220 34 57 9 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.12.12.01.0 44 12 50 220 34 57 9 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.12.13.01.0 44 12 50 220 34 57 9 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.12.14.01.0 44 12 50 220 34 57 9 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.12.15.01.0 44 12 50 220 34 57 9 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.12.16.01.0 44 12 50 220 34 57 9 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.12.17.01.0 44 12 50 220 34 57 9 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.12.18.01.0 44 12 50 220 34 57 9 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.12.19.01.0 44 12 50 220 34 57 9 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.12.20.01.0 44 12 50 220 34 57 9 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.12.21.01.0 44 12 50 220 34 57 9 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.12.22.01.0 44 12 50 220 34 57 9 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.12.23.01.0 44 12 50 220 34 57 9 Upon request Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

twisterband TB20.44.18 – opening system with lock

Rotation angle [°]:



TwisterBand
Part No. Inner width Internal height X1
Interior
installation space
X2
Exterior
installation space
R
min.
R
max.
d1 MAX.
  [mm] [mm] [mm] [mm] [mm] [mm]
Usually shipped in 10 working days TB20.44.18.3.01.0 44 18 50 220 34 57 14 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.18.4.01.0 44 18 50 220 34 57 14 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.18.5.01.0 44 18 50 220 34 57 14 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.18.6.01.0 44 18 50 220 34 57 14 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.18.7.01.0 44 18 50 220 34 57 14 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.18.8.01.0 44 18 50 220 34 57 14 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.18.9.01.0 44 18 50 220 34 57 14 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.18.10.01.0 44 18 50 220 34 57 14 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.18.11.01.0 44 18 50 220 34 57 14 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.18.12.01.0 44 18 50 220 34 57 14 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.18.13.01.0 44 18 50 220 34 57 14 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.18.14.01.0 44 18 50 220 34 57 14 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.18.15.01.0 44 18 50 220 34 57 14 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.18.16.01.0 44 18 50 220 34 57 14 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.18.17.01.0 44 18 50 220 34 57 14 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.18.18.01.0 44 18 50 220 34 57 14 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.18.19.01.0 44 18 50 220 34 57 14 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.18.20.01.0 44 18 50 220 34 57 14 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.18.21.01.0 44 18 50 220 34 57 14 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.18.22.01.0 44 18 50 220 34 57 14 Upon request Add to shopping cart
Usually shipped in 10 working days TB20.44.18.23.01.0 44 18 50 220 34 57 14 Upon request Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

twisterband TB29.27.22 – opening system with lock

Rotation angle [°]:



TwisterBand
Part No. Inner width Internal height X1
Interior
installation space
X2
Exterior
installation space
R
min.
R
max.
d1 MAX.
  [mm] [mm] [mm] [mm] [mm] [mm]
Usually shipped in 10 working days TB29.27.22.3.01.0 27 22 200 320 69 82 17 Upon request Add to shopping cart
Usually shipped in 10 working days TB29.27.22.4.01.0 27 22 200 320 69 82 17 Upon request Add to shopping cart
Usually shipped in 10 working days TB29.27.22.5.01.0 27 22 200 320 69 82 17 Upon request Add to shopping cart
Usually shipped in 10 working days TB29.27.22.6.01.0 27 22 200 320 69 82 17 Upon request Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

twisterband TB30.75.22 – opening system with lock

Rotation angle [°]:



TwisterBand
Part No. Inner width Internal height X1
Interior
installation space
X2
Exterior
installation space
R
min.
R
max.
d1 MAX.
  [mm] [mm] [mm] [mm] [mm] [mm]
Usually shipped in 10 working days TB30.75.22.7.01.0 75 22 90 330 44 77 17 Upon request Add to shopping cart
Usually shipped in 10 working days TB30.75.22.8.01.0 75 22 90 330 44 77 17 Upon request Add to shopping cart
Usually shipped in 10 working days TB30.75.22.9.01.0 75 22 90 330 44 77 17 Upon request Add to shopping cart
Usually shipped in 10 working days TB30.75.22.10.01.0 75 22 90 330 44 77 17 Upon request Add to shopping cart
Usually shipped in 10 working days TB30.75.22.11.01.0 75 22 90 330 44 77 17 Upon request Add to shopping cart
Usually shipped in 10 working days TB30.75.22.12.01.0 75 22 90 330 44 77 17 Upon request Add to shopping cart
Usually shipped in 10 working days TB30.75.22.13.01.0 75 22 90 330 44 77 17 Upon request Add to shopping cart
Usually shipped in 10 working days TB30.75.22.14.01.0 75 22 90 330 44 77 17 Upon request Add to shopping cart
Usually shipped in 10 working days TB30.75.22.15.01.0 75 22 90 330 44 77 17 Upon request Add to shopping cart
Usually shipped in 10 working days TB30.75.22.16.01.0 75 22 90 330 44 77 17 Upon request Add to shopping cart
Usually shipped in 10 working days TB30.75.22.17.01.0 75 22 90 330 44 77 17 Upon request Add to shopping cart
Usually shipped in 10 working days TB30.75.22.18.01.0 75 22 90 330 44 77 17 Upon request Add to shopping cart
Usually shipped in 10 working days TB30.75.22.19.01.0 75 22 90 330 44 77 17 Upon request Add to shopping cart
Usually shipped in 10 working days TB30.75.22.20.01.0 75 22 90 330 44 77 17 Upon request Add to shopping cart
Usually shipped in 10 working days TB30.75.22.21.01.0 75 22 90 330 44 77 17 Upon request Add to shopping cart
Usually shipped in 10 working days TB30.75.22.22.01.0 75 22 90 330 44 77 17 Upon request Add to shopping cart
Usually shipped in 10 working days TB30.75.22.23.01.0 75 22 90 330 44 77 17 Upon request Add to shopping cart
Usually shipped in 10 working days TB30.75.22.24.01.0 75 22 90 330 44 77 17 Upon request Add to shopping cart
Usually shipped in 10 working days TB30.75.22.25.01.0 75 22 90 330 44 77 17 Upon request Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

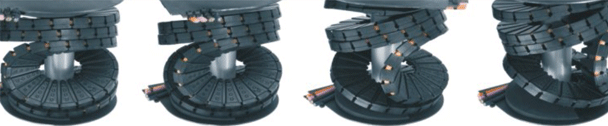

twisterband Example of a twisterband

*horizontal installation type
