drylin® N - Low profile linear guide system long NW-11-27-80

Order no. Max. rail lengths a C4 A3 C5=C6 h h1 K1* ly lz Weight of rail Price / m
  [L max.]       Min. max.       [mm2] [mm2] [g/m]
Usually shipped within 2 working days NS-01-27 3000 27 60 0 20 20/49,5 9 1.1 M4 6524 588 290 £ 33.39 Add to shopping cart
Usually shipped within 2 working days NS-01-27-UNGEBOHRT 3000 27 0 0 0 9 1.1 0 6524 588 290 £ 30.39 Add to shopping cart
Usually shipped within 2 working days NS-01-27-AR 3000 27 60 0 20 20/49,5 9 1.1 M4 6524 588 290 £ 40.08 Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

For unbored rails please indicate "Unbored" in the remark.
* for cylinder screw with low head

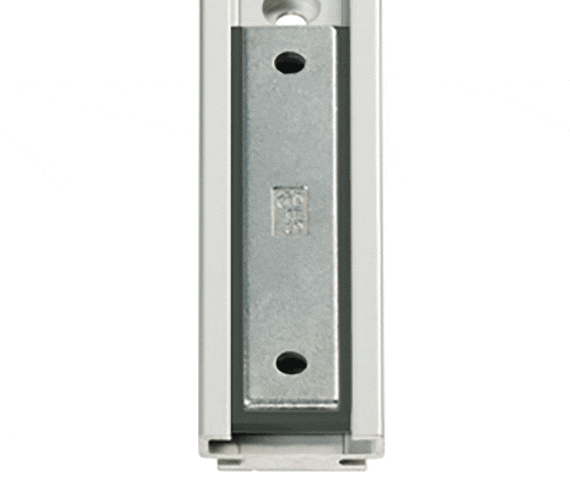

Version 04: Double carriage with through hole

Order no. Designation Weight of carriage
    [g]
Usually shipped within 8 working days NW-11-27-80-LLY Carriage with plain hole, floating bearing y-direction 25 £ 10.12 Add to shopping cart
Usually shipped within 2 working days NW-11-27-80-LLZ Carriage with plain hole, floating bearing z-direction 25 £ 10.12 Add to shopping cart
Usually shipped within 8 working days NW-11-27-80-LLYZ Carriage with plain hole, floating bearing y and z-direction 25 £ 10.12 Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

Version 11: Dimensions [mm] - guide carriages

Part. No. H A C C1 C2 A2 H2 K2 K3 K4 Sp min. Dp Ø min. Weight
  ±0,35                       [g/m]
Usually shipped within 8 working days NW-11-27-80-LLY 9.5 14 80 76 60 0 1.5 0 0 25
Usually shipped within 2 working days NW-11-27-80-LLZ 9.5 14 80 76 60 0 1.5 0 0 25
Usually shipped within 8 working days NW-11-27-80-LLYZ 9.5 14 80 76 60 0 1.5 0 0 25
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

Ordering of a complete system

Configuration in few steps:

1. Selection of the number of carriages
2. Selection of the type of carriage
3. Entry of the rail length in mm
4. Selection of the carriage options
5. Selection of the rails options.

Hint:

Detailed information can be found below in the drawings as well as in the below-mentioned pages. You can obtain precise specifications on the floating bearing options within the design rules.
1

no floating bearing

2

Floating bearing in z-direction

3

Floating bearing in y-direction

4

Floating bearing in yz-direction

drylin® NK-11-27-80 – complete system

Step 1

Enter the required number of carriages.

technical drawing
No. of carriages:

X = Version: one-piece | Y = Version: multi-piece

Usually shipped within 2 working days
Usually shipped within 8 working days
