drylin® N carriage for low profile linear guide system with pretension NW-21-27-60P

Order no. Max. rail lengths a C4 A3 C5=C6 h h1 K1* ly lz Weight of rail Price / m
  [L max.]       Min. max.       [mm2] [mm2] [g/m]
Usually dispatched within 2 working days NS-01-27 3000 27 60 0 20 20/49,5 9 1.1 M4 6524 588 290 £ 32.58 Add to shopping cart
Usually dispatched within 2 working days NS-01-27-UNGEBOHRT 3000 27 0 0 0 9 1.1 0 6524 588 290 Upon request Add to shopping cart
Usually dispatched within 2 working days NS-01-27-AR 3000 27 60 0 20 20/49,5 9 1.1 M4 6524 588 290 £ 48.32 Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

For unbored rails please indicate "Unbored" in the remark.
* for cylinder screw with low head

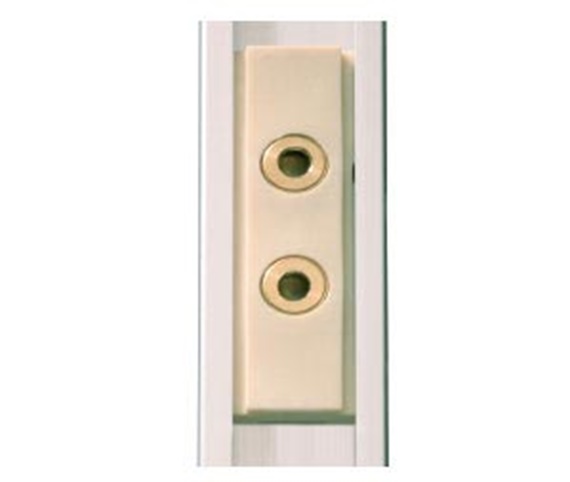

Version 21: Solid polymer carriage with through hole

Order no. Weight of carriage
  [g]
Usually dispatched within 2 working days NW-21-27-60-P 9 £ 13.60 Add to shopping cart
Usually shipped within 15 working days NW-31-27-60-P 9 £ 12.65 Add to shopping cart
Usually shipped within 15 working days NW-32-27-60-P 12 £ 12.65 Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

Ordering of a complete system

Configuration in few steps:

1. Selection of the number of carriages
2. Selection of the type of carriage
3. Entry of the rail length in mm
4. Selection of the carriage options
5. Selection of the rails options.

Note:

Detailed information can be found above in the drawings and tables, as well as in the below mentioned pages. You can obtain precise specifications on the floating bearing options within the design rules.

drylin® NK-21-27-60P – complete system

Step 1

Enter the required number of carriages.

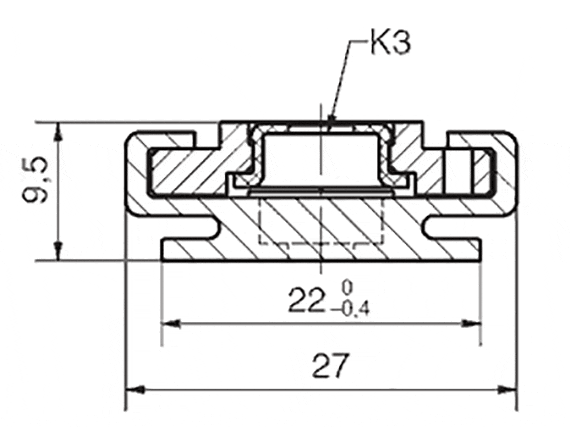

technical drawing
No. of carriages:

Static load capacity and moments of inertia of an area

Usually dispatched within 2 working days
Usually shipped within 15 working days
