Energy chains for long travels and heavy duty purposes

Rolling instead of gliding

Travelling 800m or more is no problem for this group of e-chains®. As a rol e-chain® that reduces the amount of drive power and designed for really long distances or as a heavy duty version for applications where things get exceedingly rough. The P4/P4.1 system is additionally characterised by its very smooth running.

Products

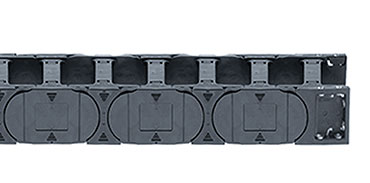

E4.1

E4.1
A series for virtually every application

  • Inner height: 30 to 800mm
  • Crossbars removable along the inner and outer radius
  • For especially demanding applications
  • Undercut design for the best possible lateral stability
  • High push force on long travels and for large unsupported lengths
  • Noise-reducing "brakes" and optional noise dampers
  • Outer and inner side links for quick assembly
  • With or without pretension

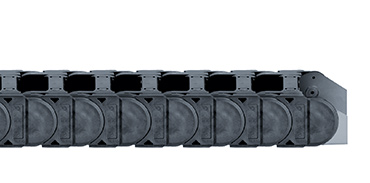

E4/4HD

E4/4HD
High fill weight with long travels

  • Inner height: 56 to 80mm
  • Crossbars every link: crossbars removable along the inner and outer radius
  • High stability
  • For especially demanding applications
  • Ideal for heavy duty applications

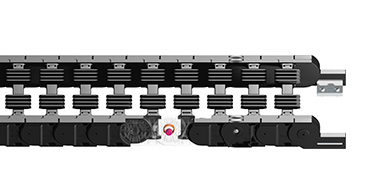

P4.1

P4.1
Friction kept to a minimum, twice the service life

  • Inner height: 32 to 80mm
  • Crossbars every link: crossbars removable along the inner and outer radius
  • Longer service life due to maintenance-free tribo-polymer plain bearings in conjunction with the chain links
  • Long travels of up to 800m and more
  • High fill weight of up to 30kg/m
  • Speeds of up to >5m/s
  • Smart wear monitoring possible

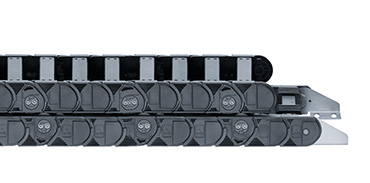

P4

P4
Profile rol e-chain® – reduce energy consumption by up to 57%

  • Inner height: 32 to 80mm
  • Crossbars every link: crossbars removable along the inner and outer radius
  • Long travels of up to 800m and more
  • High fill weight of up to 30kg/m
  • High speeds of up to >10m/s
  • iF Product Design Award 2007

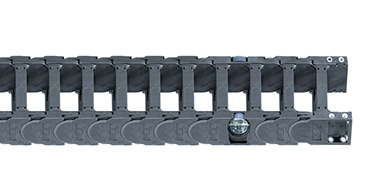

rol e-chain®

rol e-chain®
Rolling instead of gliding

  • Inner height: 32 to 80mm
  • Available in two versions:
    • Crossbars every link
    • Fully enclosed design
  • For especially demanding applications
  • 75% less drive power, rolling
  • Speeds up to 6m/s possible
  • Uniform roller resistance in dirty environments

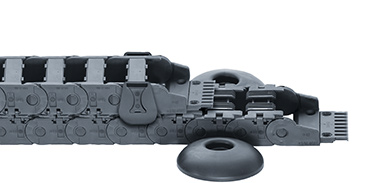

autoglide

autoglide
Self-guiding e-chains® without guide troughs

  • Available in four versions:
    • For the E4.1 system
    • For the E2/000 system
    • Quick filling – simply press cables in
    • Special guiding elements
  • Safe, quiet, abrasion-resistant and energy efficient
  • With travels of up to 80m and speeds of up to 2.5m/s
