E2: Transparent lids
New: Preventative maintenance on E2 E-Tubes, at a glance
An igus® idea from the 80s regains meaning through the
importance of preventative maintenance and can now be
realised, thanks to new, viscoplastic materials that are
transparent and easy to assemble.

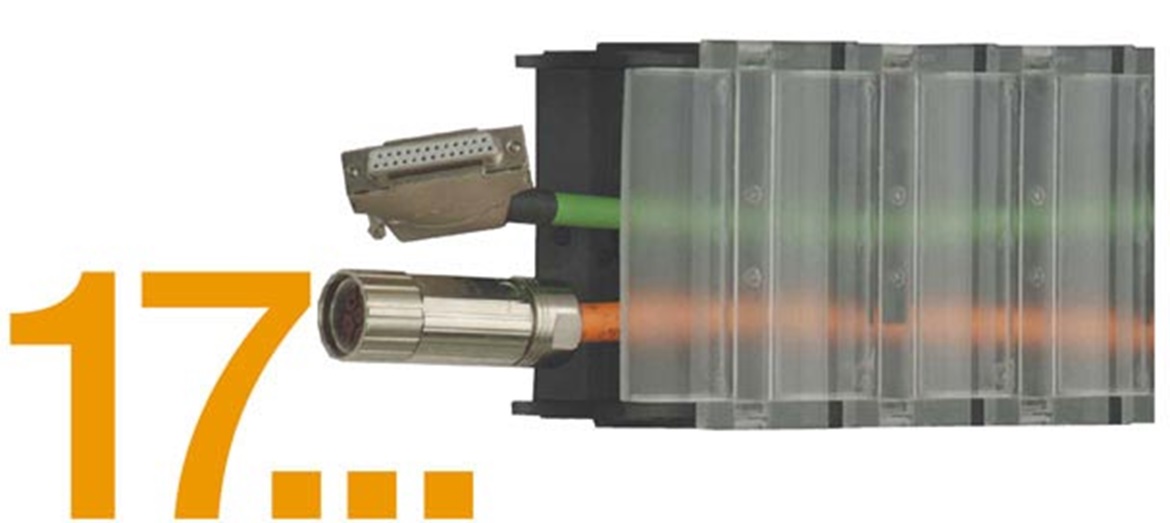

Transparent, scratch-resistant lids from a special plastic material
Spot cable failure early on in time (Not necessary for igus®-chainflex®, because it never fails ;-))
Snap-open, removable lids
Available upon request for E-Tubes series R48, R58, R68, R118, R158 and R168
Industries: Machine tools, woodworking machines, machine building
Program range, upon request:
| For Series | Iinner height | Outer width | Outer width | Outer height | Bending radii | Unsupported lenght |
|---|---|---|---|---|---|---|
| Hi [mm] | Bi [mm] | Ba [mm] | Ha [mm] | R [mm] | ||
| R117/118 | 21 | 20-100 | 32-112 | 28 | 63-180 | 1,20 |
| R157/158 | 40 | 40-200 | 56-216 | 50 | 100-250 | 2,25 |
| R167/168 | 50 | 50-250 | 68-268 | 64 | 100-300 | 2,50 |
| R48 | 25 | 25-130 | 36-141 | 36 | 60-250 | 1,50 |
| R58 | 35 | 50-200 | 66-216 | 50 | 75-250 | 2,30 |
| R68 | 45 | 50-250 | 68-268 | 64 | 100-300 | 2,50 |
* Delivery upon request
