igus® LeviChain

New: Magnetic e-chain system® – It "floats". It’s available!

Virtually contactless energy supply for long travels - low noise, low wear, safe and available!

Levitare, latin, "float"

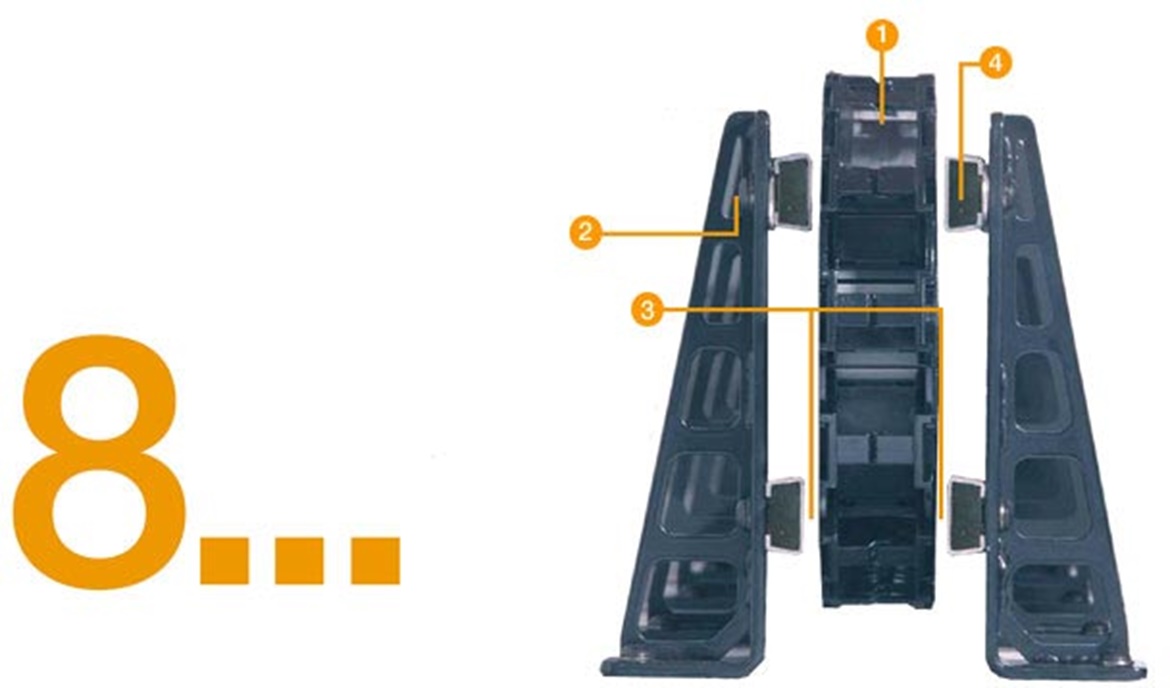

1 Modular igus® e-chain® in different widths and bending radii, "magnet free"
2 Support elements

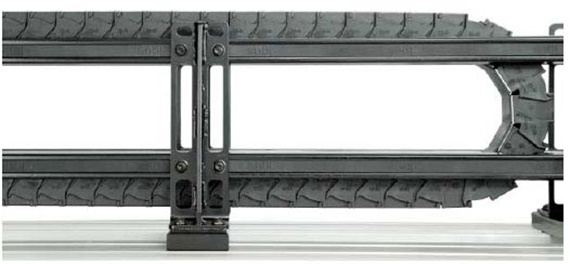

3 Contactless guidance of upper run and (optional) lower run
4 Magnet modules
Definition of "floating", acc. to Meyers encyclopedia, vol. 21, 1977: To be located freely within a liquid or gas, without protruding a surface (i.e. water surface). term used for illustration

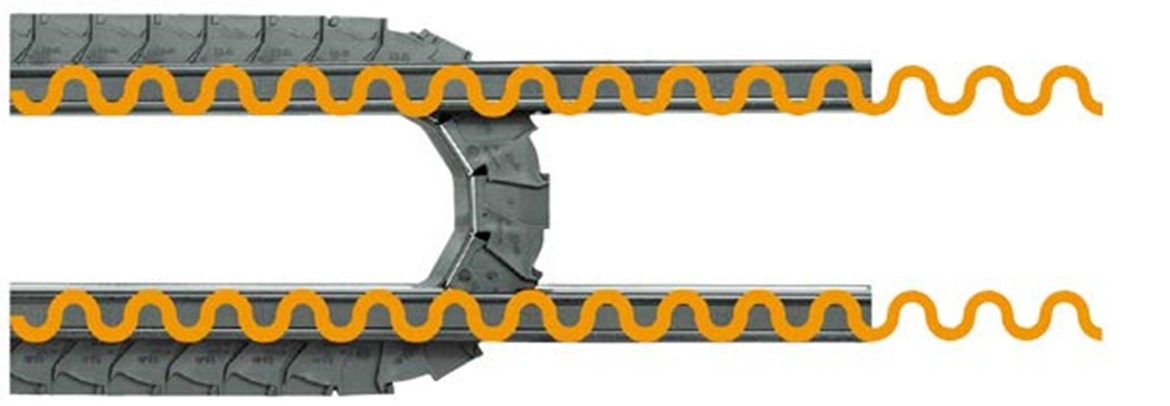

The principle of magnetic "floating" is based on the attractive forces of a magnetic field, centering on all sides. Due to this "centering", the e-chain® moves nearly contactless with very low friction and wear characteristics and minimal wear.

Unsupported configuration, even for very long travels. Upper and lower run will never come in contact with each other. The lower run can be "floating" as well (optional).

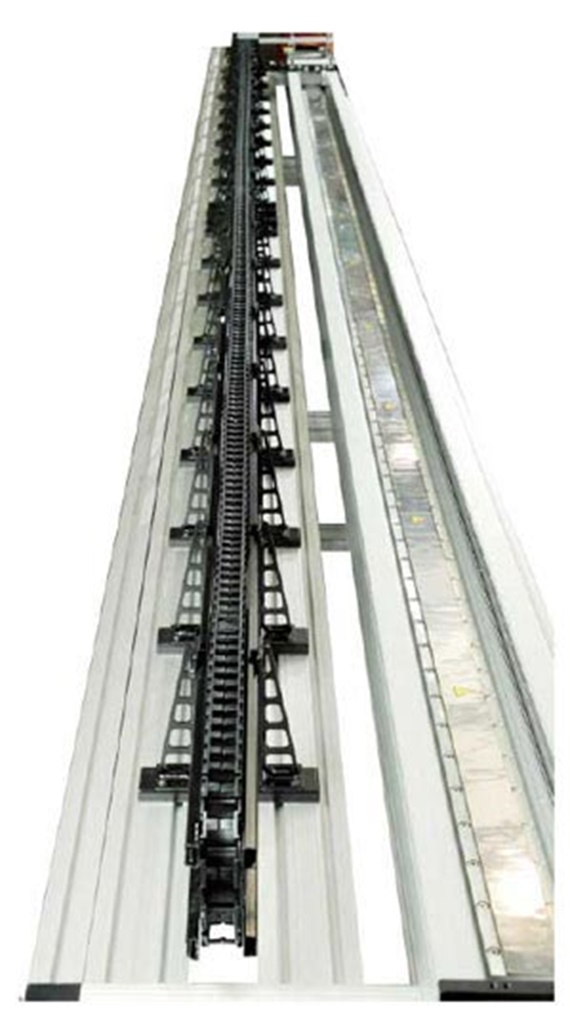

igus® LeviChain allows for long travels up to 40m, high speed and acceleration, with almost no contact between chain and guide trough

Long travels without gliding of the e-chain® on itself

Nearly wear-free through low wear e-chains® with no pin/bore link connection and virtually contactless motion

igus® LeviChain is very quiet [41,7 dB(A) in 1 m distance], relative to other energy supply systems, with almost no rolling and sliding noise

High speed, acceleration and good deceleration characteristics

Easy harnessing, even when e-chain® is already installed, thanks to the proven igus® "Easy" design

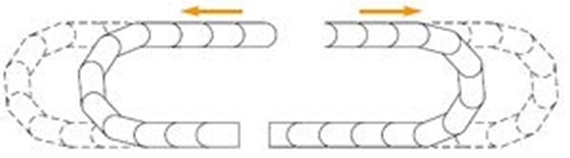

Upper and lower run can move independently off each other, allowing for asymmetrical motion

Horizontal and vertical installation possible

Low space requirement in height and width

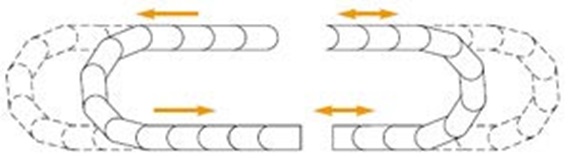

2 e-chains®, opposed

Offset motion possible

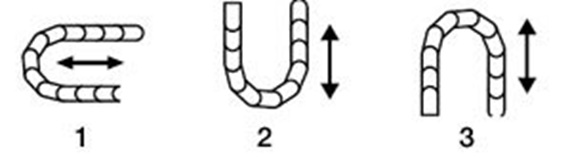

1 Horizontal applications
2 Vertically hanging applications
3 Vertically standing applications

Easy cable installation through proven "Easy" design

Technical data and specifications

Applications:

Clean rooms

Paint shops, painting equipment

Medical equipment

Measuring devices

Electronics manufacturing

Storage systems and material handling

Industrial robots

Max. fill weight 4 kg/m. Travels up to 40 m.

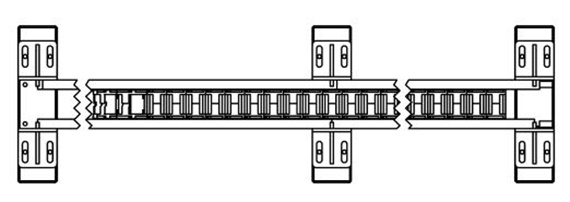

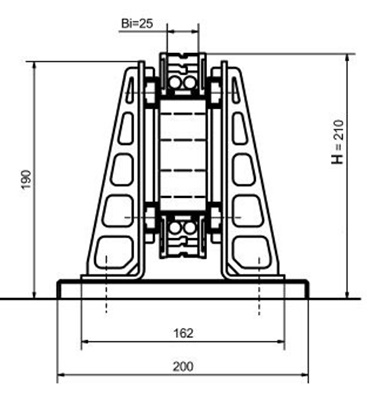

H = max. installation space

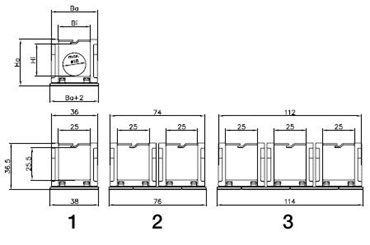

1. 1-band version
2. 2-band version
3. 3-band version

Available as 2- or 3-band version too

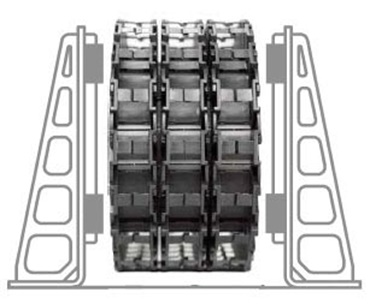

Center mounted

Part Number	Bending	Max.	Magnet
	radii R	travel S	modules	Bi [mm]	Hi [mm]	Ba [mm]	Ha [mm]
LV.25.25.	.	.	.	25	25,5	36	36,5	Inquiry
LV.25.2/25.	.	.	.	2 x 25	25,5	74	36,5	Inquiry
LV.25.3/25.	.	.	.	3 x 25	25,5	112	36,5	Inquiry

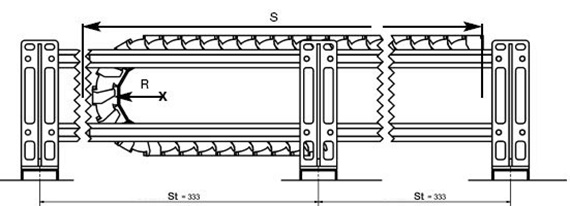

Travel S (min. 1000 mm, steps 25 mm lenghts)

Magnet modules:
M: Magnet module
B: Support tray
MM: Magnet modules above/below
MB: Magnet modules above, Support trays below

Option setup
RL = Opposed run (e-chain® right and left)

Order example: LV.25.3/25.125.1500.MM
LV = igus® LeviChain-System
25 = Inner height Hi
3 = 3-band-version
25 = Inner width Bi
125 = Bending radius
1500 = travel
MM = above/below assembled magnet modules
