E2/000: Mounting brackets

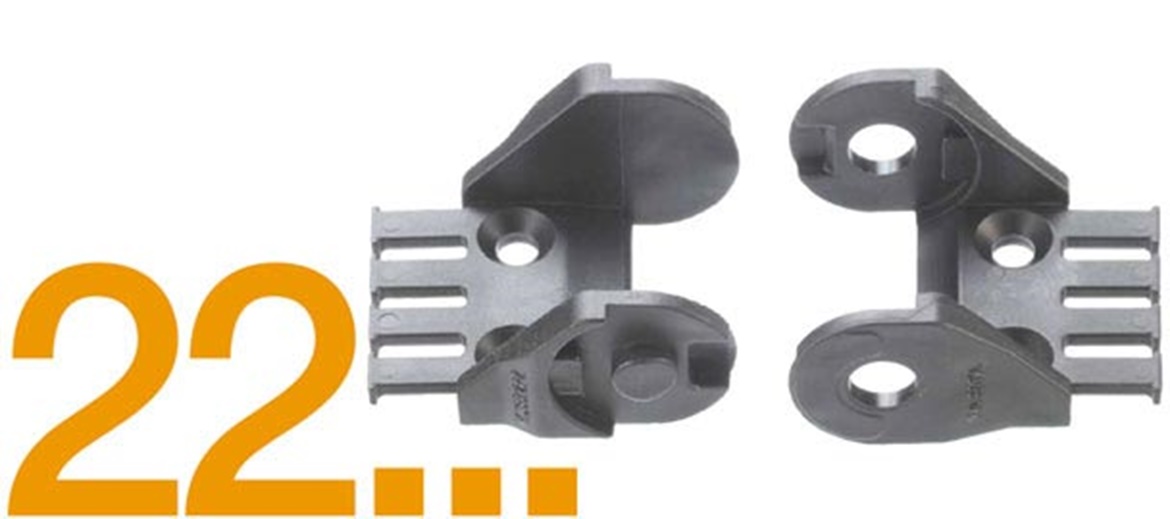

New: 1-piece mounting brackets with tie wrap option, for smallest E2/000 sizes

Practical mounting brackets for the smallest sizes of the "Standard" E2/000 series:

Sturdy 1-piece brackets

Integrated strain relief

Pivoting (standard) or locking version**

Easy assembly

For all e-chain® series   1400, 1450, 1480, 1500

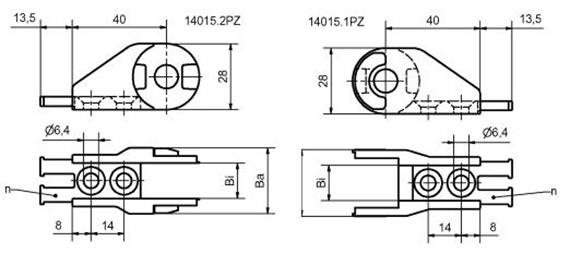

Mounting brackets for Bi 15 and 20

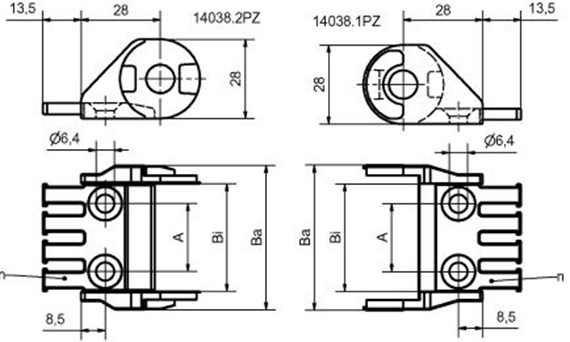

Mounting brackets for Bi 25 up to 125
Part.-No. Series Outer hight Inner width Outer width   Number tooth
pivoting/locking**   ha [mm] Bi [mm] Ba [mm] A n
14015. PZ* 1400 28 15 28,4 - 2  Inquiry
14020. PZ* 1400 28 20 33,4 - 2  Inquiry
14025. PZ* 1400 28 25 38,4 13 2  Inquiry
14038. PZ* 1400 28 38 51,4 24 4  Inquiry
14050. PZ* 1400 28 50 63,4 36 5  Inquiry
14065. PZ* 1400 28 65 78,4 51 7  Inquiry
14080. PZ* 1400 28 80 93,4 66 8  Inquiry
14100. PZ* 1400 28 100 113,4 86 10  Inquiry
14125. PZ* 1400 28 125 138,4 111 13  Inquiry

* Available starting summer 2006
** pivoting: ".34" (upon request)/locking: ".12"
