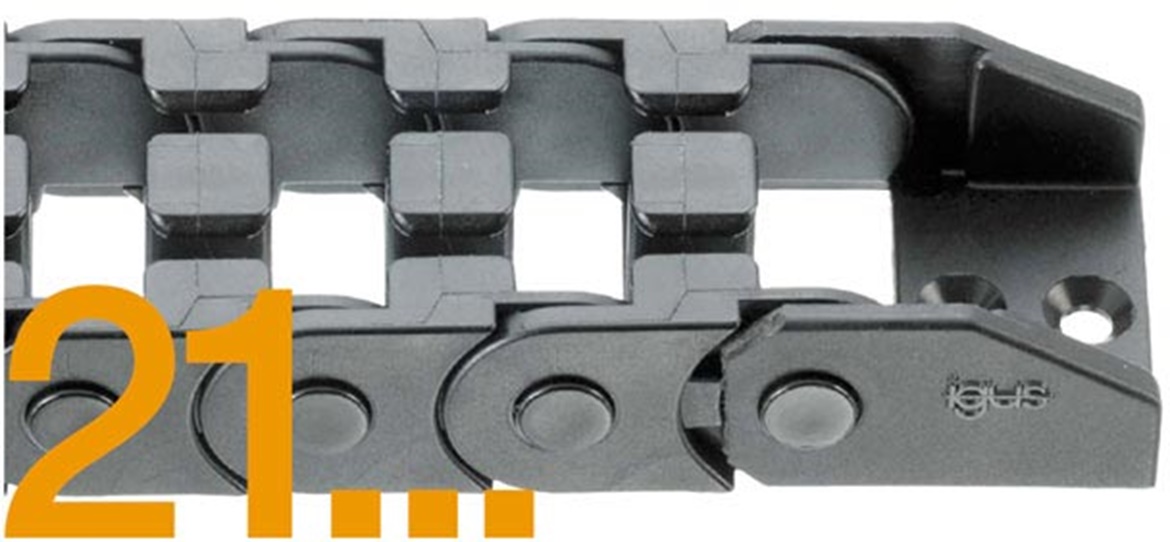

EasyChain® E065
New: Stronger Micro EasyChain® with separated compartments
The worldwide successful EasyChain® series now available in smaller sizes:
High strength through longer link pitch
Low cost
Multiple, molded-in compartments for cable separation
Very easy to fill
Mounting brackets with integrated strain relief available
Industries: Machine building, industrial gates

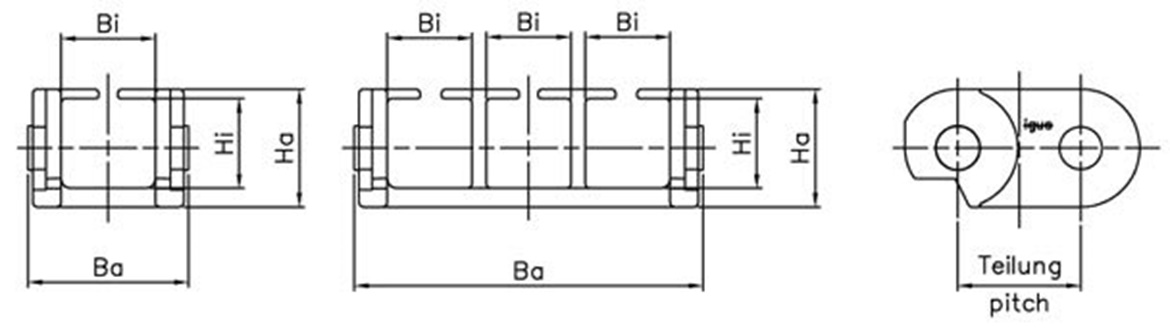

| Series | Inner height | Outer height | Inner width | Outer width | Bending radii | Pitch | Links/m | ||
|---|---|---|---|---|---|---|---|---|---|
| R | Hi[mm] | Ha[mm] | Bi[mm] | Ba[mm] | R[mm] | ||||
| E065.10. | .0* | 11,4 | 15 | 10 | 18,8 | 018, 028, 038 | 15 | 67 |  Inquiry |
| E065.16. | .0* | 11,4 | 15 | 16 | 24,8 | 018, 028, 038 | 15 | 67 | Inquiry |
| E065.2/9. | .0 | 11,4 | 15 | 2 x 9 | 28,8 | 018, 028, 038 | 15 | 67 | Inquiry |
| E065.3/9. | .0* | 11,4 | 15 | 3 x 9 | 38,8 | 018, 028, 038 | 15 | 67 | Inquiry |
| E065.4/9. | .0* | 11,4 | 15 | 4 x 9 | 48,8 | 018, 028, 038 | 15 | 67 | Inquiry |
* Available starting summer 2006
