Clamps for energy chains and protective hoses on cobot robot arms

For secure attachment of the energy chain or the protective hose to the robot, the user can now rely on the new cobot clamps from igus®.

The universal retaining fixtures with hook and loop fasteners are flexible in shape and adapt to any robot arm. A slim design with rounded edges reduces the risk of injury if there is contact with the robot.
The new clamp is available in various designs and suitable for use with the triflex® R series TRC/TRE/TRL 30 and 40 and for all commercially available protective hoses of various diameters.

Would you like more information about cobot clamps or triflex® R chain? Our experts will be happy to get in touch with you.

Contact an expert

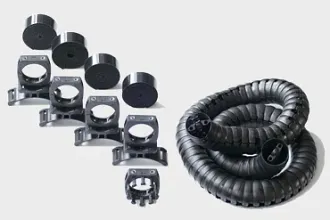

Selection of cobot clamps

Standard clamp

1 x Polymer bracket
1m hoop and loop strip
Most cost-effective clamp in the range

Shop Now

with strain relief

1 x Polymer bracket
1m hoop and loop strip
40 size option with long or short strain relief teeth

Shop Now

without strain relief

Cobot clamp with mounting bracket, no strain relief

1 x Polymer bracket
Suitable for TRE, TRC & TRL in size 30 or 40
Silicone-free

Shop Now

with protector

1 x round protector size 40
Protector can guide TRE, TRC & TRL in size 40
Silicone-free

Shop Now

with PMA clip

PMA Clip
Available in 5 sizes for corrugated hoses:
Ø17mm, Ø23mm, Ø29mm, Ø36mm and Ø48mm

Shop Now

Assembly of cobot clamps

This video shows you the following content:

► Inserting cables and/or hoses into the TRE.B version by simply pressing them into the energy chain from the outside
► Connecting two chain links together
► Connecting the Velcro strap to the cobot clamp
► Fitting the cobot clamp to the cobot
► Correctly connecting/inserting the energy chain with the cobot clamps

triflex® R mounting brackets for universal robots (metal)

As a manufacturer of high-quality, hard-wearing, lightweight and, in this case, cost-effective polymer parts, we have long considered simply discontinuing the Universal Robots metal clamps from our range. Because the new cobot clamps are actually so much better.

However, there are also supporters/lovers of this part, which is why we decided to leave it online after all.

Decide for yourself, but the delivery time of the new cobot clamps is also significantly shorter.

Application example with metal clamps

Safe cable guidance with triflex® R on Universal Robots, which the new cobot clamps also do
Simple but much slower connection with screw clamps compared to the new cobot clamps.
For 2 triflex® R sizes - Ø 30 and 40
Only for UR3, UR5 and UR10. The new cobot clamps also fit on the UR16
For TRC, TRE and TRL e-chains®.
