drylin® lead screw drives
application examples

Screw drives are machine elements that convert rotary movement into linear motion. dryspin® screw drives are always based on self-lubricating plastic nuts, thus enabling long-lasting operation without external lubrication. The dryspin®

lead screw technology is based on the principle of lubrication-free linear technology. With specifications and shapes matching the polymer nut and lead screw, drylin® lead screw technology and the dryspin® technology guarantee an even longer service life and efficiency.

Applications according to industrial sectors


3D printing

3D printers

Miniature 3D printer

This 3D printer is only ten centimetres high, but prints objects of the highest quality.


Vending machinery

Vending machinery

Book scanner

Lubrication-free drylin® trapezoidal lead screw nuts are used in a book scanner for the digitalisation of cultural assets.


Automation

Automation

Gunda automation solution

Compact automation solution with high quality that is easy to operate


Automotive

Automotive

Front spoiler

A lead screw drive that is fitted on the outside of the vehicle, is exposed to water and dirt and nevertheless functions perfectly

Rear bench seat adjustment

An electrically operated lead screw drive inside the vehicle for adjustment of the rear bench seat.

Tailgate drive

An electrically operated lead screw drive is responsible for opening and closing the boot lid fully automatically.


Rail industry

Rail industry

Gap bridging

No jamming or sluggishness during continuous sliding step operation


Switchgear

Use of high helix lead screw nut with flange in a switchgear ("linear switch") for a railway control panel.



Construction machinery

Construction machinery

Levelling device

This device assists in levelling dry fills.




Facade technology

Facade technology

Sunblinds

No matter how much sun shines, these sun shades ensure pleasant lighting conditions in the building.


Process engineering

Fluid technology

Shut-off valve

Error-free workflow in process technology



Filling system

This machine fills paint into buckets.



Double-component mixing station

drylin® trapezoidal lead screw nuts and iglidur® high-performance polymer in two-component mixing station.



Beverage industry

Beverage industry

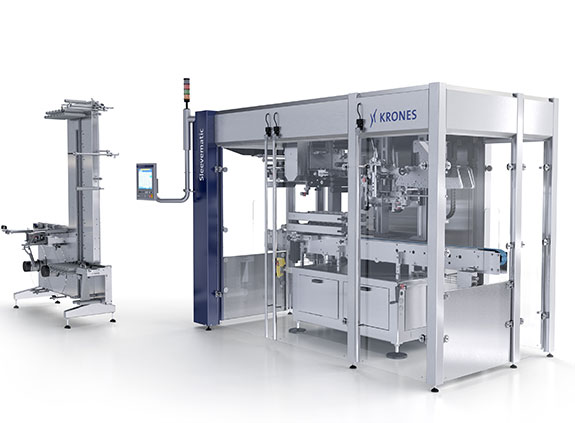

Labelling machine

Dry operating high-performance polymers from igus® enable a wide range of settings in Krones' labelling machines.

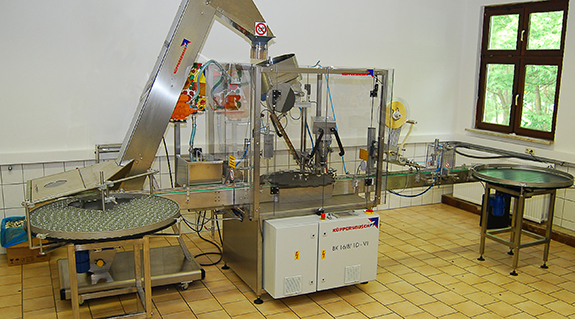

Beverage filling system

The Küppersbusch GmbH manufactures customer-specific beverage bottling systems with igus® bearing technology.


Wood Industry

Wood Industry

Paper processing machine

Clearance-free pre-loaded nuts enable precise and maintenance-free adjustment of the formats during format adjustment in the paper industry.


Camera technology

Camera technology

Camera mount

This holder is used for recordings with 3D cameras.

Installation angle adjustment

The drylin® trapezoidal lead screw nut was chosen for this application because it is lubrication-free and can be infinitely adjusted.


Food industry

Food industry

Commercial kitchen equipment

Chemical-resistant and corrosion-free: maintenance-free polymer plain bearings in commercial kitchen appliances.

Wafer baking plant

Rugged lead screw linear system for extracting paper ice cream cones.






Medical

Medical technology

Filling system in laboratory technology

A clean bottling, which does not have to be sterile, but has to be very clean, and a low overall weight of the system

Laboratory unit for liquid handling

An extremely clean application of the igus products, as well as high efficiency and a fast feed

MRI robots

MRI-compatible robot

A simple installation of the parts, low maintenance effort and the best MRI compatibility



Rehabilitation equipment

In this rehabilitation device drylin® lead screw nuts are used for
format adjustment.

Laser marking system

Among other things, the use of drylin® made it possible to halve the weight
of this laser marking station for the locking of samples.


Model making

Model making

Hot wire cutter

This machine cuts figures and elements from polystyrene blocks.

Hot wire cutting machine

With this hot wire cutting machine polystyrene parts are cut, which are mainly used in model aircraft construction.


Furniture construction

Furniture making / Industrial design

Edge banding machine

Lubrication-free and clearance-free lead screw/nut system ensures precise glue application in edge banding machines.

DIY beer lift

Effortless raising and lowering  with the relevant load, low expenditure, no need for lubrication or maintenance, weather resistance


Robots

Robots

Chess computer

Thanks to the drylin® TR high helix lead screw nuts used in two chess computers, large strokes can be covered in a very short time.


Solar technology

Solar technology

Solar panel

Smooth operation under extreme ambient conditions


Textile industry

Textile industry

Leather splitting machine

Precise and durable - plastic plain bearings for a new type of leather splitting machine


Packaging industry

Packaging industry

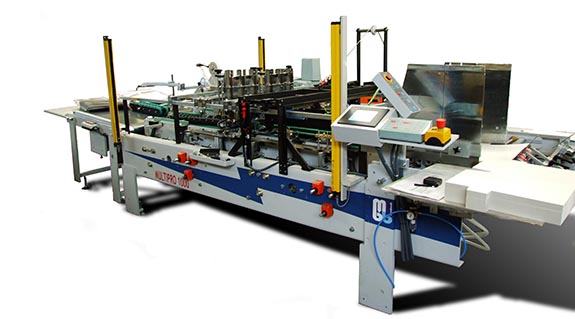

Folding and gluing machine

When designing customer-specific folding box gluers, the special machinery manufacturer Bernhardt Maschinenbau relies on lubrication-free and maintenance-free linear plain bearings.


Heat and thermodynamics

Heat and thermodynamics

Folding and gluing machine

When designing customer-specific folding box gluers, the special machinery manufacturer Bernhardt Maschinenbau relies on lubrication-free and maintenance-free linear plain bearings.
