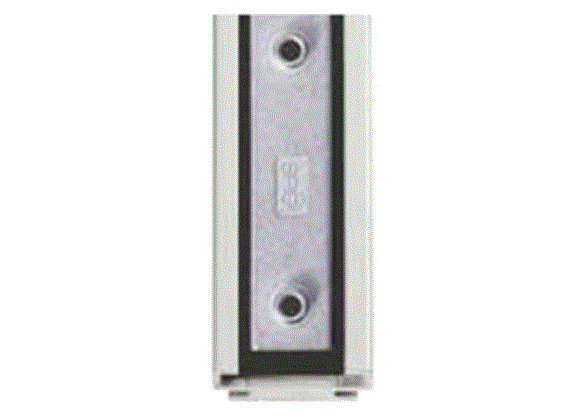

drylin® N - Low profile linear guide system NK-12-27-80

Version 02 - standard with threaded pin
Part No. Max. rail lengths a C4 A3 C5=C6 h h1 K1* ly lz Rail weight Price / m
  [L max.]       Min. max.       [mm2] [mm2] [g/m]
Usually dispatched within 2 working days NS-01-27 3000 27 60 0 20 49.5 9 1.1 M4 6524 588 290 £ 32.58 Add to shopping cart
Usually dispatched within 2 working days NS-01-27-UNGEBOHRT 3000 27 0 0 9 1.1 0 6524 588 290 Upon request Add to shopping cart
Usually dispatched within 2 working days NS-01-27-AR 3000 27 60 0 20 49.5 9 1.1 M4 6524 588 290 £ 48.32 Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

For unbored rails please indicate "Unbored" in the remark.
* for cylinder screw with low head

Version 12 - coated with threaded hole:

Order no. Designation Weight of carriage
    [g]
Usually dispatched within 2 working days NW-12-27-80 Carriage 25 £ 19.92 Add to shopping cart
Usually dispatched within 2 working days NW-12-27-80-LLZ Carriage, floating bearing z-direction 25 £ 19.92 Add to shopping cart
Usually shipped within 15 working days NW-12-27-80-LLY Carriage, floating bearing y-direction 25 £ 19.92 Add to shopping cart
Usually dispatched within 2 working days NW-12-27-80-LLYZ Carriage, floating bearing y- und z-direction 25 £ 19.92 Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

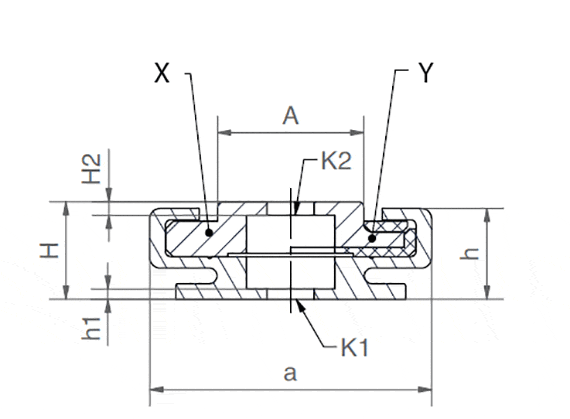

Version 12: Dimensions [mm] - guide carriages

Part No. H A C C1 C2 H2 K K3 Spmin. DpØmin. Weight
  ±0,35                       [g/m]
Usually dispatched within 2 working days NW-12-27-80 9.5 14 80 76 60 1.5 0 M4 5 6.5 25 £ 19.92 Add to shopping cart
Usually dispatched within 2 working days NW-12-27-80-LLZ 9.5 14 80 76 60 0 0 M4 5 6.5 25 £ 19.92 Add to shopping cart
Usually shipped within 15 working days NW-12-27-80-LLY 9.5 14 80 76 60 0 0 M4 5 6.5 25 £ 19.92 Add to shopping cart
Usually dispatched within 2 working days NW-12-27-80-LLYZ 9.5 14 80 76 60 0 0 M4 5 6.5 25 £ 19.92 Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

Ordering of a complete system

Configuration in few steps:

1. Selection of the number of carriages
2. Selection of the type of carriage
3. Entry of the rail length in mm
4. Selection of the carriage options
5. Selection of the rails options.

Hint:

Detailed information can be found below in the drawings as well as in the below-mentioned pages. You can obtain precise specifications on the floating bearing options within the design rules.

1

no floating bearing

2

Floating bearing in z-direction

3

Floating bearing in y-direction

4

Floating bearing in yz-direction

drylin® NK-12-27-80 – complete system

Step 1

Enter the required number of carriages.

technical drawing
No. of carriages:

X = Version: one-piece | Y = Version: multi-piece


Usually dispatched within 2 working days
Usually shipped within 15 working days
