igubal® swivel joint

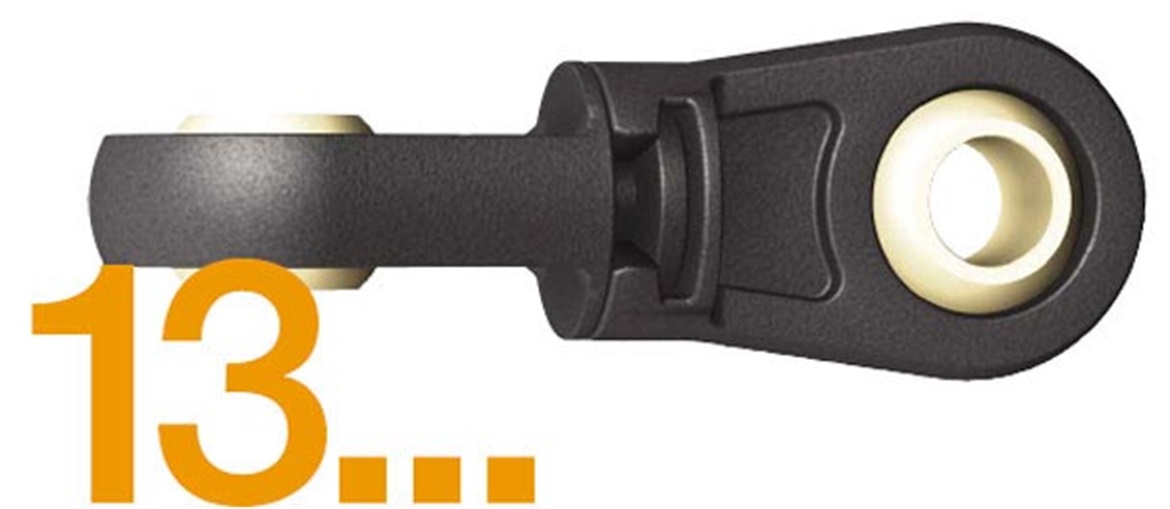

New: igubal® Swivel joint – moves freely around its own axis

This new swivel joint moves freely around its own axis as well as compensates for misalignment.

Moves freely around its own axis

Additional degree of freedom

Turns 360 degres around the z axis

Maintenance free

High tensile strength

Industries: Measuring and control technology, machinery, assembling fixtures

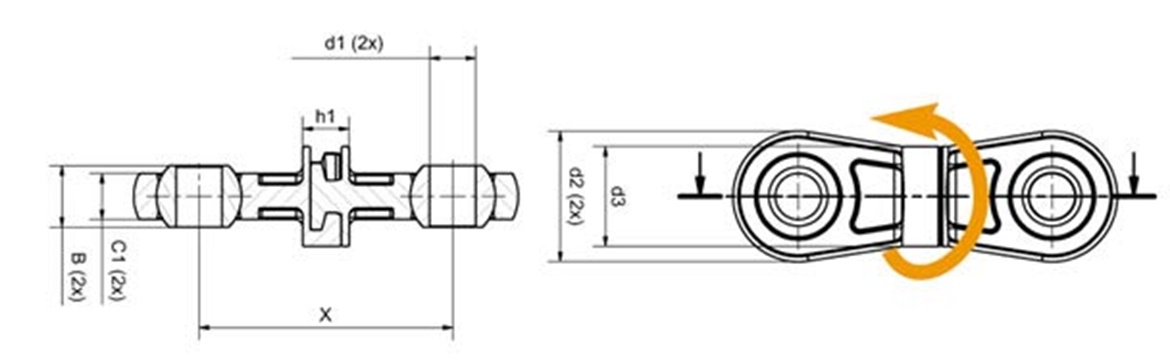

Part No. d1 (E10) d2 d3 h1 X C1 B
  [mm] [mm] [mm] [mm] [mm] [mm] [mm]
KDGM-12 12 34 26 12,4 65,6 12 16  Inquiry

More information

Swivel joint KDGM in use
