CFLG - New generation
New: 55 mm bending radius with glass fibre optic cables
Glass fibre optic cables have the reputation of not being able to be used with small radii. But this is not necessarily the case. The very latest generation of chainflex®-CFLG with 1 or 2 fibres (50/125 μm) is advancing into new Energy Chain® applications with bending radii of only 55 mm!

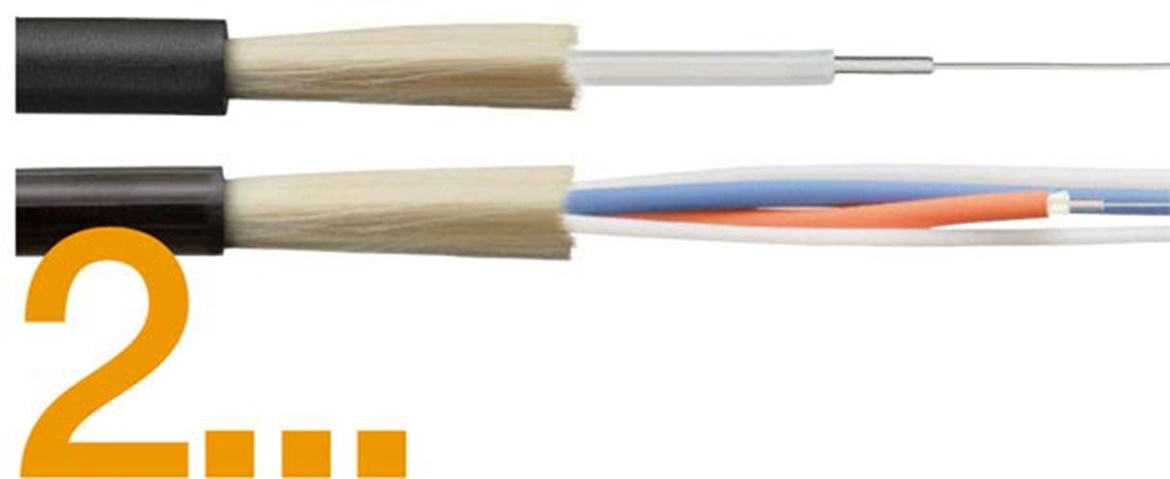

CFLG.1.AG.50/125
A 50/125 μm fibre surrounded by aramide fibres for strain relief under a highly abrasion-resistant PUR sheath
Bending radius 55 mm
CFLG.2AG.50/125
Two 50/125 μm fibres surrounded by aramide fibres for strain relief with a particularly short pitch length, braided under a highly abrasion-resistance PUR sheath.
Bending radius 55 mm
| Part No. | Number of fibers | Fiber diameter | Ext. diameter | Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [µm] | [mm] | [kg/km] | ||||||||||||
| CFLG.1AG.50/125 | 1 | 50/125 | 3,5 | 19 |  Inquiry |
|||||||||
| CFLG.2AG.50/125 | 2 | 50/125 | 7,5 | 31 | Inquiry |
|||||||||
| Part No. | Bandwidth | Attenuation | Bandwidth | Attenuation | ||||||||||
| w. 850 nm | w. 850 nm | w. 1300 nm | w. 1300 nm | |||||||||||
| [MHz x km] | [dB/km] | [MHz x km] | [dB/km] | |||||||||||
| CFLG.1AG.50/125 | 200 - 600 | 2,5 - 3,5 | 600 - 1200 | 0,7 - 1,5 | Inquiry |
|||||||||
| CFLG.2AG.50/125 | 200 - 600 | 2,5 - 3,5 | 600 - 1200 | 0,7 - 1,5 | Inquiry |
|||||||||
* Delivery time upon inquiry
