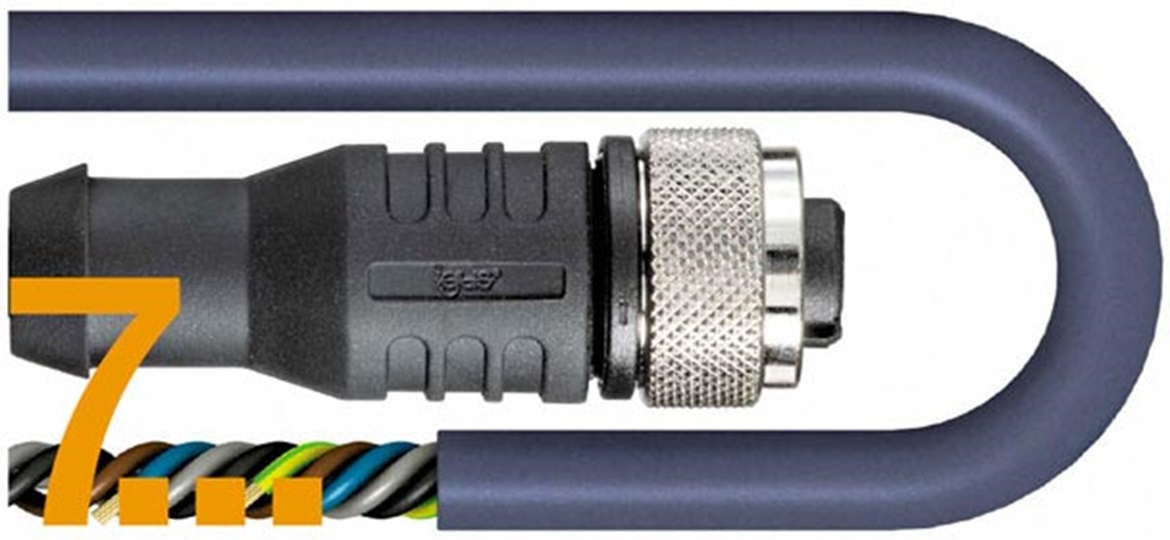

CF98.INI with connectors
New: 4 x d – more than 60 million cycles tested
The almost legendary series CF9.INI with overmolded M8 and M12 connectors supplemented by the even more heavy duty CF98.INI.
Given the same application parameters, CF98 achieves up
to 30 times longer cycle life, compared with CF9.INI. Even
bending radii as small as 4 x d are safely resolved thanks
to CF98.INI with its unique alloy conductors!

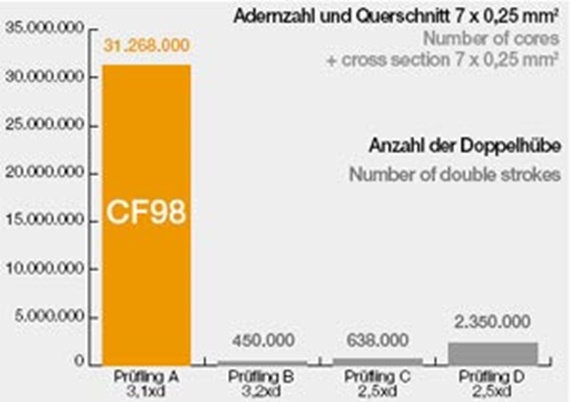

Four different cable designs were inspected:
A – conductor with special conductor alloy; B – conductor
same as test item A, but in copper; C – conductor in braided
structure; D – conductor in stranded construction

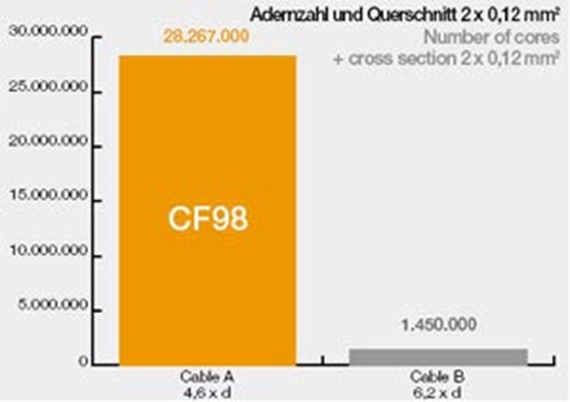

Two different cable designs were tested, whereby different core numbers and cross-sections were selected in comparison with test 1: A – conductor with special conductor alloy; B – conductor in copper.
