igubal® up to 200°C

igubal® is now available for use in corrosive and hightemperature environments (Ø 6,8, 10 mm):

Resistant to chemicals and ambient temperatures up to 200°C

Can be used under water

Available in igubal® series E

Industries: food, medical technology, apparatus engineering

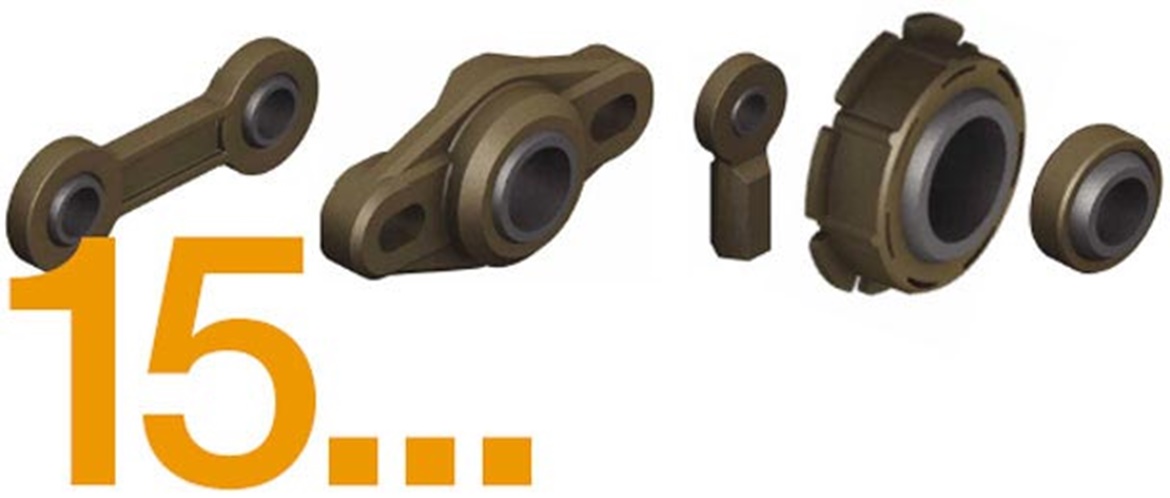

Following products deliverable ex stock (Ø 6, 8, and 10 mm):

igubal® 4hole flange bearings EFSM

igubal® rod ends with female thread EBR(L)M

igubal® rod ends with male thread EAR(L)M

igubal® double joint bearings EGZ(X)M

igubal® spherical bearings EGLM / EGFM

igubal® clevis joints GER(L)M

Further dimensions on demand.

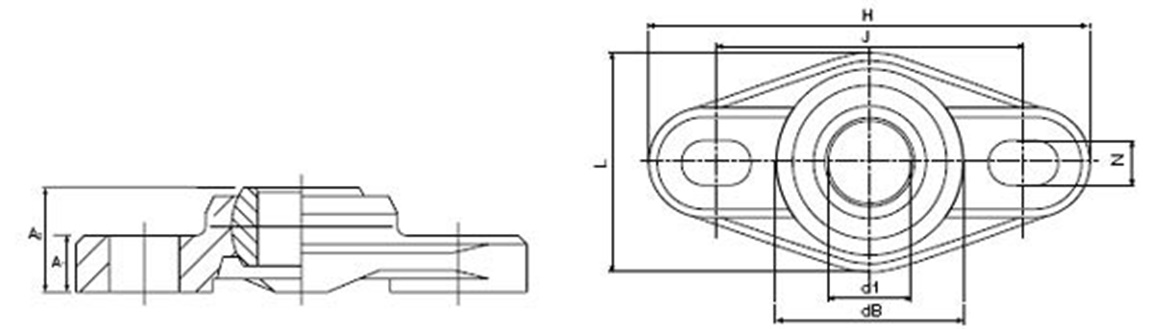

Example: EFOM

Part No.	d1	dB	H	L	J	A1	Ag	N	Max.
	E10				±0,1	Height of plate	Height total	Bore diameter	pivot angle
	[mm]	[mm]	[mm]	[mm]	[mm]				[°]
EFOM-06HT	6	14	33,8	16	24	4,5	8,5	3,2 x 5,5	27	Inquiry
EFOM-08HT	8	18	44,2	22	31	5,5	10,5	4,3 x 6,5	24	Inquiry
EFOM-10HT	10	22	52	26	36	6,5	12	5,3 x 8	24	Inquiry
