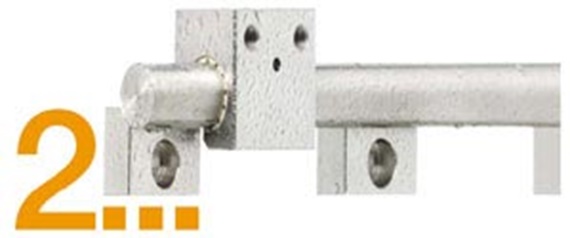

stainless steel guide V4A Ø20

3 x strong:

Highest chemical resistance

Highest corrosion resistance

Highest temperature resistance up to 250°C*

This linear guide was specifically designed for the filling and food industries. Resistant to PAA cleaning.

Guide made of solid stainless steel 316 Ti (1.4571) X6CrNiMoTi17-12-2

Glide bushings: iglidur® J or iglidur® X (250 °C)

Industries: Packaging, food and chemical industries as well as any underwater applications

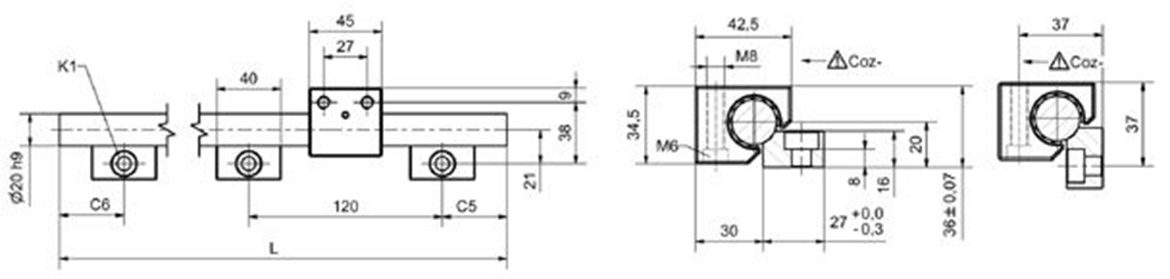

Part No.	Housing bearing	Weight	L	C5	C5	C6	C6	Housing bearing	K1
			max	min	max	min	max		for screw
	[Part No.]	[kg/m]	[mm]	[mm]	[mm]	[mm]	[mm]	[g]	DIN 912
WS-20-ES	WJUM-01-20-ES	3,37	4000	20	79,5	20	79,5	280	M8	Inquiry

Part No	Housing bearing	stat. load capacity			ly	lz	Wby	Wbz
		Coy	Coz+	Coz-
	[Art. Nr.]	[N]	[N]	[N]	[mm⁴]	[mm⁴]	[mm³]	[mm³]
WS-20-ES	WJUM-01-20-ES	11.000	11.000	1900	7854	7854	785	785	Inquiry

^{* in combination with slide elements in iglidur® X}
