drylin® SHT XY-Table

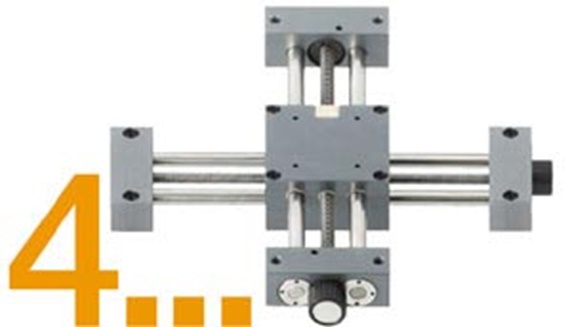

New: drylin® XY-Table – precise, aesthetic, lubrication free and ready-to-use

High precision, extreme rigidity

100 % lubrication-free and completely corrosion-free

Adjustable by trapezoidal screw TR 10 x 2

Accessories available (Handwheel, position indicator, ...)

Industries: Handling, packaging, process technology, machine building industries

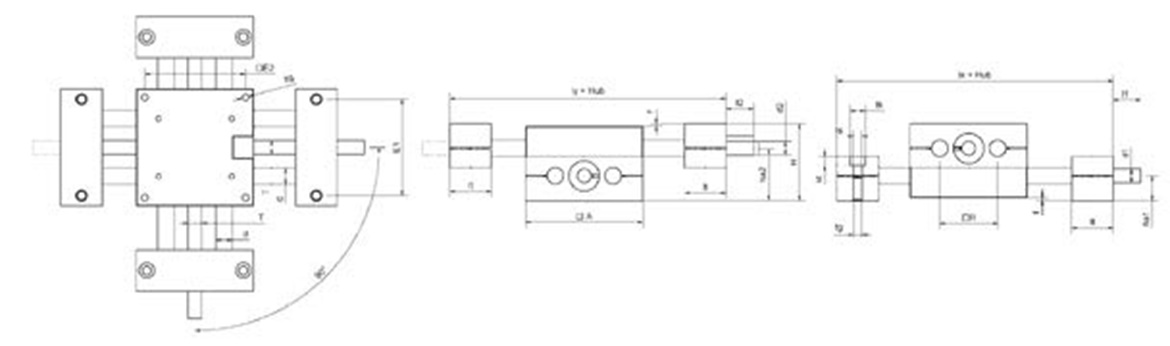

Part No. A H E1 E2 E3 Basic lenght Basic lenght R f lt tk ts tg kt
  -0,3   ±0,15 ±0,15 ±0,15         ±0,1
  [mm] [mm] [mm] [mm] [mm] lx [mm] ly [mm] [mm] [mm] [mm] [mm] [mm]   [mm]
SHT-XY-12 85 56 70 73 82 145 145 42 2 30 11 6,6 M8 M6,4  Inquiry

Part No. sg d T l1 d1 d1 l2 d2 d2 ha1 ha2 W
          Standard Alternativ   Standard Alternativ     ha2 - ha1
    [mm]   [mm]     [mm]     [mm] [mm] [mm]
SHT-XY-12 M6 12 TR10x2 17 TR10x2 6h9 17 TR10x2 6h9 18 38 20  Inquiry
