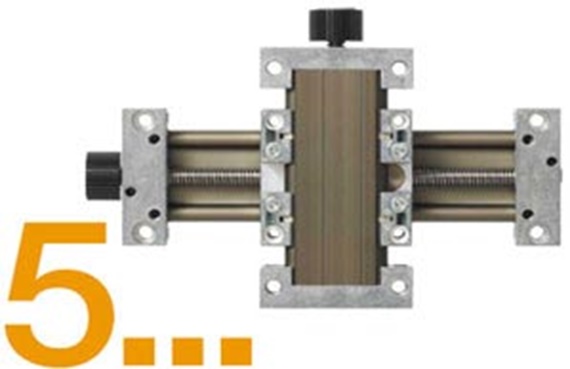

drylin® SLW-1040-XY

The successful linear slide table SLW is the basis for this XY-table version. A combination of two linear units for simple positioning tasks.

100 % lubrication-free

Trapezoidal screw TR 10x2 drive mechanism

Cost-saving and available ex stock

Industries: Handling, packaging, process technology, machine building industries

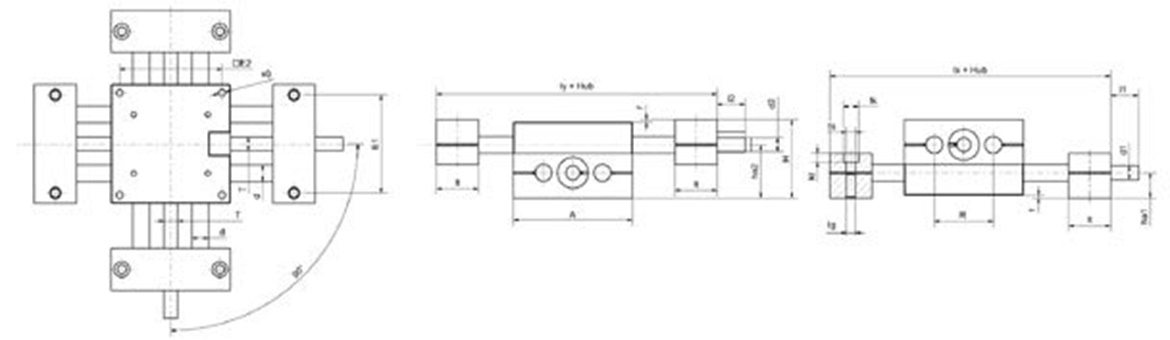

Part No.	A	H	E1	E2	Basic lenght	Basic lenght	lt	f	lt	tk	ts	tg	kt
	-0,3		±0,15	±0,15			±0,1		±0,1
	[mm]	[mm]	[mm]	[mm]	lx [mm]	ly [mm]	[mm]	[mm]	[mm]	[mm]	[mm]		[mm]
SLW-XY-1040	74	48	60	60	117	117	22	1,5	22	11	6,6	M8	6,4	Inquiry

Part No.	sg	d	T	l1	d1	d1	l2	d2	d2	ha1	ha2	W
					Standard	Alternativ		Standard	Alternativ			ha2-ha1
		[mm]		[mm]			[mm]			[mm]	[mm]	[mm]
SLW-XY-1040	M6	10	TR10x2	17	TR10x2	6h9	17	TR10x2	6h9	18	38	20	Inquiry
