drylin® TS-11-20

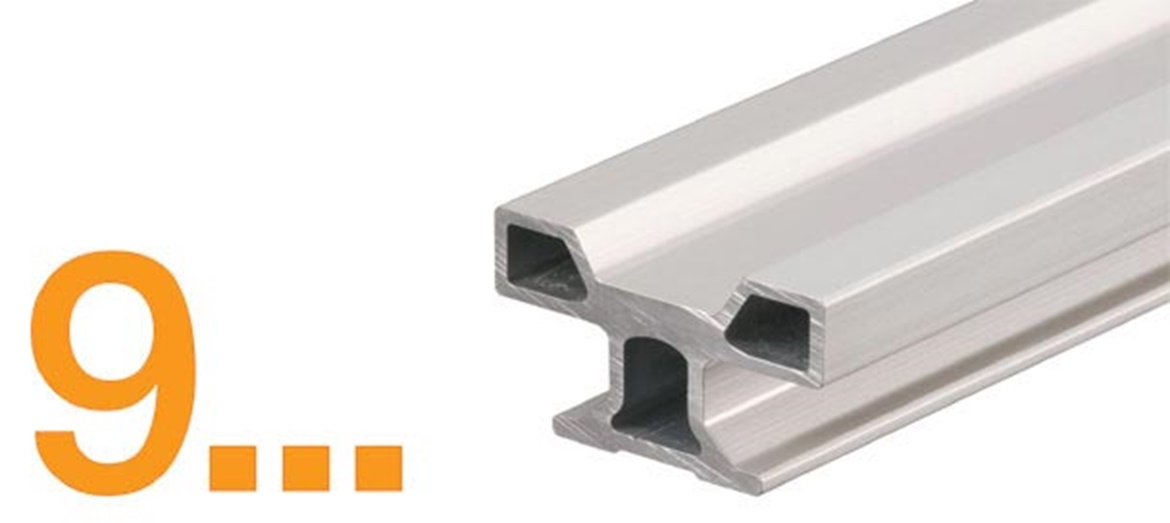

New: drylin® T rail with 49% less weight and 40% lower cost

Lower cost without loss of quality or lifetime – this is what some customers asked for.

The new guide rail drylin® T has:

49 % lower weight

40 % cost saving over TS-01-20

Clear anodized surfaces

Industries: Anywhere where the loads permit its use

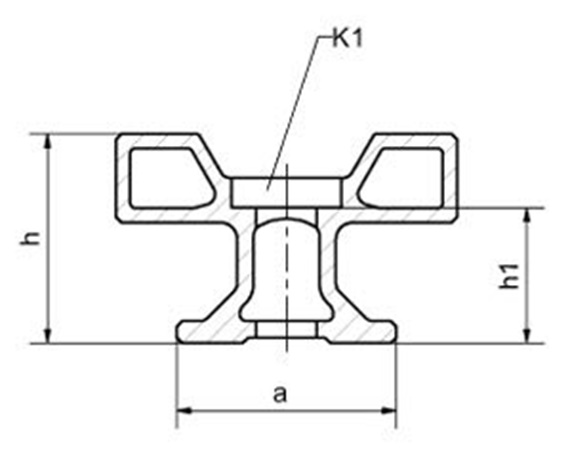

Part No. Weight L max. C4 ly lz h h1 K1

  [kg/m] [mm] [mm] [mm4] [mm4] [mm] [mm]
TS-11-20 0,5 4000 120 12.140 6360 19 12,3 M5

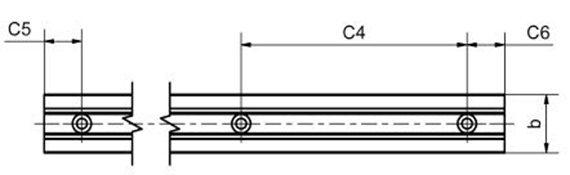

Part No. a b C4 C5 C5 C6 C6 Wby Wbz
(TS-11-20       min. max. min. max.
Continues) [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm3] [mm3]
  20 31 120 20 79,5 20 79,5 780 620  Inquiry

Fitting Linear guide carriages    Art.-Nr. TW-01-20, Art.-Nr. TWA-01-20 and TW-02-20
