drylin® WSQ-06-30

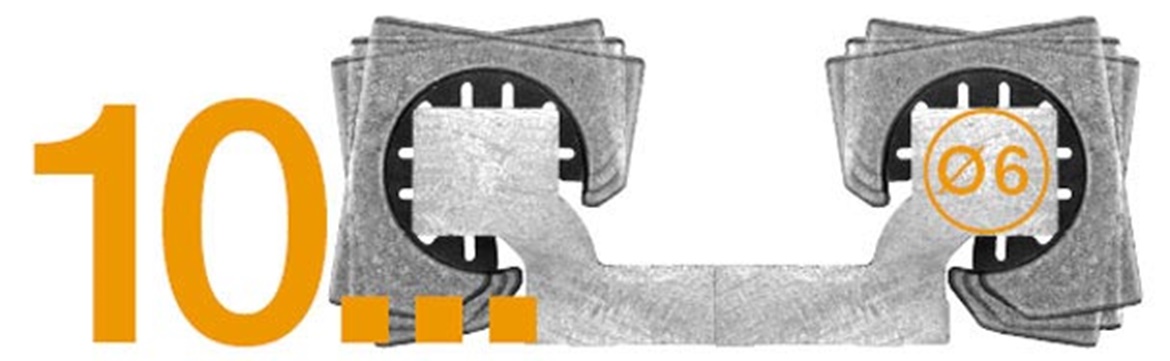

New: Very strong, quick assembly – drylin® W double rail in size 6 now available

A double-rail has been added to the smallest drylin® W line. drylin® W offers a low-profile design, light weight, lubrication free performance as well as fixed and floating glide blocks.

Avoid alignment errors

Reduce assembly time by up to 40%

Guide carriages available from stock

Hard anodized aluminium, up to 2 m rail length

Industries: Medicine, measuring technology, automation, machine-building

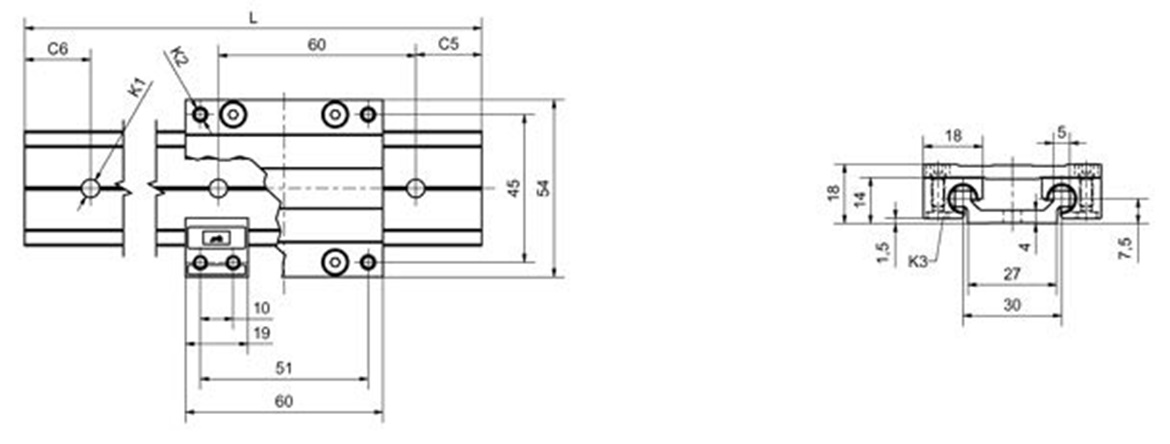

Part No. Part No. Floating     Rail Carriage L C5/C6 C5/C6 K1   Load
Rail Carriage bearing Direction       max min max DIN Coy Coz+ Coz-
    Clearance     [kg/m] [g] [mm] [mm] [mm] 912 [N] [N] [N]
WSQ-06-30 WJ200QM-01-06 - -   0,45 16 3000 20 49,5 M5 420 420 140  Inquiry
  WJ200QM-01-06 LLZ 0,5 z   0,45 16 3000 20 49,5 M5 420 420 140  Inquiry
  WJ200QM-01-06 LLY 0,5 y   0,45 16 3000 20 49,5 M5 420 420 140  Inquiry
