Storage without interruption of logistics is essential for fast supply chains. Customers do not want to wait unnecessarily for their goods and for manufacturers, on-time delivery is a decisive competitive advantage. The processes run largely automatically, especially in larger-scale intralogistics. In addition to industrial vehicles, lifting tables and palletisers, automated guided vehicles (AGVs) and storage and retrieval units autonomously move unit loads and packages. motion plastics support 24/7 operation because they are lubrication-free and therefore maintenance-free. In addition, our energy chains, cables, plain and linear bearings save weight and installation space, an important aspect especially in high-bay warehouses.

Benefits of igus products:

• Maintenance-free for 24/7 use
• Save installation space and weight
• Low noise and low vibration
• Easy assembly
• Fast delivery
• Service life calculation
• Complete systems or individual components from batch size 1

Energy chain with steel cable floor guide

• Energy, data, air and liquids in one system
• 4m/s speed, 80m travel
• 88% shorter assembly time compared to aluminium trough

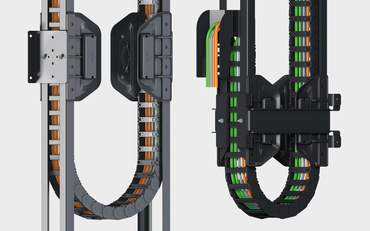

Vertical guide trough for smallest installation spaces

• The top alternative to busbar systems
• Very light - made of solid iglidur material
• Very safe –  no exposed electrical conductors
• Very cost-effective acquisition and installation

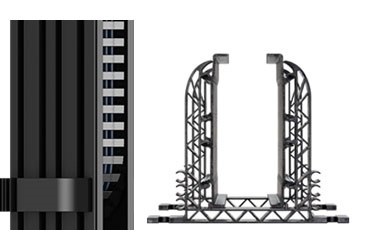

Vertical guide trough

• For hanging systems up to 50m
• Easy access for servicing
• Up to 80% trough and  save costs and weight

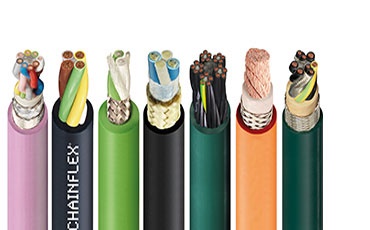

Cables for motion

• Developed for maximum load
• Suitable for very tight bend radii and cold and abrasive environments
• 36-month chainflex guarantee

Made to measure

• One connector module, instead of many individual connectors
• Up to 50% lighter than conventional rectangular connectors
• 100 plug inserts to choose from

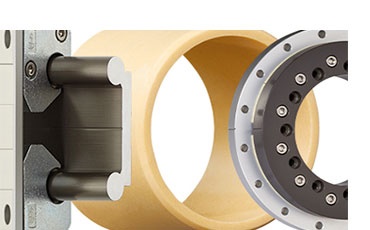

Lubrication-free bearing technology

Lubrication and maintenance-free:

• drylin linear guides
• iglidur plain bearings
• iglidur PRT slewing ring bearings

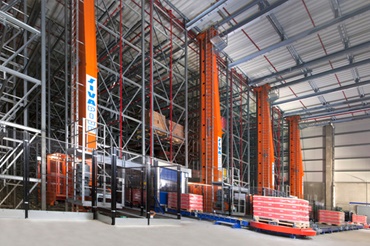

After a test phase, SIVAplan has started using the new guidelok system from igus in series production

The specialist for warehousing systems and material handling, SIVAplan GmbH & Co. KG, relies on energy supplies from igus, as these are not only lightweight but also save on installation time. SIVAplan purchases the guidelok slimline P energy supplies as readychain. This means that the e-chains are delivered ready to install with long-life chainflex cables. As a result, the great deal of work involved in pulling the cables into the e-chain and testing the finished component is no longer necessary.

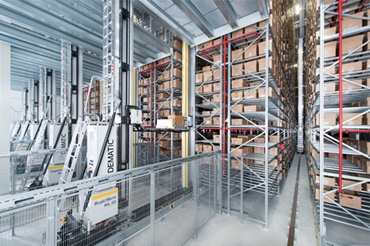

Vertical cable guidance at high speeds in DEMATIC storage and retrieval systems

DEMATIC is a global leader for automated logistics and uses guidelok guide troughs for the small part storage and retrieval unit (SRU), RapidStore ML20, for uninterrupted transfer of energy and data. For the deployment of the igus guide trough in this SRU, the main consideration is to provide secure, vertical cable guides operating at high speeds and great stroke heights: the system moves at speeds of up to 5 m/s reaching an installation height of up to 20 metres.

Brochure: igus® solutions for material flow, automated warehouses, logistics and material handling

Save time and money in the maintenance of your energy chain

Quickly and easily configure the right product and calculate its service life
