drylin® econ ready-to-install entry-level series


With the econ, igus® defines the cost-effective maintenance-free entry-level models of the drylin® linear axes. There are models in almost every product line and installation size, either with a lead screw or toothed belt. The econ series is characterised by cost-effective components produced via injection moulding, anodised aluminium profiles and a fast assembly. drylin® econ models are he perfect alternative to complex in-house solutions for simple adjustment tasks.

Would you like more information about drylin® econ or do you need an individual consultation? Our experts will be happy to get in touch with you.


Contact an expert

Order drylin® econ linear modules

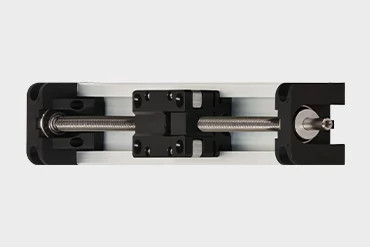

drylin® econ miniature module SLN – small and fast

econ

  • Slim, narrow design
  • Lead screw mounted on plain bearings with metric thread or dryspin® high helix thread
  • Feed rate of up to 25 mm per rotation

Buy now!

drylin® econ lead screw module SLTP

SLTP

  • Developed with 3D printing, produced cost-effectively thanks to injection moulding
  • Very fast assembly due to few components
  • Carriage with a lot of fastening options

Request a quote

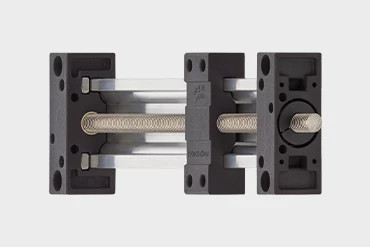

drylin® econ linear module SLWP – robust in 2 sizes

slwp

  • Flat and torsionally stable
  • Lead screw with self-locking trapezoidal or metric thread
  • Fast adjustment due to dryspin® high helix thread

Buy now!

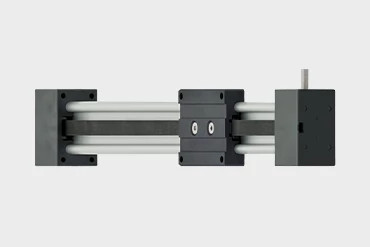

drylin® econ toothed belt axis ZLW – light and fast

zlw

  • Lightweight due to use of plastic and aluminium
  • Variable attachments
  • Individual stroke lengths and sizes

Buy now!

drylin® econ flat linear robot DLE-FG – for predefined surfaces

gantry

  • Linear robot based on econ toothed belt axes
  • For a workspace of 500 x 500 mm
  • Ready to connect with NEMA stepper motors

Buy now!

Back to drylin® linear drive overview page

drives overview

  • Not sure which drive system is best for you?
  • Click here to go to a full overview of all of the drylin® linear drive options available,

Find out more

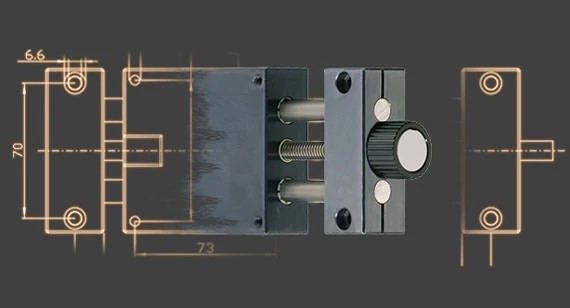

Configure custom lead screw linear system online

  • Customise your linear system in just a few steps
  • Optional configuration of an individual drive pin
  • Automatic generation of a 3D model of the linear system
  • Export of the linear system in many different 2D and 3D formats
  • 2D dimensional drawing of the module as a PDF
  • Download parts list as PDF file
  • Add to shopping cart and submit order or request a quotation online

Configure you drive system

Application examples





Frequently asked questions about the drylin® econ range

What is a drylin® econ linear system?

The econ drive system is a cost-effective module designed as an alternative to complicated in-house solutions.

What would you use a drylin® econ system for?

These modules are ideal for simple adjustment tasks.

Why would you use a drylin® econ system?

If you want a lightweight, cost-effective and lubrication-free system then this is ideal for you.
